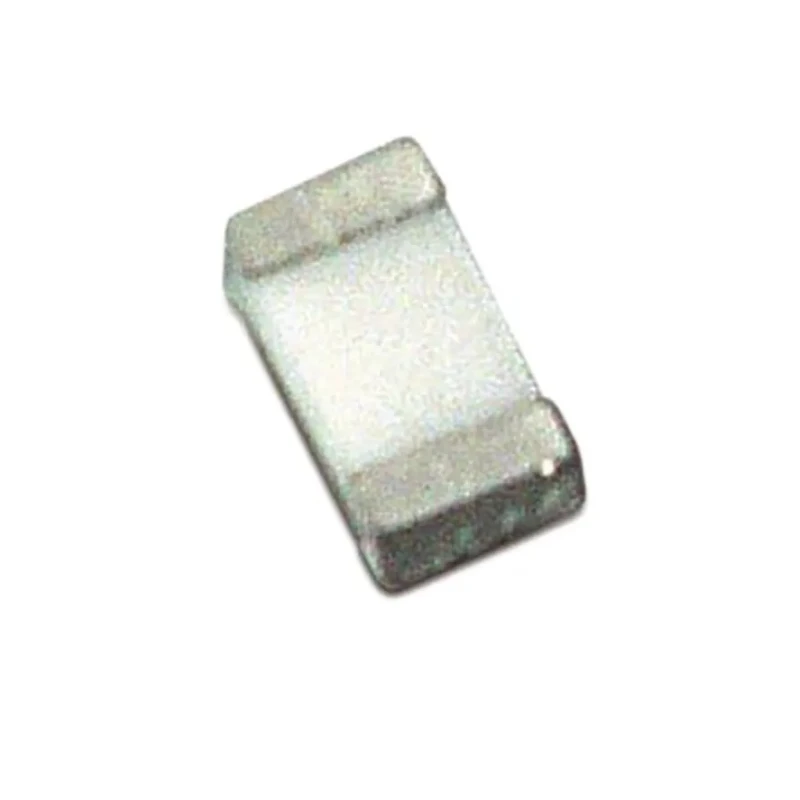

Wurth Elektronik 0402 Shielded Surface Mount Inductor Thin Film Core 1.2 nH ±0.1 nH Tolerance 700 mA Idc 744901012

Wurth Elektronik 744901012, a 0402 Shielded Surface Mount Inductor with a thin film core, offers precise, low-value inductance of 1.2 nH ±0.1 nH tolerance, designed for high frequency and compact circuit applications.

This component supports a maximum DC current rating of 700 mA while maintaining low DC resistance (100 mΩ), which ensures efficient energy use in power-sensitive designs.

The compact 0402 package measuring 1 mm length, 0.5 mm depth, and 0.32 mm height suits modern high-density PCB layouts with surface mount termination style optimizing soldering and mechanical stability.

Its shielded construction minimizes electromagnetic interference and enhances signal integrity, critical for RF and communication modules such as pagers, mobile phones, wireless LAN, and GPS units.

Thermal performance is robust with an operating temperature range from -40°C to 125°C, making it suitable for industrial and commercial environments. Additionally, the inductor complies with RoHS and REACH standards, supporting environmentally responsible manufacturing.

This inductor features a shielded design with a thin film core construction. Suitable for maximum DC current of 700 mA ensuring reliable performance. Measurement package case is 0402 with surface mount termination style.

Operates within temperature range of -40°C to 125°C for versatility. Low maximum DC resistance of 100 mΩ reduces power loss in circuits. High self-resonant frequency of 12 GHz ensures stability in RF applications. Ideal for use in wireless communication devices, GPS, and RF transceiver modules.

Compliant with RoHS and REACH standards for environmental safety. Packaged in tape and reel format for efficient automated assembly.

This Surface Mount Inductor is widely applicable in electronics manufacturing, especially in telecommunications, consumer electronics, and instrumentation sectors, where precision RF components are needed.
