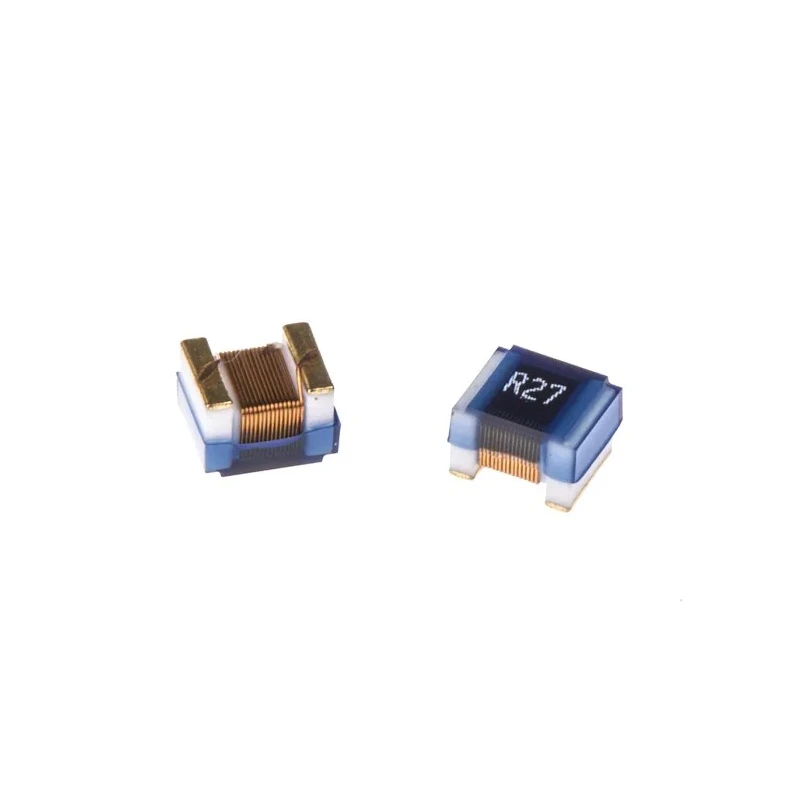

Wurth Elektronik WE-KI 1008A Shielded Wirewound Surface Mount Inductor with Ceramic Core 0.27 μH ±5% 600 mA 744762227A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.6mm |
| Length | 2.5mm |
| Model | 744762227A |
| Depth | 2mm |
| Packaging | Tape & Reel |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 0.27μH |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 1008A |
| Maximum DC Current | 600mA |
| Pin Count | 2 |
| Maximum DC Resistance | 750mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 650MHz |
| Minimum Quality Factor | 45 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Wirewound inductor designed for high-frequency applications.
- Features a ceramic core ensuring thermal stability and performance.
- Shielded construction reduces electromagnetic interference.
- Boasts a high-quality factor of 45 minimum for efficient operation.
- Operates reliably between -40°C and 125°C temperatures.
- Compact 1008A package with dimensions 2.5 mm length, 1.6 mm height, and 2 mm depth.
- Reflow soldering compatible with surface mount technology.
- High self-resonant frequency of 650 MHz for RF and wireless applications.
Product Description
Wurth Elektronik model 744762227A is a WE-KI Series shielded wirewound surface mount inductor specialized for demanding electronic applications requiring high-frequency operation and stability. Featuring a 0.27 μH inductance with a tolerance of ±5%, this component supports a maximum DC current of 600 mA, making it ideal for compact circuit designs.
Constructed with a ceramic core, the inductor delivers excellent temperature stability and high quality factor of at least 45, ensuring minimal energy loss in RF, Bluetooth, wireless LAN, and other communication devices. Its shielding effectively minimizes electromagnetic interference, thereby enhancing signal integrity.
The inductor is housed in a 1008A package measuring 2.5 mm in length, 1.6 mm in height, and 2 mm in depth, suitable for surface mount assembly processes including reflow soldering. It complies with automotive standard AEC-Q200, reflecting its robustness for automotive circuit applications.
Additional features include a maximum self-resonant frequency of 650 MHz and a maximum DC resistance of 750 mΩ. It is designed with two pins for surface mounting. This component is RoHS and REACH compliant, ensuring environmental safety and sustainability.
Manufactured in Malaysia, the Wurth Elektronik 744762227A inductor is essential for industrial electronics, automotive electronics, wireless communications, and RF applications demanding compact, efficient, and reliable inductors.
Wirewound design optimized for high frequency applications. Ceramic core delivers high thermal stability. Shielded to reduce electromagnetic interference. Low DC resistance reduces power loss. Compliant with AEC-Q200 automotive standard.
Suitable for reflow solder surface mount processes. Compact 1008A package dimensions for space-saving designs. High self-resonant frequency supports RF circuits. RoHS and REACH compliant materials. Manufactured in Malaysia with high-quality standards.
Explore the comprehensive range of Surface Mount Inductors available at EnvMart for industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 0.27 μH with a tolerance of ±5%.
It supports a maximum DC current of 600 mA.
The dimensions of the package are 2.5 mm in length, 1.6 mm in height, and 2 mm in depth.
The maximum operating temperature is 125°C.
It operates reliably in temperatures as low as -40°C.
The maximum self-resonant frequency is 650 MHz, suitable for RF applications.
It features a ceramic core and is constructed as a wirewound inductor.
Yes, it is RoHS and REACH compliant and meets the automotive standard AEC-Q200.
It has a surface mount termination style, designed for easy assembly.
It boasts a minimum quality factor of 45, which enhances its efficiency.
It is packaged in tape and reel format, suitable for automated assembly processes.
This model has two pins for surface mounting.
