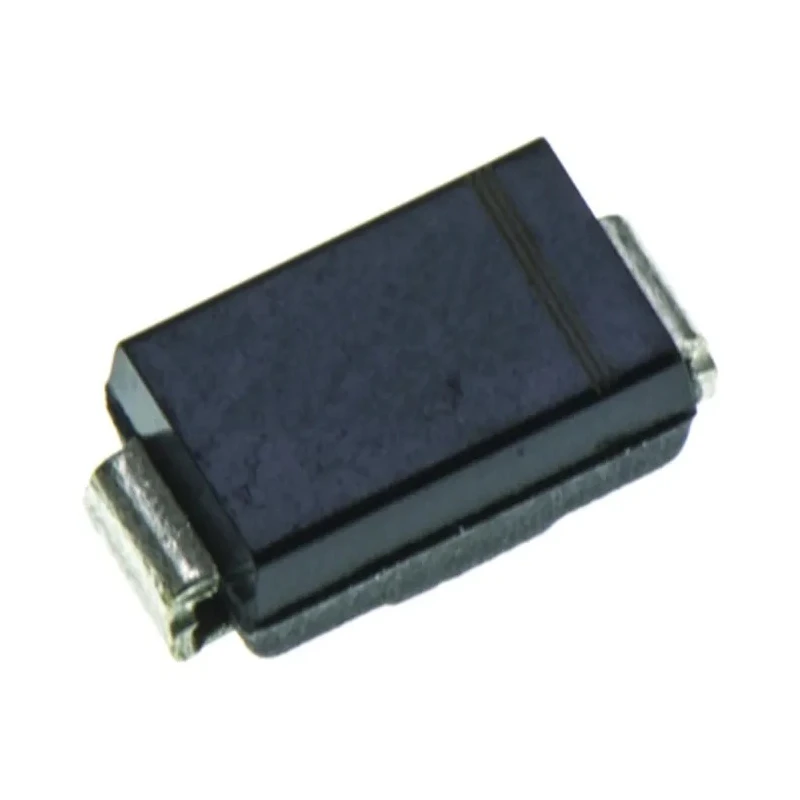

STMicroelectronics 100 V 2 A Schottky Diode Surface Mount DO-214AC Package STPS2H100AY

STMicroelectronics STPS2H100AY is a robust Schottky diode designed for high-efficiency rectification in electronic circuits. This diode supports a maximum continuous forward current of 2 amperes and can withstand peak reverse repetitive voltage of 100 volts, making it suitable for various power management applications.

The diode comes in a space-saving DO-214AC package ideal for surface mounting, with dimensions 4.6 mm length, 2.9 mm width, and 2.45 mm height. Its low forward voltage drop of 0.6 volts improves overall power efficiency, reducing heat dissipation in the circuit.

Operating over a wide temperature range from -40°C to 175°C, the STPS2H100AY is suitable for use in industrial, automotive, and consumer electronic applications, where reliability under harsh conditions is critical.

It features a peak non-repetitive forward surge current of 75 amperes to handle transient surges, combined with a low peak reverse current leakage of 1 mA, effectively limiting power losses.

This Schottky diode's single configuration and 2-pin design make it easy to integrate into power supplies, solar inverters, and voltage clamping circuits. It is a vital component in semiconductor discrete device portfolios for efficient power conversion and protection.

This diode supports a maximum continuous forward current of 2 amperes. It features a peak reverse repetitive voltage of 100 volts ensuring high voltage tolerance. The maximum forward voltage drop is 0.6 volts, enhancing energy efficiency.

Operating temperature ranges from -40°C up to 175°C, suitable for harsh environments. Compact DO-214AC package with dimensions 4.6 mm length, 2.9 mm width, and 2.45 mm height for surface mounting. Peak non-repetitive forward surge current capability of 75 amperes for transient conditions.

Low peak reverse current of 1 mA minimizes leakage and power loss. Single diode configuration with 2 pins optimized for power electronics applications.

This product fits into categories such as Electronics & Electricals, Semiconductor, and Schottky Diodes & Rectifiers, widely used in industrial electronics, automotive electronics, power supply design, and renewable energy systems.
