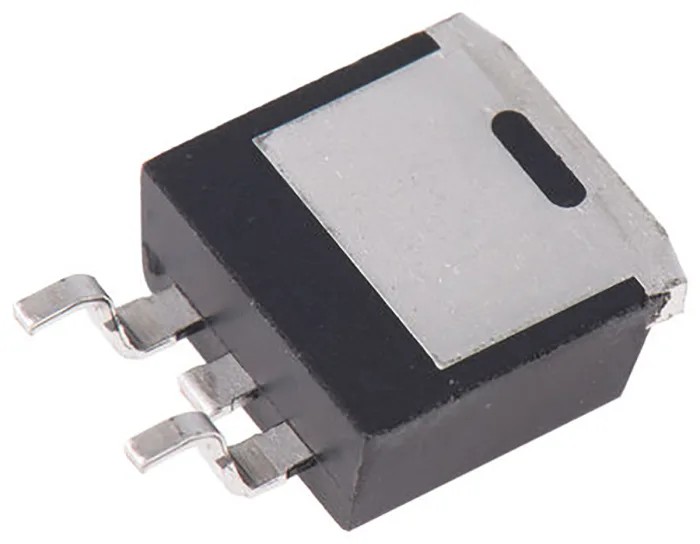

STMicroelectronics Schottky Barrier Diode 100 V 40 A 3-Pin TO-263 Surface Mount STPS41H100CG-TR
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.35mm |
| Length | 10.4mm |
| Model | STPS41H100CG-TR |
| Width | 4.6mm |
| Mount Type | Surface |
| Series | STPS41H100C |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 900mV |
| - Capacitance | 45 pF |
| onsemi 200V 40A, Dual Schottky Diode, 3-Pin D2PAK NTSB40200CTGBrand | ON Semiconductor |
Key Features
- Surface mount device in TO-263 package ensures easy PCB integration.
- Maximum forward voltage drop of 900mV enables efficient power rectification.
- Capable of withstanding peak non-repetitive forward surge current of 220A for transient conditions.
- Operates reliably over a temperature range from -65°C to 175°C.
- Common cathode diode configuration with 3 pins for standard applications.
- Low leakage current and negligible switching losses improve performance.
- Insulated ISOTOP package rated for 2500 VRMS insulation voltage and low 45 pF capacitance.
- Manufactured in China ensuring quality standards compliance.
Product Description
STMicroelectronics STPS41H100CG-TR is a high voltage Schottky barrier diode tailored for secondary rectification in high frequency switch mode power supplies. This surface mount device features a TO-263 (D2PAK) package with three pins, delivering a continuous forward current rating of 40A and a peak reverse voltage rating of 100V.
The diode offers excellent trade-offs between leakage current and forward voltage drop, lowering power dissipation and improving efficiency in power management circuits. Its maximum forward voltage of 900mV and peak surge current capability of 220A enable handling of transient surges and high load conditions.
Designed for robust operation, it supports a wide temperature range from -65°C to 175°C. The common cathode configuration allows ease of integration in bridge rectifiers and power supply modules. The insulated ISOTOP package provides electrical isolation rated to 2500 VRMS, with a low package capacitance of 45 pF, minimizing unwanted electrical interference.
This component is ideal for use in industrial electronics, automotive power supplies, renewable energy systems, and communication equipment where reliable and efficient rectification is critical. Its surface mount TO-263 package form factor offers compactness suited to modern PCB designs.
The diode is manufactured in China adhering to quality manufacturing standards, although it does not carry specific certifications or automotive approvals. Surface mount device with TO-263 insulated package. 40A continuous forward current and 100V peak reverse voltage.
Low leakage current and negligible switching losses. Wide operating temperature range from -65°C to 175°C. Peak surge forward current capability of 220A. Common cathode configuration with 3 pins. Insulated package rated for 2500 VRMS isolation voltage.
Low package capacitance of 45 pF minimizes interference. Explore a wide range of semiconductor components including Schottky Diodes and rectifiers on EnvMart for your industrial, automotive, and electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the STPS41H100CG-TR is 40A.
This model has a peak reverse voltage rating of 100V.
The maximum forward voltage drop for the STPS41H100CG-TR is 900mV.
It can withstand a peak non-repetitive forward surge current of 220A.
The diode operates reliably over a temperature range from -65°C to 175°C.
The STPS41H100CG-TR is packaged in a TO-263 (D2PAK) surface mount format.
This model has a common cathode configuration with 3 pins.
The diode has a low capacitance of 45 pF, which helps minimize unwanted electrical interference.
It is suitable for use in industrial electronics, automotive power supplies, renewable energy systems, and communication equipment.
The insulated ISOTOP package is rated for 2500 VRMS insulation voltage.
The peak reverse current for the STPS41H100CG-TR is 10mA.
This diode is manufactured in China, adhering to quality manufacturing standards.
