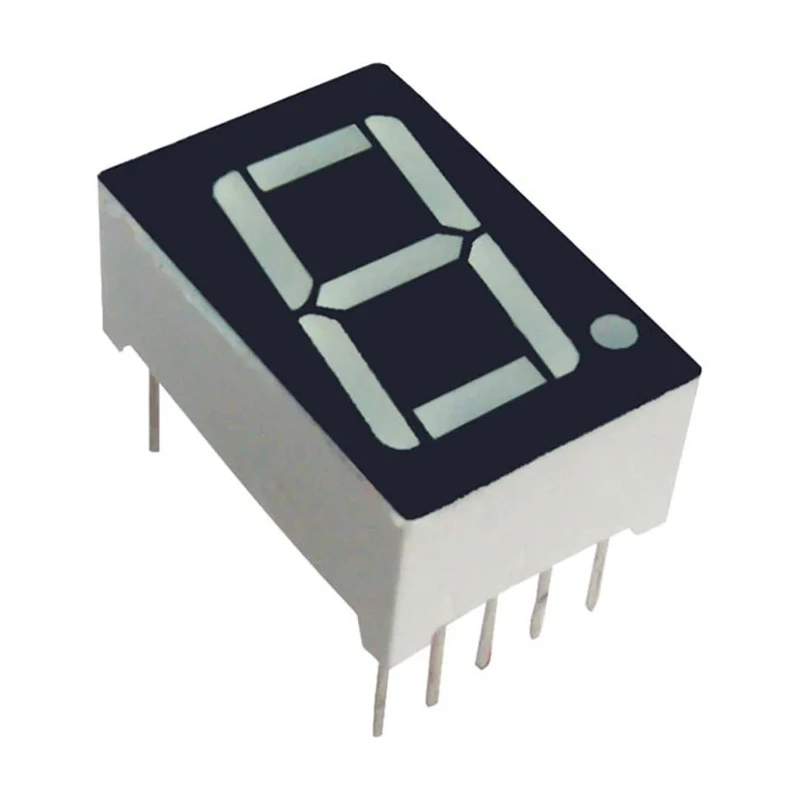

Kingbright 1 Digit 7 Segment LED Display Cathode Yellow 120mcd Right Side Orientation 12.7mm SC05-11SYKWA
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | SC05-11SYKWA |
| Mount Type | Through Hole |
| Series | SC05 |
| Character height | 12.7mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 19mm |
| External Depth | 12.7mm |
| External Height | 8mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 120mcd |
| Standards/Approvals | CIE127-2007, RoHS |
| LED Colour | Yellow |
| Dominant Wavelength | 590nm |
| Colour of Face | Grey |
| Forward Voltage | 2.5V |
| Forward Current | 175mA |
| Number of Characters | 1 |
| Character Width | 7.3mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- This LED display features a yellow LED color with a dominant wavelength of 590nm.
- The character width is 7.3mm and height is 12.7mm with a grey face and white segments for excellent visibility.
- The display has a forward voltage of 2.5V and forward current rating of 175mA.
- Operating temperature ranges from -40°C to 85°C, ensuring reliable performance in harsh environments.
- It is mechanically rugged, RoHS compliant, and categorized for luminous intensity for consistent brightness.
- The product is designed for easy mounting on PCB boards or sockets via through-hole mounting.
- It conforms to standards CIE127-2007 and is part of the SC05 series for consistent quality.
Product Description
Kingbright SC05-11SYKWA 1 Digit 7 Segment LED Display Cathode Yellow is a single character display with a character height of 12.7mm designed for electronic and industrial display applications. It provides clear numeric output with a right side decimal orientation, suitable for precision instrumentation and control panels.
The LED color is yellow with a dominant wavelength of 590nm and a luminous intensity rated at 120mcd, delivering excellent visual clarity and brightness. Its grey face and white segments enhance contrast and readability in various lighting conditions.
The device operates at a forward voltage of 2.5V and can handle a forward current of 175mA, balancing power consumption and brightness efficiency. The operating temperature spans from -40°C to 85°C, making it fit for use in demanding environments ranging from industrial machinery to laboratory instruments.
This model features a through-hole mount type for secure installation on PCBs or sockets, allowing for easy integration into existing electronic designs. Its mechanical robustness protects it from handling and operational stresses. Additionally, the display meets RoHS compliance and adheres to CIE127-2007 standards, ensuring it meets environmental and quality benchmarks.
This LED display ensures reliable digit representation with excellent brightness and contrast. Mechanical durability and high luminous intensity categorize it as a dependable component for electronic displays. Compatibility with through-hole mounting simplifies assembly and maintenance.
Wide operating temperature range enhances adaptability in industrial and commercial applications. Standard adherence guarantees quality consistency across production batches.
Industrially, it is suitable for use in electronic instrumentation, automotive dashboards, HVAC display units, telecommunications equipment, and other embedded systems requiring precise and visible numeric displays.
Explore more LED Display modules and electronic components at EnvMart to match your specialized application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this model is rated at 120mcd, providing excellent visual clarity and brightness.
It operates at a forward voltage of 2.5V and has a forward current rating of 175mA.
The external dimensions are 19mm in width, 12.7mm in height, and 8mm in depth.
This unit can operate within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
It features a through-hole mount type for secure installation on PCBs or sockets.
It meets RoHS compliance and adheres to the CIE127-2007 standards.
The LED color is yellow, with a dominant wavelength of 590nm.
This model has a total of 7 segments for displaying numeric characters.
The character height is 12.7mm and the character width is 7.3mm.
It is suitable for electronic instrumentation, automotive dashboards, HVAC display units, and telecommunications equipment.
The power dissipation rating for this model is 75mW.
The face of this display is grey, enhancing contrast and readability.
