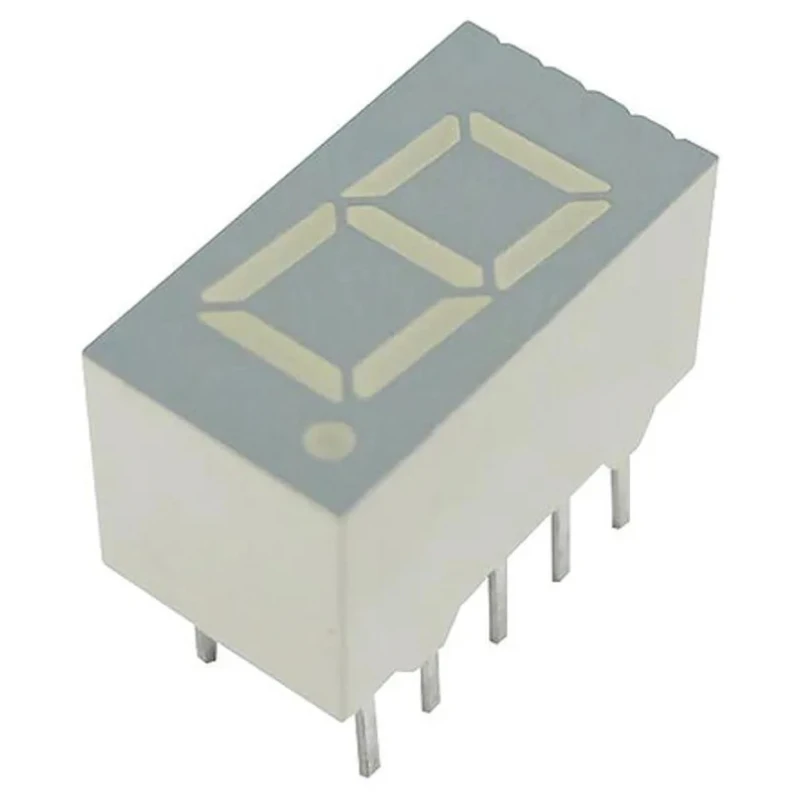

Kingbright 1 Digit 7 Segment LED Display Cathode Green 11mcd Right Side 9.1mm SC36-11CGKWA
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | SC36-11CGKWA |
| Mount Type | Through Hole |
| Series | SC36 |
| Character height | 9.1mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 7.5mm |
| External Depth | 14mm |
| External Height | 8.5mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 11mcd |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Colour of Face | Grey |
| Forward Voltage | 2.5V |
| Forward Current | 150mA |
| Number of Characters | 1 |
| Character Width | 4.8mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- Single digit display with 7 segments for clear numeric indication.
- Green LED color with a dominant wavelength of 570 nm.
- Character height of 9.1 mm and width of 4.8 mm for easy visibility.
- Through hole mount type with cathode common connection.
- Operating temperature range from -40°C to 85°C for diverse environments.
- Low power dissipation of 75mW and forward voltage of 2.5V.
- Designed with a grey face and white segments for excellent contrast.
- High forward current rating of 150 mA ensuring brightness.
Product Description
Kingbright SC36-11CGKWA is a 1 digit 7 segment LED display designed for industrial and electronic applications requiring clear numeric displays. It features a green cathode LED color with a luminous intensity of 11 mcd and right side decimal orientation for versatile display options.
The display offers a character height of 9.1 mm and width of 4.8 mm, making it suitable for compact application boards. The grey face with white segments enhances on/off contrast, ensuring excellent visibility in various lighting conditions.
Its through hole mount type and cathode common connection facilitate easy installation on printed circuit boards or sockets. The device is rated for operation in a temperature range from -40°C to 85°C, allowing it to perform reliably in harsh industrial environments.
Power dissipation is limited to 75mW with a forward voltage of 2.5V and forward current of 150mA, promoting efficient low current operation. The robust mechanical construction makes it resistant to vibration and shocks common in automation systems.
Applications for this LED display include use in instrumentation panels, consumer electronics, manufacturing equipment, and other digital readout requirements in industrial automation systems, laboratory devices, and HVAC controls.
Single digit display with 7 segments for clear numeric indication. Green LED color with a dominant wavelength of 570 nm. Character height of 9.1 mm and width of 4.8 mm for easy visibility. Through hole mount type with cathode common connection.
Operating temperature range from -40°C to 85°C for diverse environments. Low power dissipation of 75mW and forward voltage of 2.5V. Designed with a grey face and white segments for excellent contrast. High forward current rating of 150 mA ensuring brightness.
RoHS compliant and mechanically rugged design for industrial use.
This Kingbright 7 segment LED Display offers a reliable and efficient solution for numeric display needs in electronics manufacturing and industrial automation, meeting quality standards and environmental regulations.
Explore more display components and LED modules at EnvMart for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the Kingbright SC36-11CGKWA is 11 mcd.
This model features a character height of 9.1 mm and a character width of 4.8 mm.
The operating temperature range for this display is from -40°C to 85°C.
The forward voltage is 2.5V and the forward current rating is 150 mA.
This model uses a through hole mount type for installation.
The LED color is green with a dominant wavelength of 570 nm.
The power dissipation for this display is limited to 75 mW.
It features a cathode common connection.
The external dimensions are 7.5 mm in width, 14 mm in depth, and 8.5 mm in height.
Yes, it is RoHS compliant.
It is suitable for applications in instrumentation panels, consumer electronics, and industrial automation systems.
The display has a grey face with white segments for enhanced contrast.
