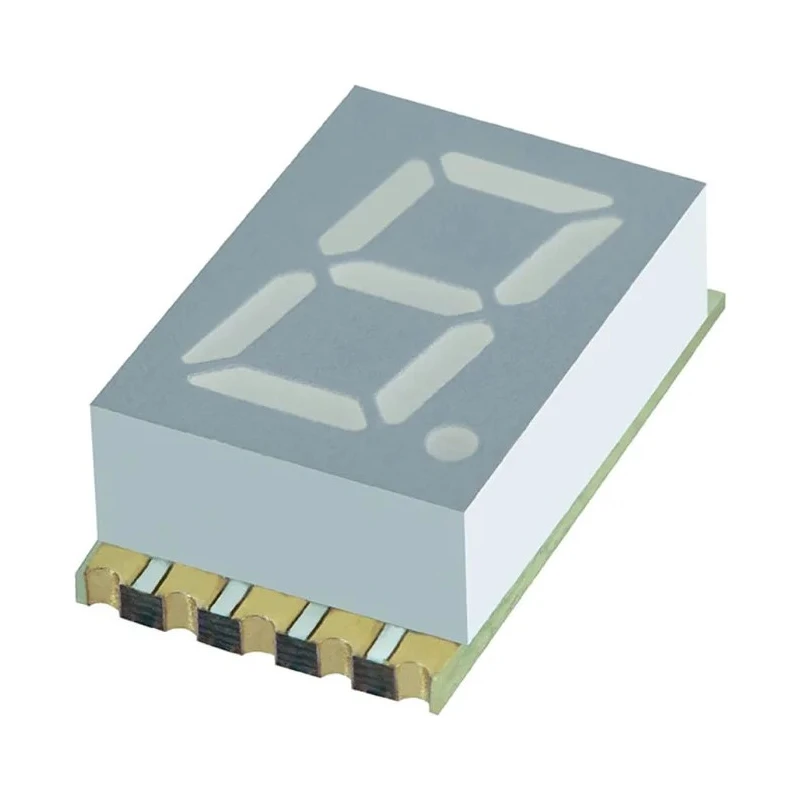

Kingbright 1 Digit 7 Segment LED Display Green 10mm Anode Surface Mount KCSA39-123
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSA39-123 |
| Mount Type | Surface |
| Series | KCSA39 |
| Character height | 10mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 15mm |
| External Depth | 9.8mm |
| External Height | 3.8mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 19mcd |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 6.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- This 7 segment LED display features one character with seven segments for clear numerical display.
- It outputs green light at a dominant wavelength of 570nm with a luminous intensity of 19mcd.
- The display has a character height of 10mm and character width of 6.2mm, suitable for compact PCB designs.
- It uses a common anode connection and is compliant with RoHS standards for environmental safety.
- The unit operates with a forward voltage of 2.1V and a forward current of 30mA.
- Its surface mount design allows easy PCB integration with a grey face and white segments for excellent readability.
- The decimal point is oriented on the right side, enabling precise numeric indication.
- Operating temperature ranges from -40°C to 85°C ensuring suitability for various industrial environments.
Product Description
Kingbright KCSA39-123 is a 1 digit 7 segment LED display designed for high visibility in electronic displays and instrumentation. It features bright green LED segments with a luminous intensity of 19mcd, making it ideal for clear numeric readout in industrial, laboratory, and instrumentation applications.
The display is designed for surface mounting on printed circuit boards, featuring a compact form factor of 15mm width, 9.8mm depth, and 3.8mm height. Its grey face with white segments provides excellent character contrast and readability in a wide range of lighting conditions.
This LED display utilizes a common anode configuration with a forward voltage of 2.1V and forward current of 30mA, optimized for energy-efficient operation. The decimal point is located on the right side, providing precision in numeric representation.
Rated for operation from -40°C to 85°C, this LED display is robust and reliable for use in industrial control systems, HVAC equipment, manufacturing instrumentation, and electronic devices requiring single-digit numeric display.
One character with seven green LED segments. Surface mount design for PCB integration. 19mcd luminous intensity for clear visibility. Right side decimal orientation for precise indication. Wide operating temperature range of -40°C to 85°C.
RoHS compliant for environmental safety. Compact dimensions for space efficient mounting.
This 7 segment LED display belongs to the Kingbright KCSA39 series, known for mechanical ruggedness and low current operation. It is a preferred choice in electronics manufacturing, industrial automation, and communications equipment. Explore more LED Display products from Kingbright and related electronics components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this model is 19mcd, providing clear visibility for numeric readouts.
It operates with a forward voltage of 2.1V and a forward current of 30mA.
The external dimensions are 15mm in width, 9.8mm in depth, and 3.8mm in height.
It can operate within a temperature range of -40°C to 85°C, making it suitable for various industrial environments.
This model utilizes a common anode connection for its operation.
The character height is 10mm and the character width is 6.2mm, designed for compact PCB designs.
Yes, this LED display is compliant with RoHS standards for environmental safety.
The dominant wavelength of the green light is 570nm.
The decimal point is oriented on the right side, allowing for precise numeric indication.
This model features a surface mount design, facilitating easy integration onto printed circuit boards.
It belongs to the KCSA39 series, known for its mechanical ruggedness and low current operation.
This display is suitable for use in industrial control systems, HVAC equipment, manufacturing instrumentation, and electronic devices requiring single-digit numeric display.
