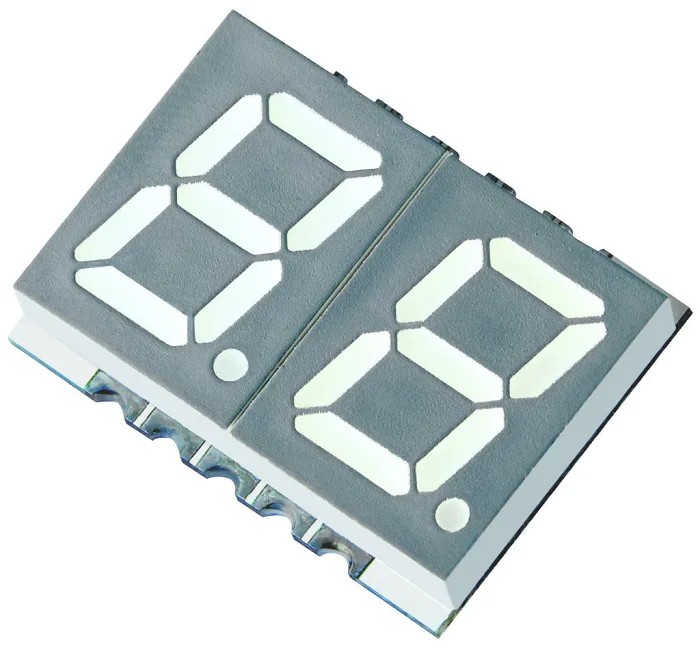

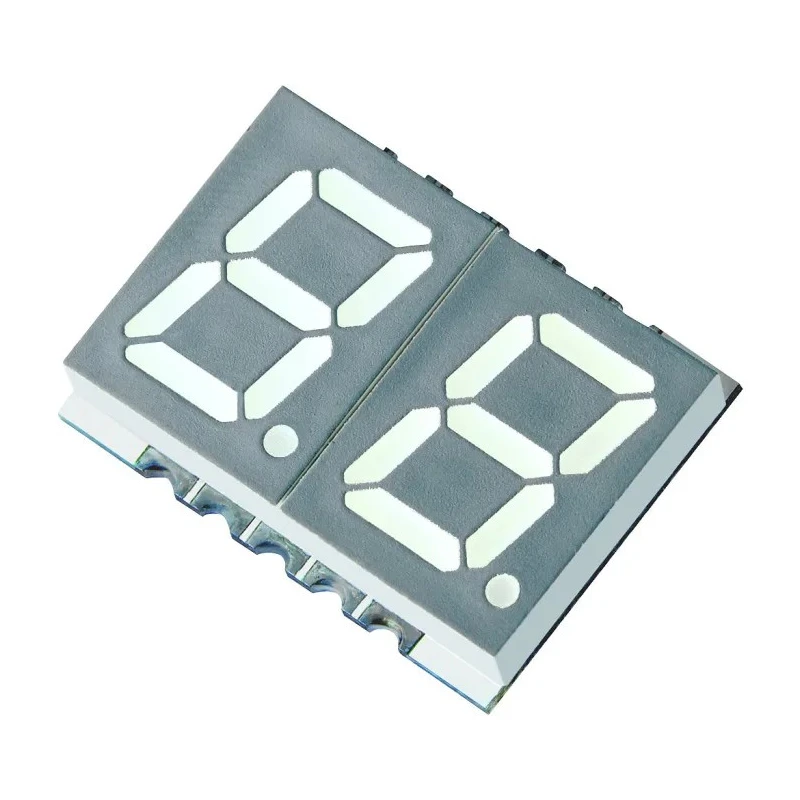

Kingbright 2 Digit 7 Segment LED Display Anode Red 36mcd Right Side 10mm KCDA39-105
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCDA39-105 |
| Mount Type | Surface |
| Series | KCDA39 |
| Character height | 10mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 19.6mm |
| External Depth | 15mm |
| External Height | 3.8mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 36mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 2 |
| Character Width | 6.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- The display features 2 characters with 7 segments each for versatile numeric display.
- Red LED color with a dominant wavelength of 630nm provides bright illumination.
- Character dimensions measure 6.2mm width and 10mm height for clear readability.
- The common connection is Anode type suitable for surface mounting on PCBs.
- Luminous intensity is rated at 36mcd ensuring excellent on/off contrast.
- Operating temperature range from -40°C to 85°C supports various environments.
- Forward voltage is nominally 2V with forward current of 30mA optimized for low power consumption.
- Grey face with white segments enhances character appearance and aesthetics.
Product Description
Kingbright KCDA39-105 is a dual-digit 7 segment LED display designed for high visibility numeric display uses. It features a red LED color with a luminous intensity of 36mcd and operates reliably over a temperature range of -40°C to 85°C. The characters measure 6.2mm in width and 10mm in height, making it suitable for compact electronic displays requiring clear numeric information.
This LED display uses a common Anode connection and is designed for surface mounting on printed circuit boards (PCBs), simplifying assembly in electronic products. The grey face with white segments provides excellent character appearance and contrast, facilitating easy reading even in challenging lighting conditions.
Its power dissipation is 75mW with a forward voltage of 2V and forward current of 30mA, reflecting an energy-efficient design. The display is mechanically rugged and complies with RoHS environmental standards.
KCDA39-105 is ideal for applications in industrial automation, control systems, instrumentation, and other electronic devices requiring numeric display output. The decimal point is oriented on the right side, enhancing readability for decimal and fractional values.
The 2 character, 7 segment LED display supports numeric display of digits 0-9 and select characters. Its luminous intensity of 36mcd ensures strong visibility in various lighting environments. Operating temperature range from -40°C to +85°C enables usage in industrial and outdoor settings.
Surface mount design facilitates ease of integration into electronic assemblies. RoHS compliant for environmentally responsible manufacturing and disposal.
For detailed technical data and integration guidelines, refer to Kingbright product documentation. This display module supports a broad range of electronic applications enhancing device user interfaces with bright, clear numeric readouts.
Explore more LED Displays and components in the Electronics & Electricals category on EnvMart for diverse technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the KCDA39-105 display is rated at 36mcd, ensuring strong visibility in various lighting environments.
This model operates reliably over a temperature range from -40°C to 85°C, making it suitable for various environments.
It uses a common Anode connection, which is suitable for surface mounting on printed circuit boards (PCBs).
The characters measure 6.2mm in width and 10mm in height, providing clear readability.
The forward voltage is nominally 2V with a forward current of 30mA, optimized for low power consumption.
The power dissipation for this display is 75mW, reflecting an energy-efficient design.
The LED color is red with a dominant wavelength of 630nm, providing bright illumination.
The decimal point is oriented on the right side, enhancing readability for decimal and fractional values.
This display is RoHS compliant, ensuring environmentally responsible manufacturing and disposal.
The external dimensions are 19.6mm in width, 15mm in depth, and 3.8mm in height.
It is ideal for applications in industrial automation, control systems, instrumentation, and other electronic devices requiring numeric display output.
This model can display 2 characters, each consisting of 7 segments for versatile numeric display.
