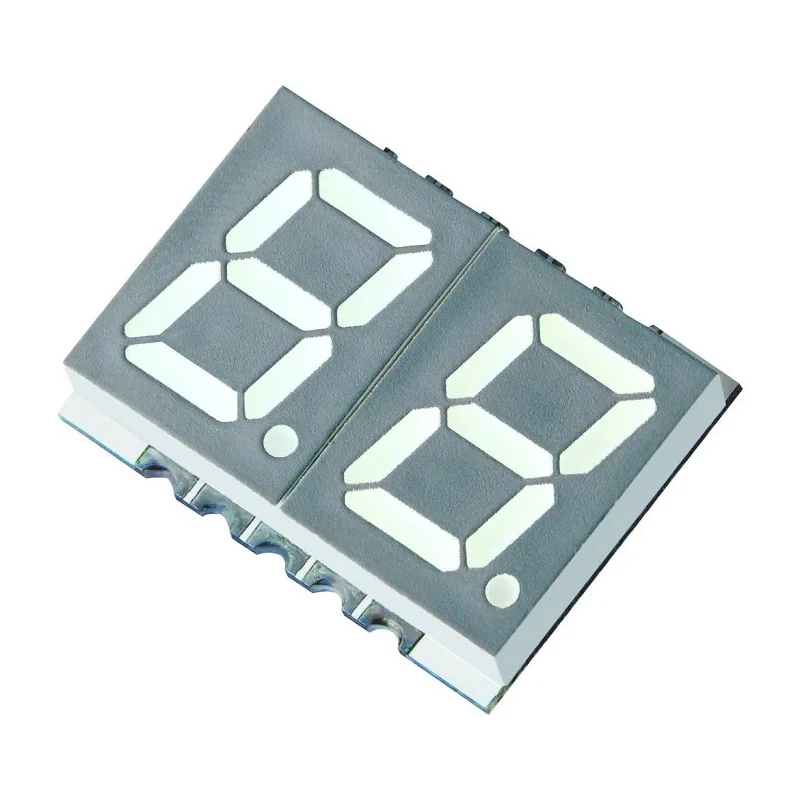

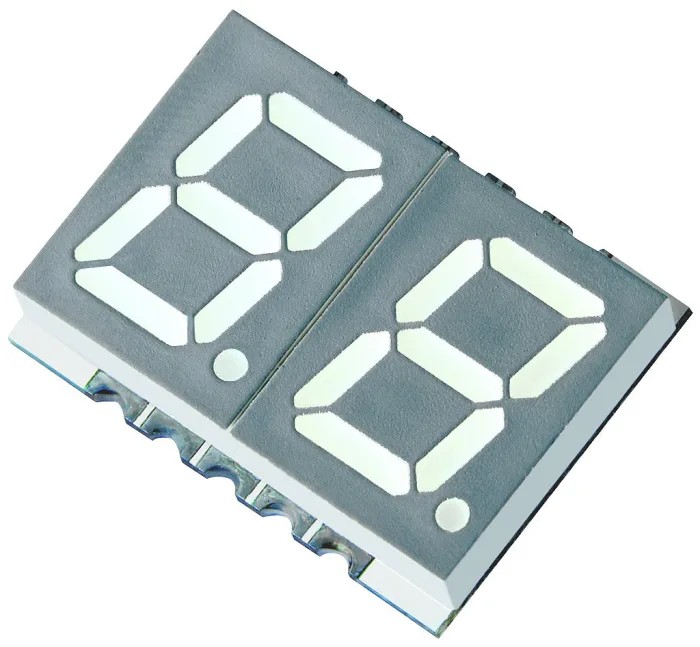

Kingbright 2-Digit 7 Segment LED Display Red 36mcd Anode Right Side 10mm KCDA39-105

Kingbright KCDA39-105 is a 2-digit 7 segment LED display designed for high visibility applications requiring clear numeric output. Featuring a red LED color with a luminous intensity of 36mcd, this display provides excellent on/off contrast and luminous performance.

The module measures 19.6mm width, 15mm depth, and 3.8mm height externally, with individual character dimensions of 10mm height and 6.2mm width, making it suitable for compact PCB layouts. Its surface mount type and common anode connection simplify integration into electronic circuits. The right side decimal orientation further enhances its versatility in numeric display applications.

Operating reliably over a wide temperature range from -40°C to 85°C, the display is engineered for industrial, commercial, and laboratory instrumentation. With a power dissipation rating of 75mW at a forward voltage of 2V and forward current of 30mA, the display features efficient low-current operation. Its grey face with white segments ensures clear character appearance while maintaining rugged mechanical construction and compliance with RoHS environmental standards.

Typical applications include electronic equipment digital readouts, measurement instrumentation, HVAC controls, and industrial automation panels. The KCDA39 series from Kingbright is known for its ease of mounting on PCBs or sockets and categorization for luminous intensity levels.

Dual digit 7 segment numeric LED display provides clear visual output. Red color LEDs with a dominant wavelength of 630nm deliver bright illumination. Surface mount with common anode design aligns with standard electronics assembly processes.

Wide operating temperature range supports diverse environmental conditions. Low power consumption with 75mW dissipation ensures energy efficiency. Right side decimal point orientation for enhanced display functionality. RoHS compliance guarantees reduced environmental impact.

Compact size of 19.6mm x 15mm x 3.8mm fits tight installation spaces. Grey face with white segments improves character clarity and contrast. Mechanically rugged construction suits industrial and commercial electronics.

Enhance your electronic display solutions with Kingbright's reliable and efficient KCDA39-105 LED display. Ideal for laboratories, industrial control systems, automation equipment, and commercial electronics applications. Browse EnvMart's extensive selection of LED Displays for additional compatible components and accessories.
