ams OSRAM 860 nm Infrared LED TO-46 Through Hole Package SFH 4851

Free Delivery in India | Lowest Global Shipping Charges

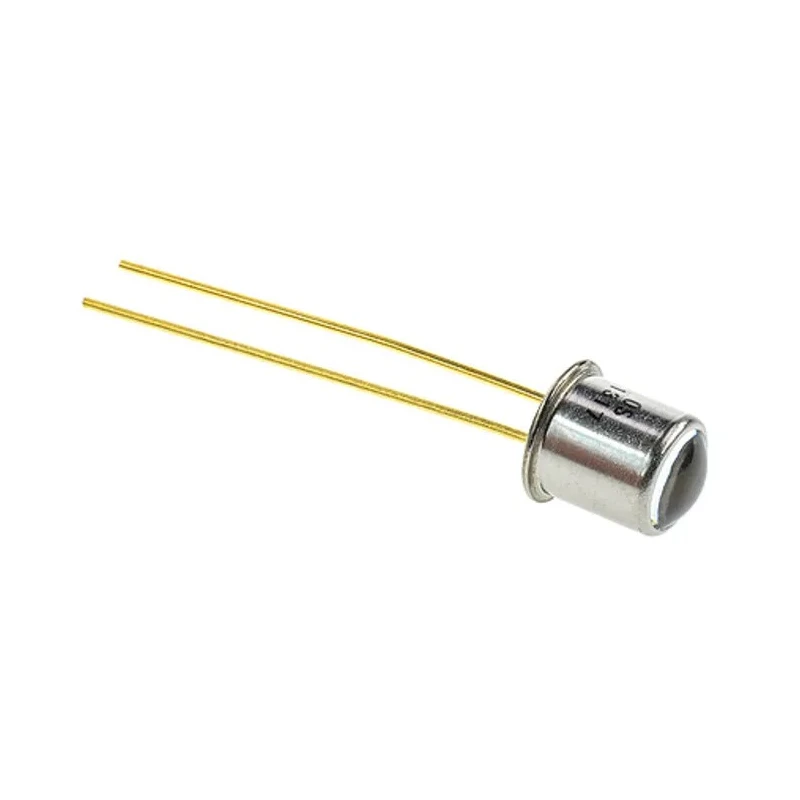

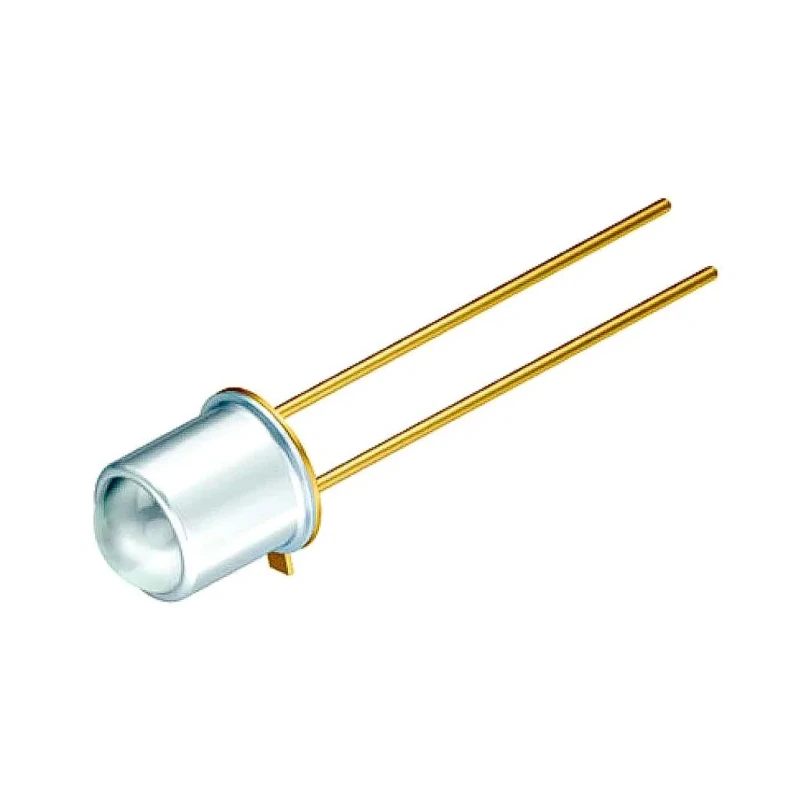

ams OSRAM 860 nm Infrared LED TO-46 Through Hole Package SFH 4851

Name: ams OSRAM 860 nm Infrared LED TO-46 Through Hole Package SFH 4851
Brand: ams OSRAM
SKU: 383968
Price: 3.66 USD
Availability: InStock



Category Infrared LED Brand ams OSRAM Condition New

Specifications

Country of Origin	China
Diameter	4.8mm
Brand	ams OSRAM
Model	SFH 4851
Mount Type	Through Hole
Number Of Leds	1
Package Type	TO-46
Standards/Approvals	ANSI/ESDA/JEDEC JS-001 (HBM,Class 2), IEC 62471:2006
Number of Pins	2
Lens Shape	Round
Maximum Supply Voltage	3.6V
Peak Wavelength	860nm
Radiant Flux	25mW
Angle of half intensity	3°
Radiant Intensity	2110mW/sr
Variety of wavelengths	860, 880 and 950 nm
ANSI/ESDA/JEDEC JS-001 (HBM,Class 2), IEC 62471	2006
SFH 4881 Osram Opto, 880nm IR LED, TO-46 Through Hole packageBrand	OSRAM Opto Semiconductors

Key Features

The LED is housed in a TO-46 metal can package providing enhanced durability.
It has a radiant flux of 25 mW and radiant intensity of 2110 mW/sr.
The device operates at a maximum supply voltage of 3.6 V and features a narrow half intensity angle of 3° for focused emission.
The package includes 1 LED with 2 pins and a round lens shape for uniform light output.
This IR LED is suitable for applications such as photointerrupters, IR remote controls, and sensor technologies.

Product Description

The ams OSRAM SFH 4851 infrared LED features a peak wavelength of 860 nm and is packaged in a robust TO-46 through hole metal can housing. This design ensures hermetic sealing for high reliability and rapid switching performance.

It emits infrared light with a radiant flux of 25 mW and radiant intensity of 2110 mW/sr, optimized by a narrow 3° angle of half intensity, delivering precise illumination suitable for sensing applications.

The LED incorporates 1 emitter with 2 connection pins and a round lens shape. The maximum supply voltage recommended is 3.6 V. This component is compliant with ANSI/ESDA/JEDEC JS-001 (HBM Class 2) for electrostatic discharge protection and IEC 62471:2006 photobiological safety standards.

Applications include photointerrupters, infrared remote control systems, and various sensor technologies requiring reliable IR emission in industrial, commercial, and consumer electronic devices.

The TO-46 metal can package ensures durability and excellent thermal management. High radiant intensity supports long-distance IR communication. Hermetically sealed package protects against environmental influences, enhancing device lifespan.

Narrow emission angle improves sensor accuracy and responsiveness. Compatible with standard through-hole mounting methods simplifying PCB assembly.

This ams OSRAM IR LED represents a high-quality solution for precision optical applications, combining reliable electrical and optical performance with rugged construction. For professionals designing sensing or communication equipment, the SFH 4851 offers unmatched performance and industrial-grade longevity.

Explore more ams OSRAM products in the Infrared LED category at EnvMart for comprehensive electronics component sourcing.
