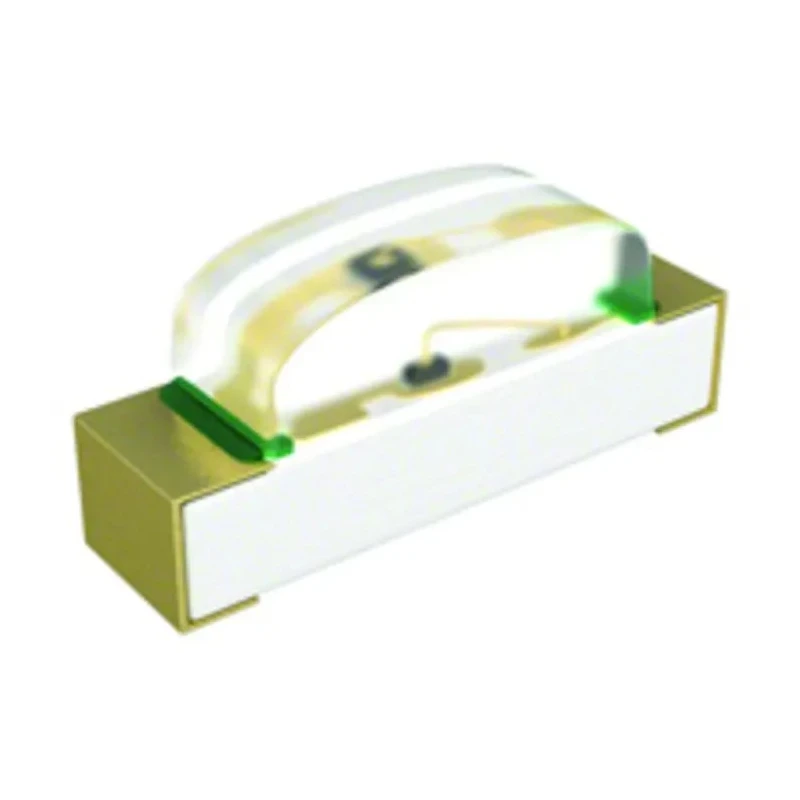

Broadcom 2.6 V Red LED 0603 Surface Chip LED HSMS-C120

Broadcom HSMS-C120 Red LED 0603 Surface Chip is an industry-standard surface mount light emitting diode presented in a compact 1.6 x 0.6 x 1 mm package. The LED operates at a forward voltage of 2.6 V and supports a maximum forward current of 20 mA while dissipating up to 52 mW power. Its design includes a clear, rectangular lens providing a wide viewing angle of 155 degrees, enhancing visibility in compact electronic assemblies.

This chip LED is suited for various industrial and electronic applications such as keypad and push-button backlighting, LCD display illumination, symbol indication, and front panel indicators. The packaging on tape & reel facilitates efficient automated assembly operations in manufacturing environments. Environmental compliance is ensured through RoHS certification, making it suitable for modern electronics manufacturing requirements.

The HSMS-C120 series has proven reliability within an operating temperature range from -30°C to +85°C, catering to diverse industrial, consumer electronics, and commercial sectors. Its bright red emission at a dominant wavelength of 626 nm and luminous intensity of 10 mcd delivers clear visual signals for critical status and interface applications. The surface mount package provides ease of integration with automated PCB assembly lines.

The LED operates with a forward voltage of 2.6 V for efficient power consumption. The 20 mA maximum forward current specification ensures reliable and stable illumination. Compact 0603 footprint (1.6 x 0.6 x 1 mm) fits small PCB layouts.

A wide 155° viewing angle allows for flexibility in device design. The red LED color and 626 nm dominant wavelength are ideal for indicator lights. Features a clear, rectangular lens for consistent light output and durability.

Packaged in tape and reel format supporting automated manufacturing processes. RoHS compliant to meet environmental and safety standards. Operational temperature from -30°C to +85°C supports industrial and commercial applications.

Commonly utilized in industrial, communication, consumer electronics, and automotive front panel indicators. Explore more high-quality LEDs and surface mount components at EnvMart, your trusted source for electronics components and lighting solutions.
