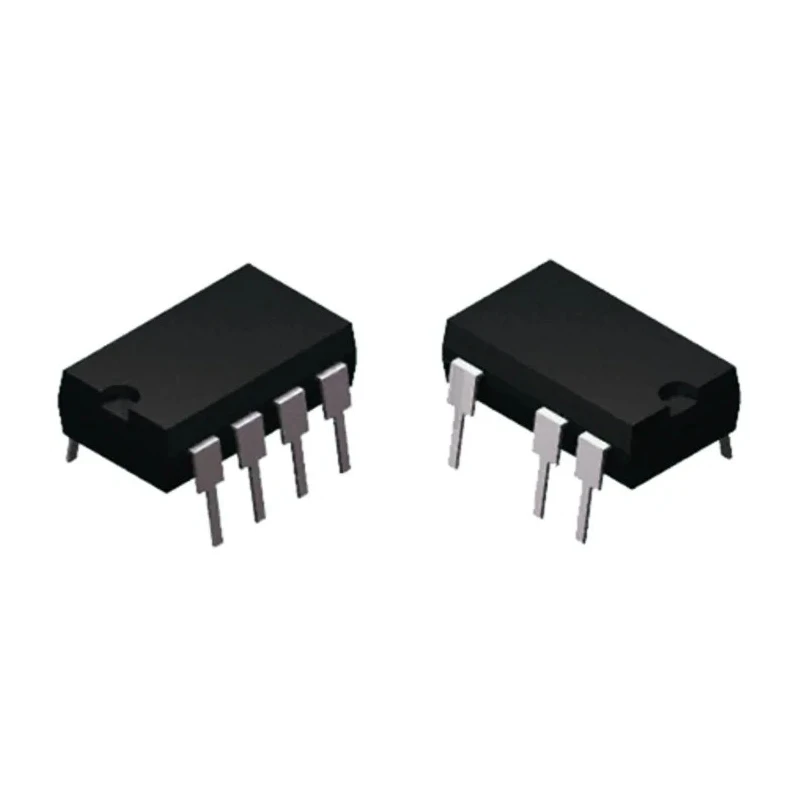

onsemi Low Side Integrate Pulse Width Modulator Power Switch IC 7-Pin PDIP FSL336LRN
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | FSL336LRN |
| Mount Type | Through Hole |
| Number of inputs | 1 |
| Power Rating | 7.08W |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Operating Current | 1.8A |
| Number of outputs | 1 |
| Pin Count | 7 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 300mV |
| onsemi NCP1072P100G, PWM Controller, 8.2 V, 110 kHz 7-Pin, PDIPBrand | ON Semiconductor |
Key Features
- Features integrated soft-start and comprehensive protection mechanisms.
- Operating voltage range from 300 mV to 26 V.
- Maximum operating current of 1.8 A ensuring efficient power control.
- Designed for through-hole mounting with a 7-pin PDIP package type.
- Wide operating temperature range from -40°C to 125°C for industrial environments.
- Single output and single input for precise pulse width modulation.
- No automotive standards or certifications applied.
- Ideal for flyback and forward PWM controller implementations.
Product Description
onsemi FSL336LRN Low Side Integrate Pulse Width Modulator Power Switch IC is a high-performance power switch designed for efficient energy management in switch mode power supplies (SMPS). This device is housed in a 7-pin PDIP package, suitable for through-hole mounting applications. It offers a power rating of 7.08 W and operates with a voltage range between 300 mV minimum supply and 26 V maximum supply voltage, making it versatile for various electronic power management tasks.
The FSL336LRN features a single output and input, optimizing it for pulse width modulation control. The device integrates soft-start capability and multiple protection features such as over-voltage protection, open-feedback detection, overload handling, output short circuit protection, overcurrent protection, voltage brownout rejection, and undervoltage lockout. These features ensure safe and reliable operation in demanding industrial, commercial, and laboratory environments.
Operating temperature ranges from -40°C to 125°C, supporting robust performance in varied ambient conditions. The device is typically employed in flyback and forward PWM controller circuits, benefiting from its line level control (LLC) and primary-side regulation designs. These applications contribute significantly to energy savings and improved efficiency in power supply designs.
This power switch IC does not carry any automotive standards or approvals, making it best suited for non-automotive power supply applications. It is ideal for use in manufacturing, HVAC, industrial electronics, and water treatment power management systems requiring dependable power switching solutions.
Integrated soft-start and comprehensive protection features enhance device longevity. Through-hole 7-pin PDIP package facilitates easy mounting and prototyping. Wide voltage and current range suit diverse power management applications.
Designed for flyback and forward PWM controllers for optimized power conversion. Excellent thermal performance with high maximum operating temperature. Protection against common electrical faults contributes to system reliability.
Supports energy-efficient switch mode power supply designs in industrial settings. Explore the full range of Power Switch ICs and Power Management ICs on EnvMart for industrial and commercial electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range of this model is from 300 mV to 26 V.
It has a maximum operating current of 1.8 A.
The power rating of this unit is 7.08 W.
It operates within a temperature range from -40°C to 125°C.
This power switch IC features one input and one output.
It is designed for through-hole mounting and comes in a 7-pin PDIP package type.
The FSL336LRN includes over-voltage protection, open-feedback detection, overload handling, output short circuit protection, overcurrent protection, voltage brownout rejection, and undervoltage lockout.
It is typically employed in flyback and forward PWM controller circuits for efficient energy management in switch mode power supplies.
This model has a pin count of 7.
No, this power switch IC does not carry any automotive standards or certifications.
The country of origin for this model is India.
Key features include integrated soft-start capability and comprehensive protection mechanisms for safe and reliable operation.
