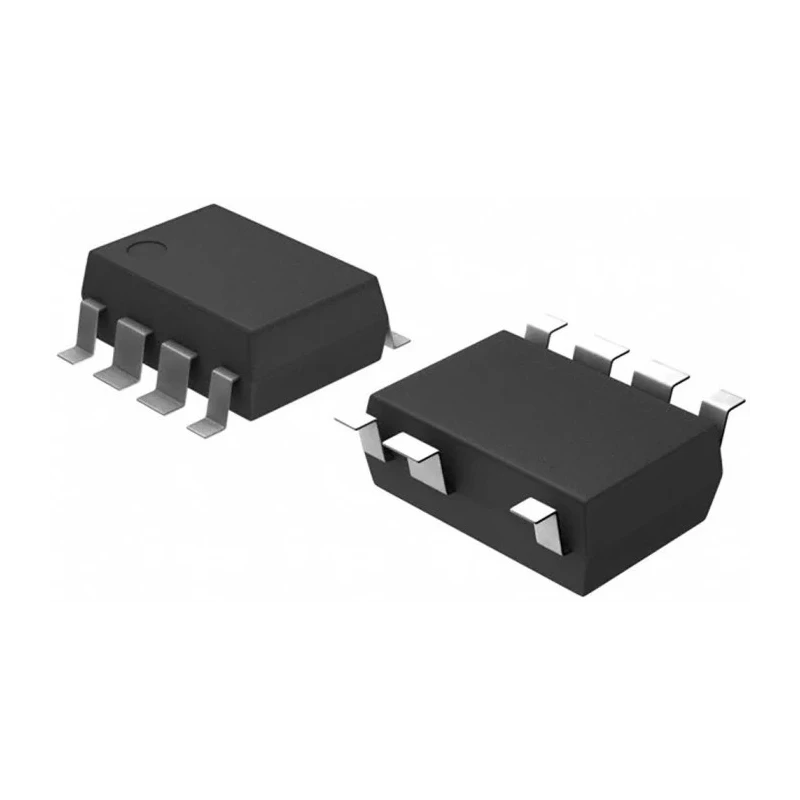

onsemi Integrated Pulse Width Modulator Power Switch IC Surface Mount 8-Pin LSOP FSL306LRLX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.6mm |
| Length | 9.4mm |
| Model | FSL306LRLX |
| Width | 6.6mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Power Rating | 3W |
| Maximum Operating Temperature | 125°C |
| Package Type | LSOP |
| Minimum Operating Temperature | -40°C |
| Operating Current | 450mA |
| Number of outputs | 1 |
| Standards/Approvals | JEDEC JESD22-A114, JESD22-C101 |
| Pin Count | 8 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 300mV |
| Switch On Resistance RdsOn | 18Ω |
Key Features
- Switch on resistance RdsOn is 18 Ohms ensuring efficient power switching.
- Supports a single output and a single input configuration.
- Power rating of 3 Watts for robust energy handling.
- Minimum and maximum supply voltages are 300 mV and 26 V respectively.
- Operating current of 450 mA supports typical power circuits.
- Wide operating temperature range from -40°C to 125°C suitable for diverse environments.
- Complies with JEDEC JESD22-A114 and JESD22-C101 standards for reliability.
- Compact package dimensions with 8 pins in LSOP form factor.
Product Description
onsemi FSL306LRLX Integrated Pulse Width Modulator Power Switch IC is a high-performance 8-pin LSOP package device designed primarily for power management in electronic circuits.
This power switch IC integrates pulse width modulation for efficient energy control, making it suitable for flyback and forward PWM controller applications, particularly in switch mode power supplies (SMPS).
The device features a low switch-on resistance (RdsOn) of 18 Ohms and operates within a supply voltage range of 0.3 to 26 V, supporting a power rating of 3 Watts and handling operating currents up to 450 milliamps.
It is surface mountable with a compact LSOP package measuring 9.4 mm in length, 6.6 mm in width, and 3.6 mm in height, facilitating integration into space-constrained designs.
The FSL306LRLX is rated for operation in harsh environments with a temperature range from -40°C to 125°C and complies with JEDEC JESD22-A114 and JESD22-C101 reliability standards. It also incorporates integrated protection features including soft-start, over-voltage, open-feedback, overload, output-short, overcurrent, voltage brownout, and undervoltage lockout for enhanced durability and safety.
This power switch IC is typically used in industrial, electronic, power supply, and manufacturing applications requiring reliable, efficient power control and switching. Switch on resistance RdsOn is 18 Ohms ensuring efficient power switching.
Supports a single output and a single input configuration. Power rating of 3 Watts for robust energy handling. Minimum and maximum supply voltages are 300 mV and 26 V respectively. Operating current of 450 mA supports typical power circuits.
Wide operating temperature range from -40°C to 125°C suitable for diverse environments. Complies with JEDEC JESD22-A114 and JESD22-C101 standards for reliability. Compact package dimensions with 8 pins in LSOP form factor.
Explore extensive selections of Power Switch ICs and Power Management ICs on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 26 V.
It operates within a wide temperature range from -40°C to 125°C.
The power rating of this unit is 3 Watts.
The switch on resistance (RdsOn) is 18 Ohms, ensuring efficient power switching.
This power switch IC supports a single input and a single output configuration.
The operating current is 450 mA, which supports typical power circuits.
The compact dimensions of this model are 9.4 mm in length, 6.6 mm in width, and 3.6 mm in height.
It complies with JEDEC JESD22-A114 and JESD22-C101 standards for reliability.
The FSL306LRLX is designed for surface mounting.
This power switch IC is typically used in industrial, electronic, power supply, and manufacturing applications requiring reliable power control.
The minimum supply voltage is 300 mV.
It includes features such as soft-start, over-voltage, open-feedback, overload, output-short, overcurrent, voltage brownout, and undervoltage lockout.
