Kingbright F3 940 nm IR LED Side Looker Surface Mount Package KPA-3010F3C

Free Delivery in India | Lowest Global Shipping Charges

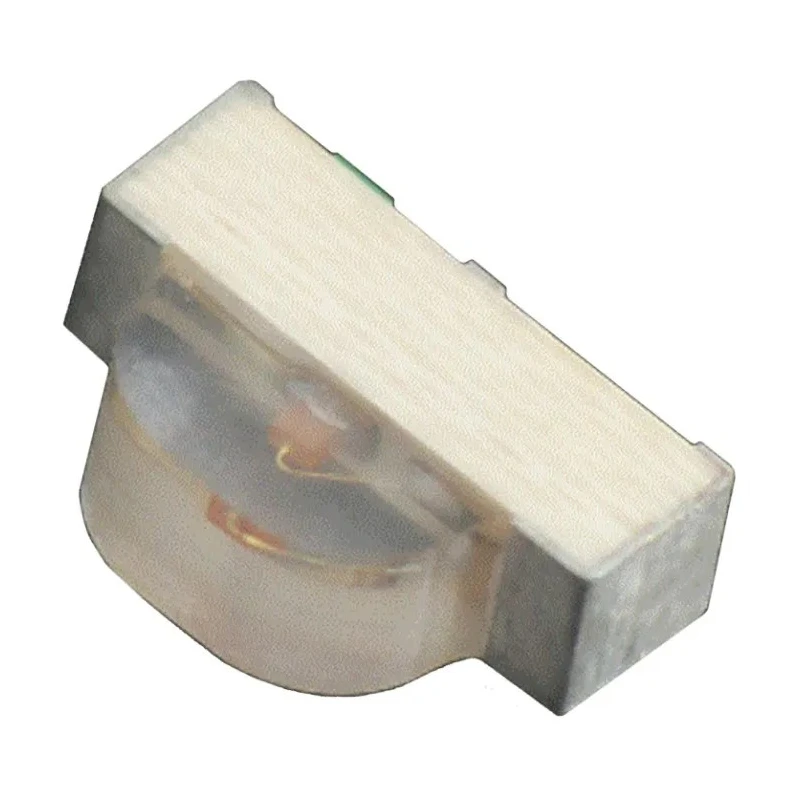

Kingbright F3 940 nm IR LED Side Looker Surface Mount Package KPA-3010F3C

Name: Kingbright F3 940 nm IR LED Side Looker Surface Mount Package KPA-3010F3C
Brand: Kingbright
SKU: 382502
Price: 0.27 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Model	KPA-3010F3C
Mount Type	Surface
Series	F3
Number Of Leds	1
Package Type	Side Looker
Standards/Approvals	RoHS, CIE127-2007
Number of Pins	2
Lens Shape	Dome
Maximum Supply Voltage	5V
Peak Wavelength	940nm
LED Material	GaAs
Angle of half intensity	120°

Key Features

This IR LED features a peak wavelength of 940 nm for infrared emission.
The package type is side looker, providing right angle light emission.
The LED is surface mounted with a dome-shaped lens to enhance light distribution.
It has a 120° half intensity angle providing wide viewing coverage.
The device contains one LED and two pins for electrical connection.
Constructed using Gallium Arsenide (GaAs) material for LED semiconductor.
Maximum supply voltage of 5 volts ensures compatibility with common electronic circuits.
The product complies with RoHS and CIE127-2007 standards ensuring quality and safety.

Product Description

Kingbright KPA-3010F3C is an F3 series infrared (IR) LED with a peak wavelength of 940 nm, designed as a side looker surface mount device (SMD). The LED features a dome lens shape and is constructed with Gallium Arsenide (GaAs), allowing reliable infrared light emission. It operates with a maximum supply voltage of 5V and provides a 120° angle of half intensity for broad illumination coverage.

This surface mount LED is suitable for various industrial and commercial applications such as backlighting, indicator lamps, and optical sensing. Its right-angle emission and compact side looker packaging facilitate efficient PCB mounting and directional IR output.

The device meets RoHS and CIE127-2007 standards, ensuring regulatory compliance and material safety. Manufactured in China, it guarantees consistent quality and performance for electronic assemblies.

Peak wavelength of 940 nm for infrared applications. Side looker surface mount package with dome lens. 120° viewing angle for wide illumination. Single LED with two electrical pins. Gallium Arsenide (GaAs) semiconductor material.

RoHS compliant and meets CIE127-2007 standards. Maximum supply voltage of 5V for circuit compatibility. Ideal for electronic indicators, backlighting, and optical devices. Compact SMD design for automated PCB assembly.

This LED is part of Kingbright's F3 series, delivering reliable infrared light sources for industrial, laboratory, commercial, and manufacturing purposes. It is widely used in electronic displays, sensor technologies, and illumination devices where non-visible IR light is required.
