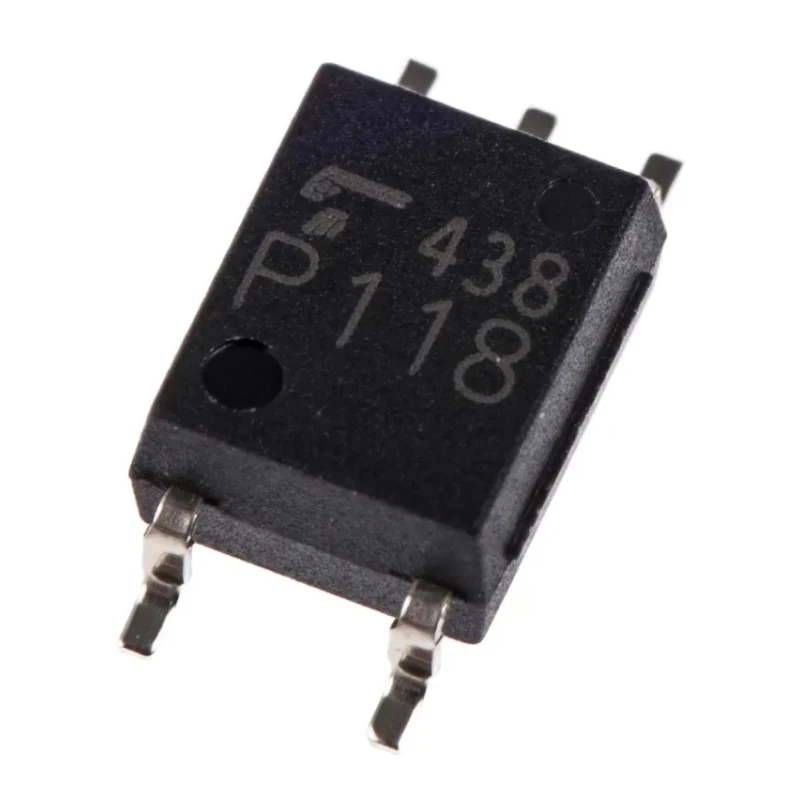

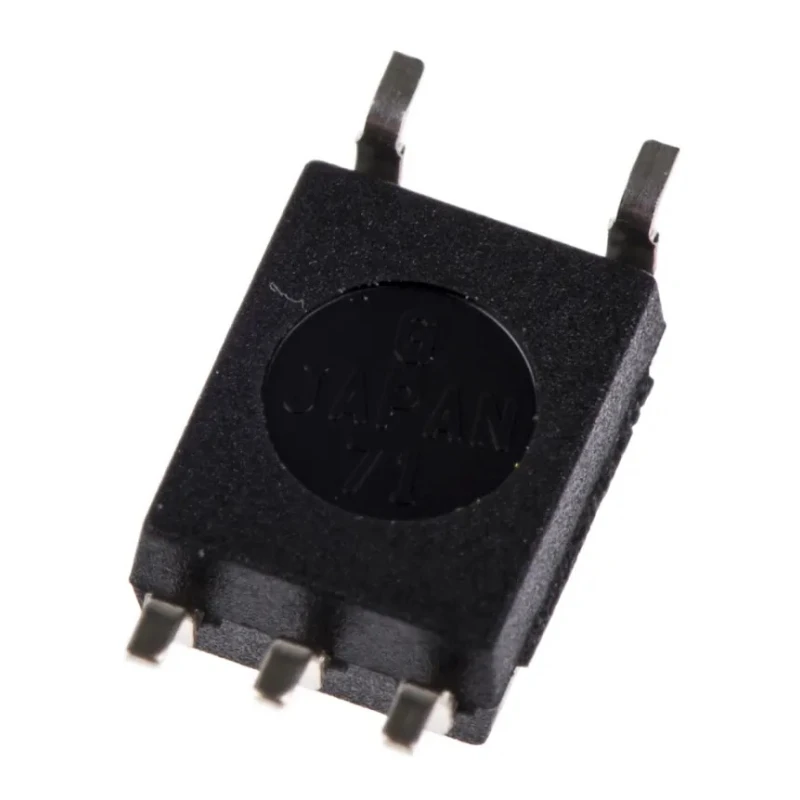

Toshiba Optocoupler Surface Mount 5-Pin SO, 1 Channel, 3750Vrms Isolation Voltage TLP2395(E(T

Name: Toshiba Optocoupler Surface Mount 5-Pin SO, 1 Channel, 3750Vrms Isolation Voltage TLP2395(E(T
Brand: Toshiba
SKU: 385071
Price: 0.74 USD
Availability: InStock



Category Optocoupler Brand Toshiba Condition New

Specifications

Country of Origin	Thailand
Brand	Toshiba
Model	TLP2395(E(T
Mount Type	Surface
Series	TLP 2395
Maximum Operating Temperature	125°C
Package Type	SO
Minimum Operating Temperature	-40°C
Maximum input current	20mA
Number Of Channels	1
Standards/Approvals	cUL, UL 1577, CSA
Maximum Forward Voltage	1.63V
Number of Pins	5
Typical Rise Time	15ns
Typical Fall Time	12ns

Key Features

Surface mounting type suitable for automated assembly.
Single channel optocoupler with 1.63V maximum forward voltage.
Maximum input current rating of 20mA for reliable switching.
High isolation voltage of 3750 Vrms for safety in equipment.
Fast typical rise and fall times of 15 ns and 12 ns respectively.
Operating temperature range from -40°C to 125°C for harsh environments.
Includes transistor output with logic output feature.
Certified to cUL, UL 1577, and CSA standards ensuring quality compliance.

Product Description

Toshiba TLP2395(E(T optocoupler is a high-performance surface mount device designed for electrical isolation and signal transfer in electronic circuits. It features a 5-pin small-outline (SO) package suitable for compact designs and automated PCB assembly.

This optocoupler contains a single input channel, incorporating dual inverse parallel connected LEDs that enable processing of bipolar AC input currents. The transistor output stage supports logic output suitable for interfacing with digital circuits.

The device operates over a wide temperature range from -40°C to 125°C, making it reliable for use in industrial, automotive electronics, power supplies, and general electronic equipment.

With a maximum input current rating of 20mA and maximum forward voltage of 1.63V, it offers efficient signal transmission with minimal power loss. Its high isolation voltage of 3750 Vrms ensures safety in environments requiring galvanic isolation to prevent electrical noise and surge damage.

Typical switching times are notably fast, with 15ns rise time and 12ns fall time, enabling high-speed signal processing applications.

The component is certified to cUL, UL 1577, and CSA standards, underscoring its trustworthiness in regulated applications. It belongs to Toshiba's TLP 2395 series and is made in Thailand.

Surface mount design for modern manufacturing. Single channel with bipolar AC input LEDs. High isolation voltage of 3750 Vrms. Fast switching with 15ns rise and 12ns fall times. Wide operational temperature range from -40°C to 125°C.

Logic output transistor suitable for digital interfacing. Compliant with cUL, UL 1577, and CSA standards. Manufactured in Thailand as part of TLP 2395 series.

This optocoupler is engineered for use in electronics requiring secure signal isolation such as industrial control systems, power supplies, telecommunications, automotive systems, and instrumentation. It is a reliable component for maintaining signal integrity and protecting circuits against high voltages.
