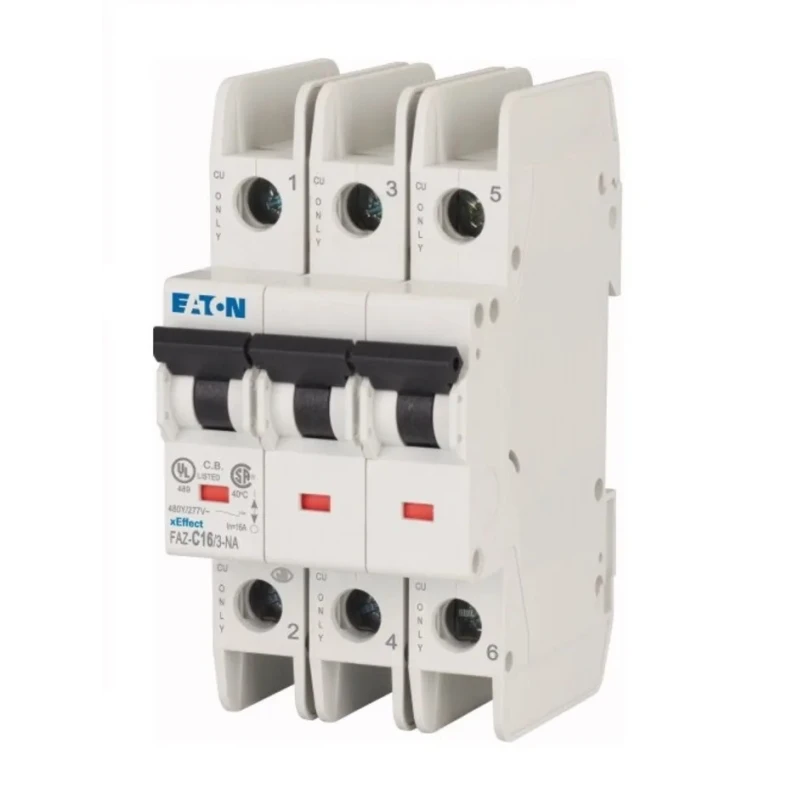

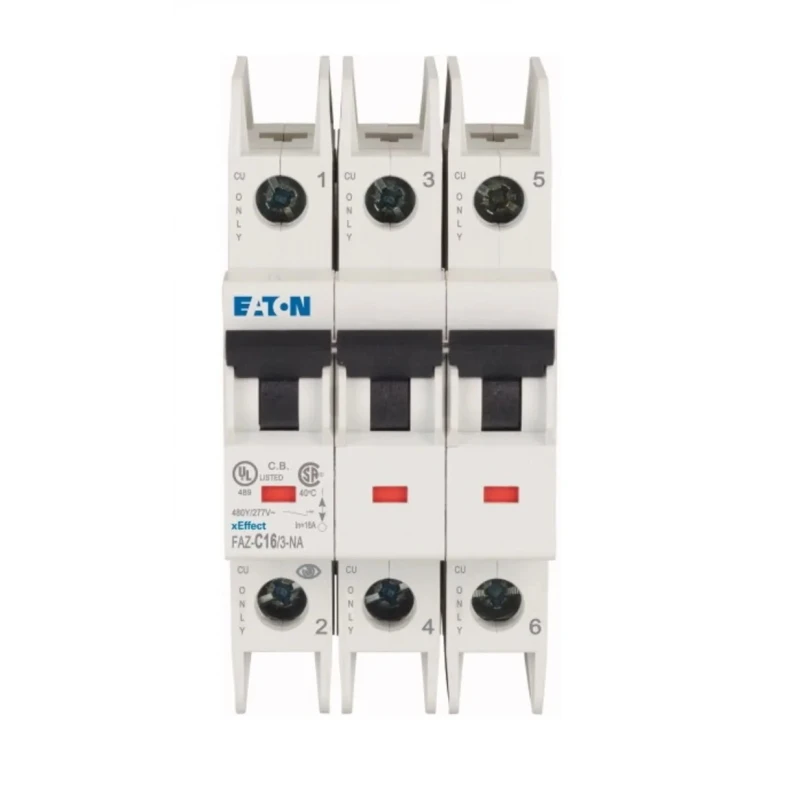

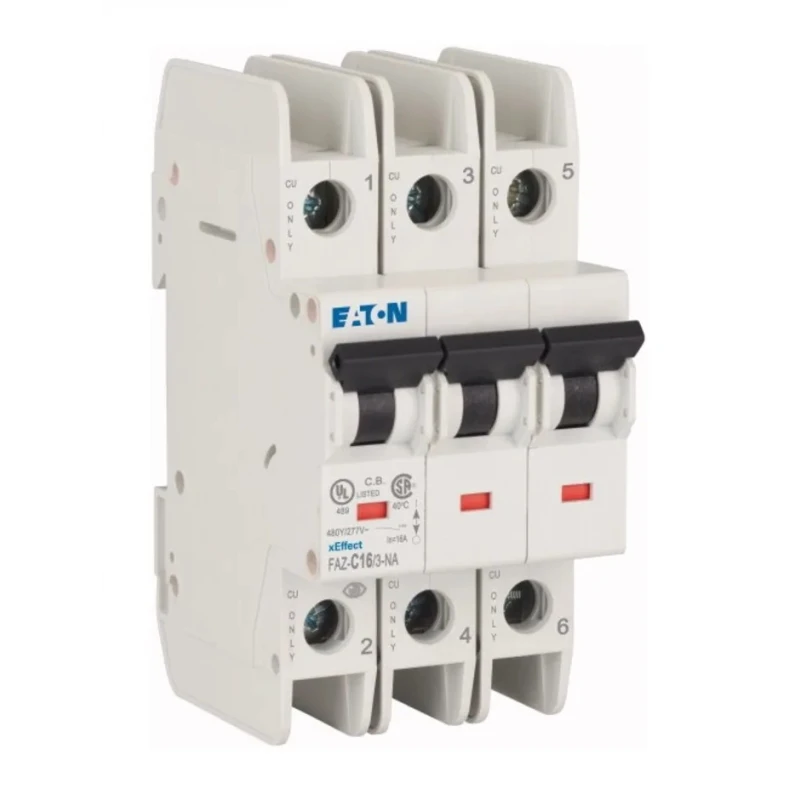

Eaton xEffect Miniature Circuit Breaker, 3-Pole, 16A, Type C, 415V AC, 60V DC, 10 kA Breaking Capacity 102250 FAZ-C16/3-NA

Eaton 102250 FAZ-C16/3-NA Miniature Circuit Breaker is a 3-pole device designed for industrial and commercial electrical protection applications. It provides a reliable 16A current rating with Type C tripping characteristics, suitable for protecting motors, HVAC systems, and other inductive loads with high surge currents.

This breaker supports an AC voltage rating of 415V and DC voltage rating of 60V, ensuring versatile deployment in various electrical systems. The device features a 10 kA breaking capacity, allowing it to safely interrupt high short-circuit currents to prevent equipment damage and enhance safety.

Constructed for durability, it incorporates a thermal magnetic tripping mechanism to provide instantaneous overload and short-circuit protection. The toggle switch reset actuator allows easy manual resetting after fault clearance.

Designed for mounting on standard DIN rails, installation and maintenance are simple and efficient. The breaker uses captive screw terminals, minimizing risks of screw loss and ensuring secure electrical connections. Its IP20 rating grants protection against accidental contact with live parts and ingress of solid foreign objects.

The breaker dimensions of 105mm width and 76mm depth allow compact panel design without compromising performance. The product is resistant to corrosion and impact and operates effectively within a wide temperature range, supporting harsh industrial environments.

Designed for quick DIN rail mounting and removal. High breaking capacity supports rapid fault current interruption. Type C curve allows operation at 5 to 10 times rated current to accommodate inductive loads. Thermal magnetic mechanism combines thermal overload and magnetic short circuit protection.

Toggle switch actuator ensures immediate and safe reset capability. Screw terminals include captive screws to reduce maintenance issues. Suitable for branch circuit protection in electrical panels.

This Eaton miniature circuit breaker is ideal for industrial, manufacturing, HVAC, and commercial electrical distribution systems where high reliability and safety are required. Its features prevent equipment damage, reduce electrical hazards, and improve operational safety.

Explore the Eaton range of xEffect Miniature Circuit Breakers and ensure superior circuit protection for your electrical infrastructure with high-quality components engineered for performance and safety.
