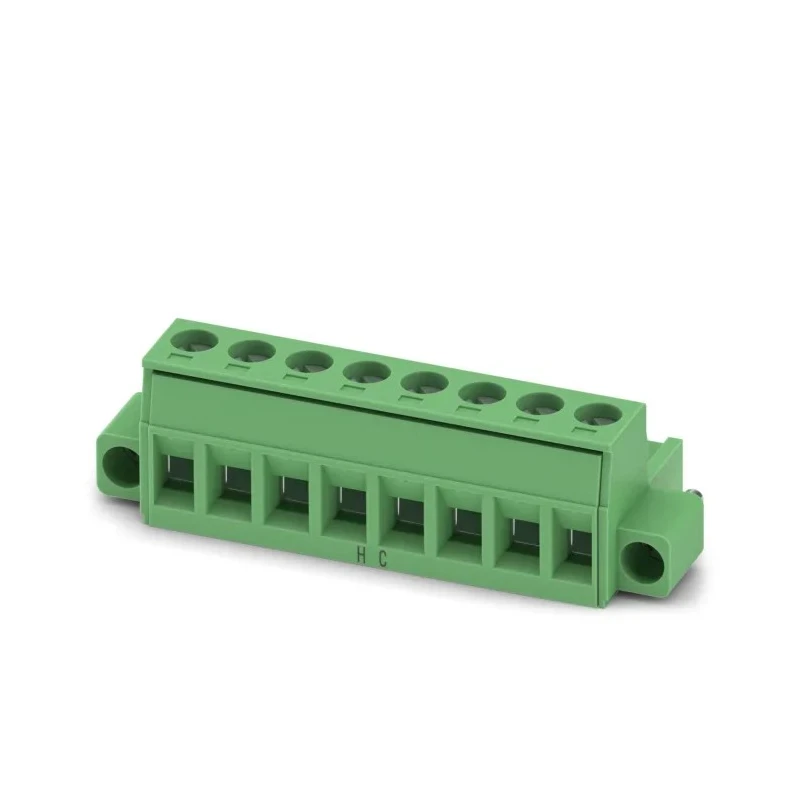

Phoenix Contact MSTB 2.5 HC/8-STF-5.08 Series Pluggable Terminal Block 8-Contact 5.08 mm Pitch Horizontal 16A 630V 1912249

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MSTB 2.5 HC/8-STF-5.08 Series Pluggable Terminal Block 8-Contact 5.08 mm Pitch Horizontal 16A 630V 1912249

Name: Phoenix Contact MSTB 2.5 HC/8-STF-5.08 Series Pluggable Terminal Block 8-Contact 5.08 mm Pitch Horizontal 16A 630V 1912249
Brand: PHOENIX CONTACT
SKU: 382163
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	630V
Brand	Phoenix Contact
Colour	Green
Orientation	Horizontal
Current	16A
Length	18.2mm
Model	1912249
Depth	15mm
Width	50.04mm
Housing Material	Polyamide
Series	MSTB 2.5 HC/8-STF-5.08
Number of Rows	1
Pitch	5.08mm
Number of Contacts	8
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw

Key Features

Rated current of 16 amperes supports robust electrical applications.
Nominal voltage rating of 630 volts ensures safe operation in demanding environments.
Constructed with durable green polyamide housing for electrical insulation and mechanical protection.
Supports wire sizes from 0.2 mm² (24 AWG) up to 2.5 mm² (12 AWG) for versatile connectivity.
Compact dimensions with length 18.2 mm, width 50.04 mm, and depth 15 mm for PCB mounting.
Features screw locking with tension sleeve ensuring reliable wire retention.
Single-row configuration with 8 connection points for efficient wiring layouts.
Designed and manufactured in Germany to high-quality standards.

Product Description

Phoenix Contact 1912249 pluggable terminal block belongs to the MSTB 2.5 HC/8-STF-5.08 series, offering reliable PCB connectivity with 8 contact points arranged in a single row. This terminal block supports a nominal current of 16A and voltage ratings up to 630V, making it suitable for industrial electrical and electronic applications.

The terminal block features a 5.08 mm pitch and a horizontally oriented screw connection system, employing a tension sleeve for secure wire clamping. It accommodates a wide range of wire sizes from 0.2 mm² to 2.5 mm² (24 to 12 AWG), ensuring compatibility with diverse wiring needs.

Constructed with a green polyamide housing, it provides excellent insulation and resistance to industrial environments. Compact PCB mount dimensions measure 18.2 mm length, 50.04 mm width, and 15 mm depth, optimizing space on circuit boards.

This product is designed by Phoenix Contact in Germany and complies with industry norms though no specific certification approvals are indicated. Its screw locking mechanism supports dependable mechanical and electrical performance in various industrial, automation, and control applications.

Rated current of 16 amperes supports robust electrical applications. Nominal voltage rating of 630 volts ensures safe operation in demanding environments. Durable green polyamide housing for insulation and mechanical protection.

Wire size support ranges from 0.2 mm² (24 AWG) up to 2.5 mm² (12 AWG). Compact dimensions suited for efficient PCB mounting. Screw locking with tension sleeve ensures secure connection. Single-row, 8-position design for flexible wiring.

Manufactured in Germany for quality assurance.

This Pluggable Terminal Block is ideal for industrial control systems, PCB wiring, electrical device connection, power electronics, and automation applications. Explore more high-quality terminal blocks and connectors by Phoenix Contact to complete your electrical installations at EnvMart.
