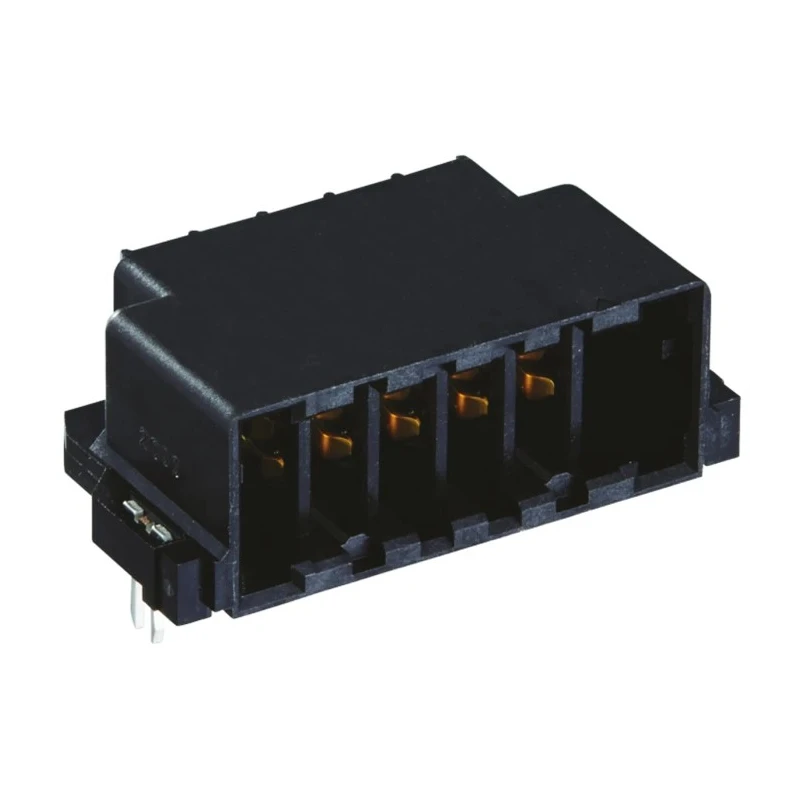

Hirose Right Angle Through Hole PCB Socket 5-Contact 1 Row 3.81 mm Pitch Solder FX30B
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 12A |
| Model | FX30B |
| Mount Type | Through Hole |
| Housing Material | Polyamide Resin |
| Contact Material | Copper |
| Series | FX30B |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector System | Power |
| Stacking Height | 20mm |
Key Features
- The floating structure absorbs mounting misalignment for secure mating.
- Self-aligning and self-guiding design improves assembly accuracy.
- Robust metal fittings provide secure fixing to the PCB and resist deformation.
- Gold plated copper contacts ensure high reliability with multi-point contact structure.
- The socket supports up to 13 to 17A current capacity per contact.
- Effective mating length is 2 mm to ensure dependable electrical connection.
- Designed for through-hole mounting with right angle orientation.
- Suitable for use in broadcast equipment, base station transceivers, and industrial instrumentation.
Product Description
Hirose FX30B Right Angle Through Hole PCB Socket FX30B is a high-performance 5-contact, 1-row PCB connector with a 3.81 mm pitch designed for board-to-board power connections. This connector features a unique floating structure that absorbs mounting misalignment errors, enabling reliable and safe mating even in applications requiring multiple stacking connectors.
The floating contacts provide a degree of play (+0.3 mm in XY directions and 1 mm in Z direction), preventing solder cracking and the need for rework due to mounting placement errors. Metal fittings on either side secure the connector to the PCB and provide resistance against deformation in all directions, enhancing durability and mechanical stability.
Contacts are made of copper with gold plating, featuring a multi-point structure with four independent contact points to ensure high electrical reliability. Each contact supports a current capacity of 13 to 17A with an effective mating length of 2 mm, ensuring low insertion and extraction forces for ease of maintenance.
This through-hole mounted socket has a right-angle orientation and is constructed with polyamide resin housing. It operates reliably in temperatures ranging from -55°C to 105°C and supports a voltage rating of 250 V. The product is suitable for demanding industrial, broadcast, communications, and medical device applications where robust and precise board interconnection is critical.
The floating structure absorbs mounting misalignment for secure mating. Self-aligning and self-guiding design improves assembly accuracy. Robust metal fittings provide secure PCB attachment and deformation resistance. Multi-point gold plated copper contacts for enhanced electrical reliability.
High current capacity of 13 to 17A per contact ensures robust power transmission. Effective mating length of 2 mm reduces insertion and extraction forces. Operates in wide temperature range from -55°C to 105°C. Ideal for broadcast equipment, base station transceivers, industrial, and medical instrumentation.
This Hirose FX30B PCB socket is manufactured in Japan to meet high-quality standards. Explore a diverse range of high-performance PCB connectors and sockets with EnvMart for your industrial and electronic component needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Each contact of the Hirose FX30B PCB socket supports a current capacity of 13 to 17A, ensuring robust power transmission.
The voltage rating for the FX30B PCB socket is 250V, making it suitable for various applications requiring power connections.
The Hirose FX30B features a pitch size of 3.81 mm, designed for board-to-board power connections.
The contacts of this model are made of copper and are gold plated to enhance electrical reliability.
The effective mating length of the FX30B PCB socket is 2 mm, which helps reduce insertion and extraction forces.
This model operates reliably in a temperature range from -55°C to 105°C, suitable for various demanding environments.
The Hirose FX30B is designed for through-hole mounting, providing a secure connection to the PCB.
The FX30B PCB socket has a right-angle orientation, facilitating space-efficient board layouts.
This model features 5 contacts, allowing for multiple connections in a compact design.
The housing of the Hirose FX30B PCB socket is made from polyamide resin, providing mechanical stability and durability.
The Hirose FX30B is suitable for use in broadcast equipment, base station transceivers, and industrial instrumentation.
This PCB socket uses solder termination, which is standard for secure electrical connections on PCBs.
