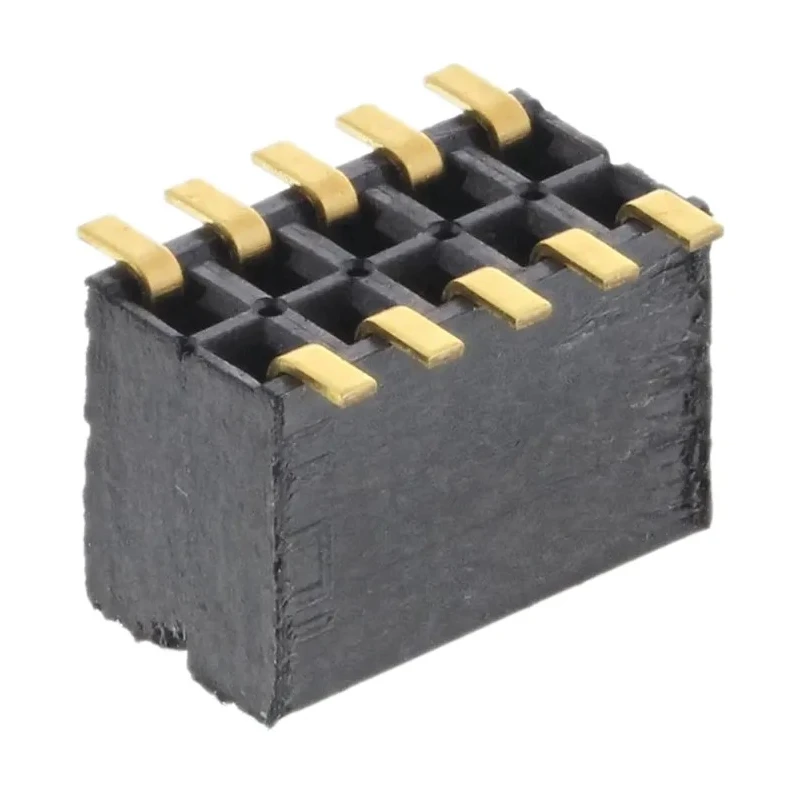

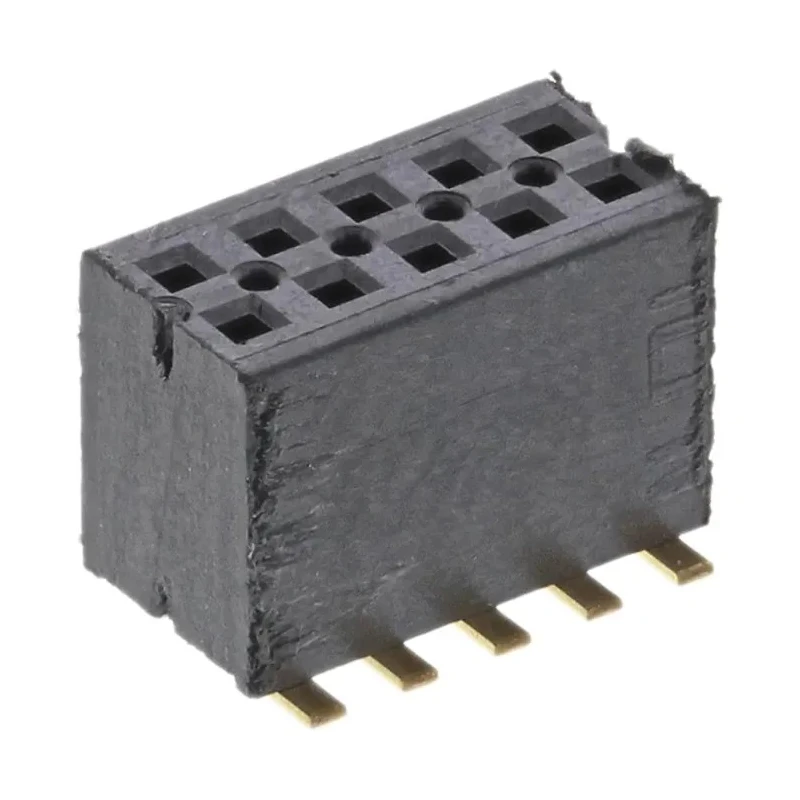

Samtec FLE Series Straight Surface PCB Socket 10-Contact 2 Row 1.27 mm Pitch Surface Mount FLE-105-01-G-DV
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.75A |
| Model | FLE-105-01-G-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | FLE |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
Key Features
- This PCB socket supports a current rating of 1.75 A for reliable power delivery.
- Constructed with liquid crystal polymer housing for high durability and thermal stability.
- Contacts are made of bronze with 0.25 µm gold plating and 0.075 µm gold plated tails for corrosion resistance.
- Operates effectively within a temperature range of -55°C to 125°C.
- Designed for surface mount technology (SMT) with a body height of 4.55 mm facilitating compact assembly.
- Compatible with FTSH series micro headers and FTS series micro low profile terminal strips.
- Meets RoHS compliance ensuring environmental and health safety standards.
- Ideal for electronic components, power, and connector applications in industrial and commercial electronics.
Product Description
The Samtec FLE-105-01-G-DV is a precision-engineered PCB socket from the FLE series, designed for straight surface mounting. It features 10 contacts arranged in 2 rows with a 1.27 mm pitch, making it ideal for board-to-board connectivity in demanding electronic applications.
Featuring a housing made of liquid crystal polymer, this socket offers excellent mechanical strength and thermal performance up to 125°C. The contact system comprises bronze material with gold plating of 0.25 µm on contacts and 0.075 µm on tails, ensuring reliable conductivity and resistance against corrosion.
Rated for a current of 1.75 A, the socket supports consistent power delivery for various electronic circuits. Its surface mount termination and a compact body height of 4.55 mm facilitate easy and efficient SMT assembly on printed circuit boards.
The socket operates reliably over a broad temperature range from -55°C to 125°C, suitable for industrial, laboratory, and commercial environments. It is also RoHS compliant, reflecting adherence to environmental safety protocols.
This board-to-board FLE Series socket mates perfectly with Samtec's FTSH series micro headers and FTS series micro low profile terminal strips, enabling versatile modular design options.
Supports 10 contacts in 2-row dual-row configuration. 1.27 mm pitch ensures precise alignment and connectivity. Housing made from high-quality liquid crystal polymer for durability. Gold-plated bronze contacts and tails for superior electrical performance.
Surface mount termination type designed for SMT assembly. Wide operating temperature range from -55°C to 125°C. RoHS compliant ensuring environmentally friendly manufacturing. Compatible with Samtec FTSH micro headers and FTS low profile strips.
This PCB socket is widely used in electronics manufacturing, industrial power connections, and other applications requiring reliable, compact board-to-board interconnect solutions. Explore more Samtec PCB Sockets and connectors on EnvMart for high-quality, precision components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 1.75 A, ensuring reliable power delivery for various electronic circuits.
It operates effectively within a temperature range of -55°C to 125°C, making it suitable for industrial and commercial environments.
The contacts are made of bronze and feature gold plating of 0.25 µm on the contacts and 0.075 µm on the tails for corrosion resistance and reliable conductivity.
Yes, this PCB socket meets RoHS compliance, ensuring it adheres to environmental and health safety standards.
It is designed for surface mount technology (SMT), facilitating compact assembly on printed circuit boards.
This model features 10 contacts arranged in a 2-row configuration, with a pitch of 1.27 mm for precise alignment.
The body height of this socket is 4.55 mm, which supports efficient SMT assembly in compact spaces.
It is compatible with Samtec's FTSH series micro headers and FTS series micro low profile terminal strips, allowing for versatile modular design options.
The housing is constructed from liquid crystal polymer, providing high durability and thermal stability.
This model belongs to a board-to-board connector system, designed for reliable interconnect solutions in electronics manufacturing.
The orientation of the FLE-105-01-G-DV is straight, suitable for direct board-to-board connections.
The country of origin for this PCB socket is India.
