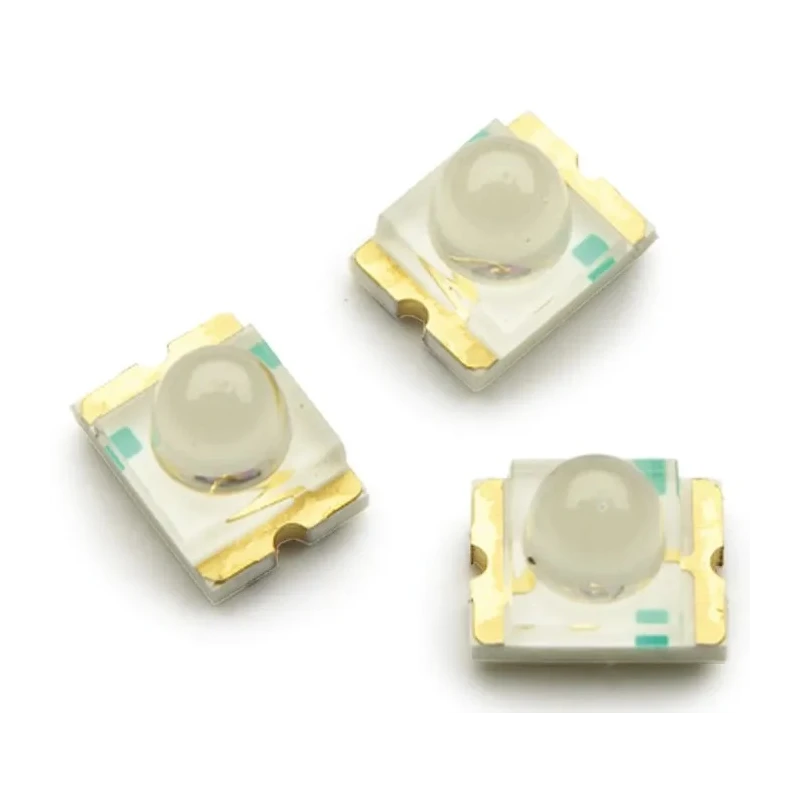

Broadcom 2 V Green LED 3224 Surface Mount High Brightness Dome Lens ASMT-BG20-AS000

Free Delivery in India | Lowest Global Shipping Charges

Broadcom 2 V Green LED 3224 Surface Mount High Brightness Dome Lens ASMT-BG20-AS000

Name: Broadcom 2 V Green LED 3224 Surface Mount High Brightness Dome Lens ASMT-BG20-AS000
Brand: Broadcom
SKU: 380560
Price: 0.24 USD
Availability: InStock



Category LED Brand Broadcom Condition New

Specifications

Country of Origin	China
Brand	Broadcom
Model	ASMT-BG20-AS000
Packaging	Tape & Reel
Mount Type	Surface
Series	ASMT
Maximum forward current	30mA
Viewing angle	15 °
Package Type	3224
Standards/Approvals	RoHS
LED Colour	Green
Dominant Wavelength	569nm
Forward Voltage	2V
Number of Pins	2
LED Luminosity	650 mcd
Lens Dimensions	3.2 x 2.4 x 2.4 mm
Lens Shape	Dome

Key Features

The LED emits green light with a dominant wavelength of 569nm.
Maximum forward current is rated at 30 mA for efficient operation.
The 3224 package features compact lens dimensions of 3.2 x 2.4 x 2.4 mm.
The viewing angle is narrow at 15 degrees, focusing brightness effectively.
Lens shape is dome with a clear finish, enhancing light output and intensity.
Packaging is tape and reel, compatible with automated machine placement.
Designed for surface mount applications with 2 pins for easy soldering.
Operating temperature range supports robust use from -40°C to +85°C.

Product Description

Broadcom ASMT-BG20-AS000 is a high-quality 2 V Green LED designed with a compact 3224 surface mount package, featuring a dome lens for superior brightness. This LED emits a green light at a dominant wavelength of 569nm, suitable for applications requiring precise and vivid illumination.

The device supports a maximum forward current of 30 mA, ensuring reliable and energy-efficient performance. Its narrow viewing angle of 15° concentrates light output, making it ideal for backlighting, status indication, and panel illumination in industrial electronics and commercial equipment.

Built with a clear, non-diffused dome lens, the LED ensures high luminosity of 650 mcd, contributing to enhanced visibility in various lighting conditions. The package dimensions of 3.2 x 2.4 x 2.4 mm make it ideal for densely populated circuit boards and compact electronic designs.

Manufactured for automated assembly, the LED comes on 8mm tape reels compatible with infrared and vapor phase soldering processes. It operates reliably over a broad temperature spectrum from -40°C to +85°C, suitable for demanding industrial environments including manufacturing, laboratory instrumentation, and electronic display systems.

This product complies with RoHS standards, reflecting Broadcom's commitment to environmental safety and sustainability. The ASMT-BG20-AS000 provides an efficient and dependable solution for lighting applications requiring small footprint LEDs with high brightness and precise color output.

Green 2 V LED with 30 mA max forward current for low power consumption. Compact 3224 surface mount package with dome-shaped clear lens. High brightness of 650 mcd and a narrow 15° viewing angle. Packaging on tape and reel for automated pick and place assembly.

Wide operating temperature range from -40°C to +85°C. RoHS compliant for environmental safety and reliability. Ideal for backlighting, status indication, and panel illumination. Compatible with infrared and vapor phase reflow soldering processes.
