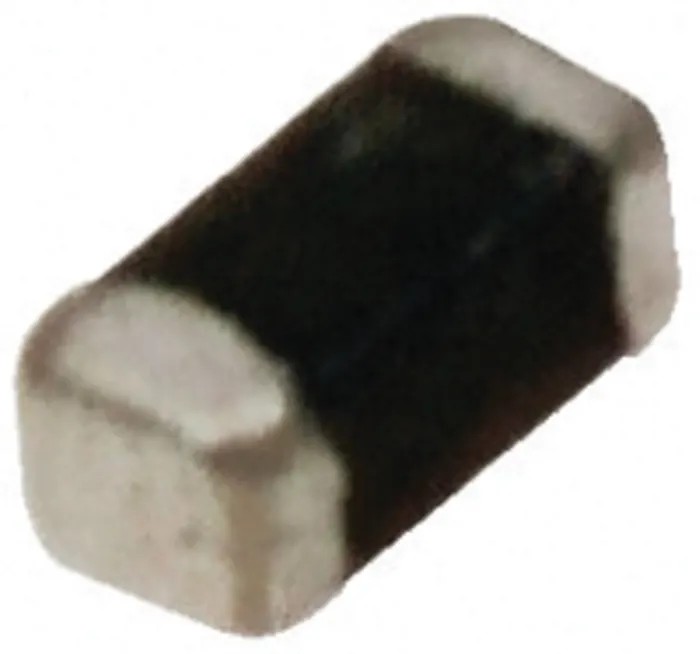

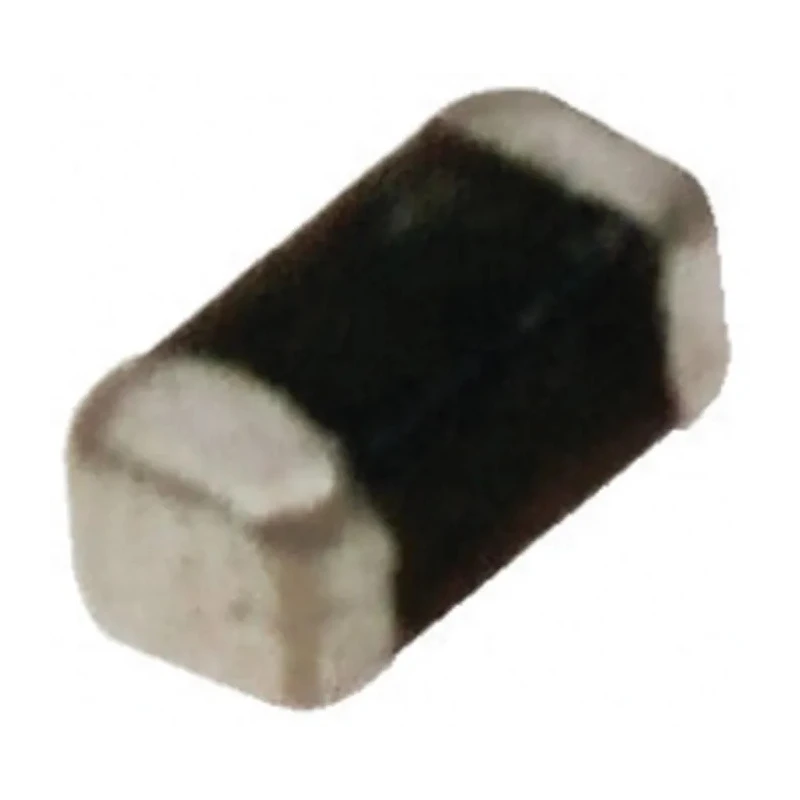

Murata 0.5 mm Solder Mount Chip Ferrite Bead 600 Ω Impedance at 100 MHz BLM15AX601SN1D

Murata BLM15AX601SN1D is a lead-free, surface-mount chip ferrite bead measuring 0.5 mm in height and depth with a 1 mm length in a 0402 package. It provides an impedance of 600 Ω at 100 MHz, making it ideal for EMI filtering and noise suppression in sensitive electronic circuits. The ferrite bead operates efficiently without distorting signal waveforms due to its design that mimics resistive behavior at noise frequencies.

The component has a current rating of 500 mA and a maximum DC resistance of 340 mΩ, making it suitable for low-current circuits. It features solder mount type with two pins and offers excellent heat resistance due to the nickel barrier on its external electrodes, ensuring durability during soldering and operation.

Operating reliably across a temperature range from -55°C to 125°C, this ferrite bead is compliant with RoHS standards, guaranteeing adherence to environmentally safe manufacturing practices. It belongs to the BLM15AX series, known for its enhanced ferrite material and improved noise suppression characteristics compared to previous models.

This chip ferrite bead is commonly used in industrial, electronics manufacturing, power connectors, and EMI filter applications where signal integrity and noise reduction are critical. It serves well in general-purpose and EMI suppression filter roles in a variety of electronic devices, ensuring performance stability in demanding industrial and commercial environments.

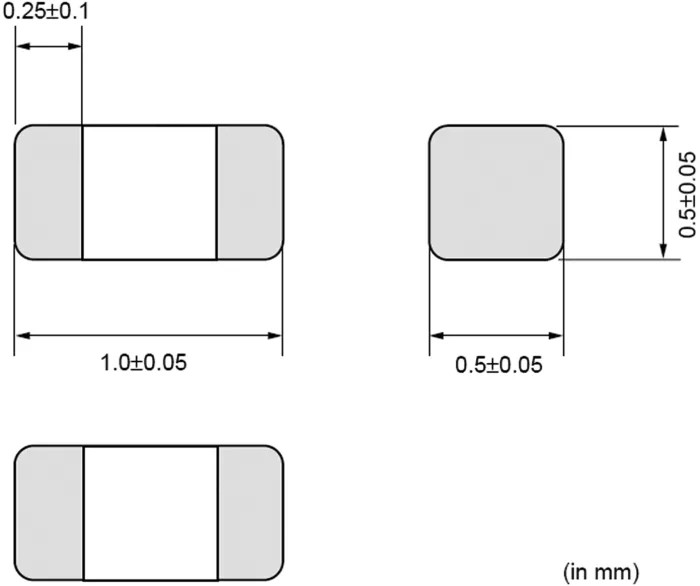

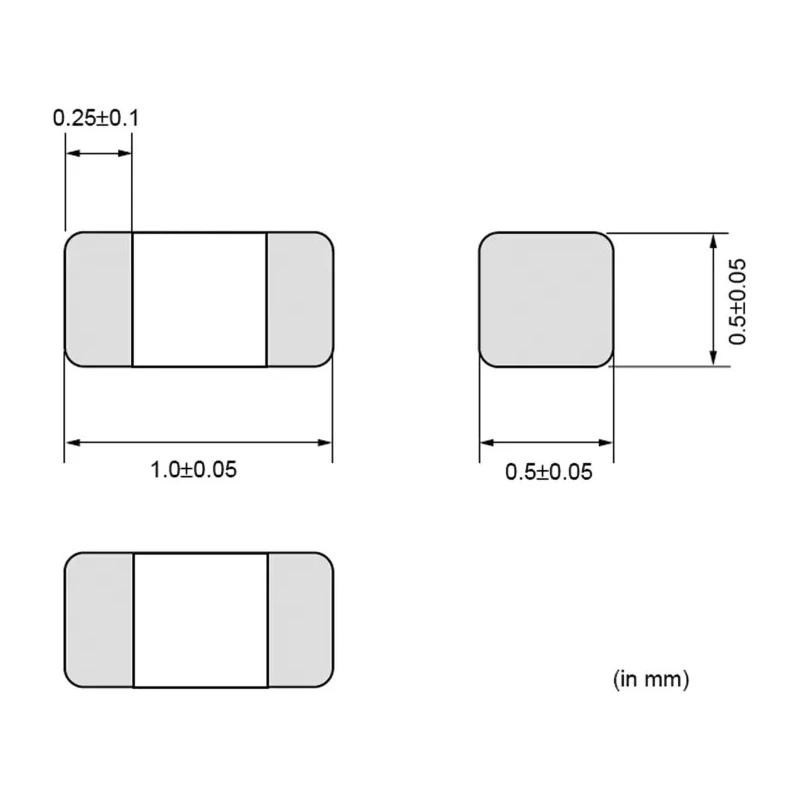

Features a 600 Ω impedance at 100 MHz for effective noise filtering. Compact 0402 package size with dimensions 1 mm length, 0.5 mm height, and 0.5 mm depth. Rated current capacity of 500 mA suitable for low-power circuit applications.

Constructed from ferrite material with solder mounting and 2 pins for surface mount technology. Operating temperature range from -55°C up to 125°C for reliable performance under thermal stress. Complies with RoHS standards ensuring environmental safety.

Designed with nickel barrier electrodes for excellent solder heat resistance and durability. BLM15AX series provides stable noise suppression with lower DC resistance of 340 mΩ. Explore the full range of Murata Ferrite Beads and electronic components available on EnvMart for your EMI filtering and noise suppression needs.
