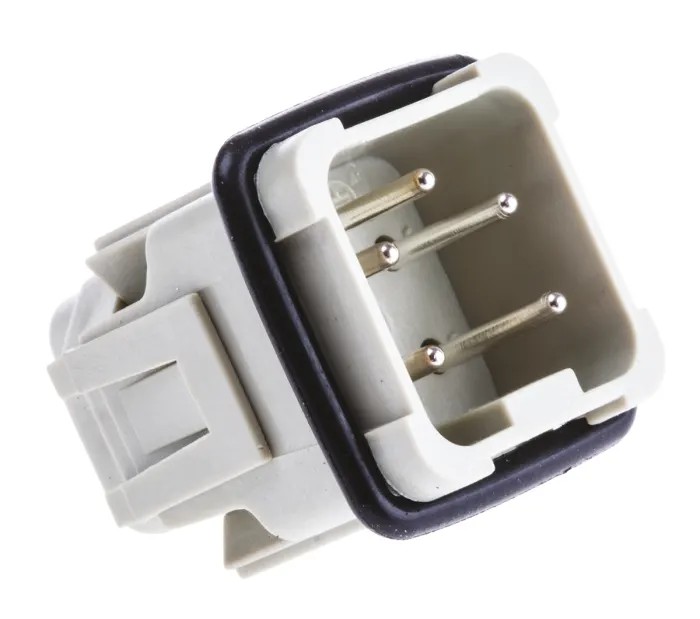

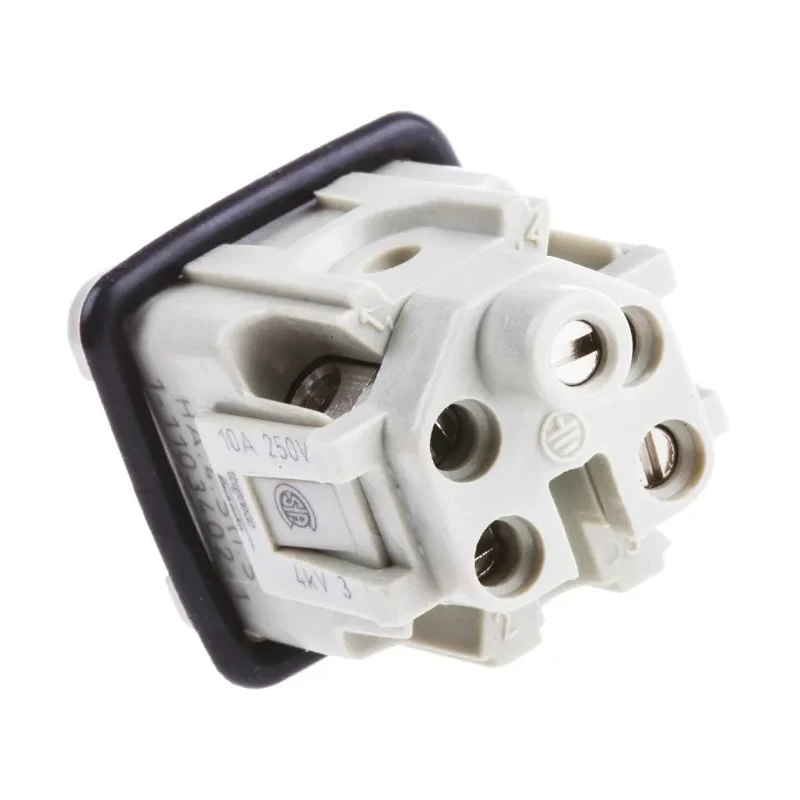

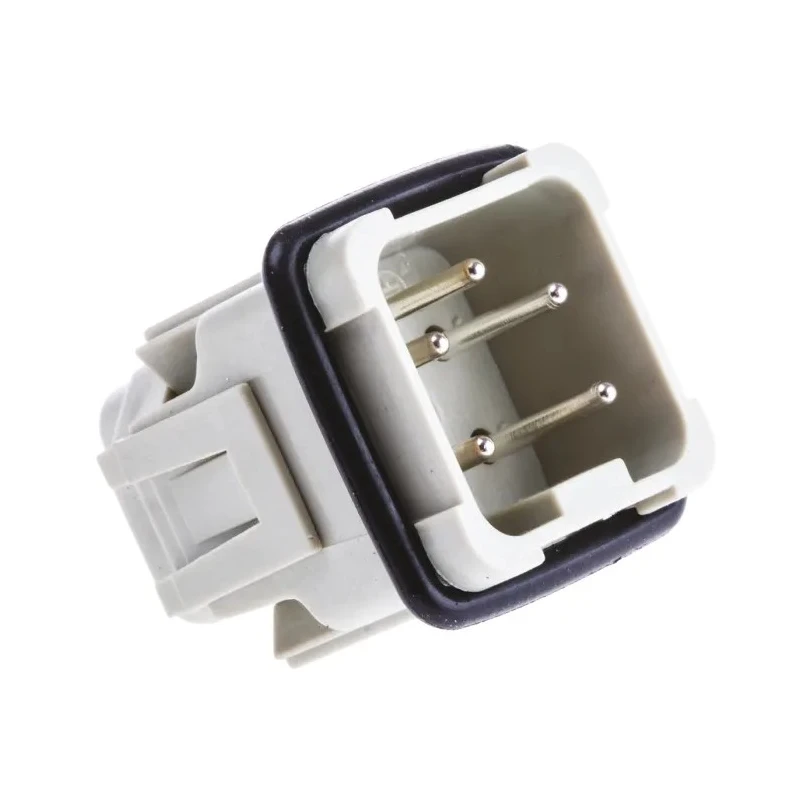

HARTING Heavy Duty Power Connector Insert Male 5 Contacts 10A HA Series 1-1103402-1

HARTING 1-1103402-1 Heavy Duty Power Connector Insert is a male HA Series connector insert designed for industrial and electronic power connectivity needs, rated at 10A current and 250V voltage. The insert features 5 contacts arranged in 3 rows, with brass material contacts plated in gold and finished in silver for enhanced electrical performance and corrosion resistance. The dielectric is made of durable polycarbonate material, colored beige, offering thermal and mechanical protection during operation.

Designed specifically for heavy duty power connectors, this insert fits standard cable hoods and base housings with a straight orientation and includes a dedicated earth contact to ensure electrical safety. It operates within a temperature range of -40°C to 125°C making it suitable for a variety of demanding industrial, manufacturing, and construction applications.

This connector adheres to recognized safety and quality standards including UL Listing, SEV, RoHS compliance, and CSA certification. It incorporates twist lock mechanisms and comes with screw and spring clamp contacts pre-installed for ease of assembly. For applications requiring crimp contacts, these pins must be ordered separately along with compatible crimping tools.

Typical use cases include power distribution, industrial machinery connections, automation equipment, and other scenarios requiring secure and reliable Power Connector Inserts. The modular design allows multiple inserts to be combined to create connectors with higher contact counts such as 32-way connectors by combining 16-way pole inserts. The sequential numbering of contacts enhances high density application wiring management.

This connector insert is rated for a current of 10A and voltage of 250V. The male connector features 5 contacts arranged in 3 rows for secure connections. Contacts are made of brass with gold plating and a silver finish for optimal conductivity and corrosion resistance.

The insert uses polycarbonate dielectric material and is beige in color. It is suitable for use with heavy duty power connectors and fits cable hoods or base housings. The connector has a straight orientation and includes separate earth contact for safety.

Operating temperature range spans from -40°C to 125°C ensuring reliability under harsh conditions. The product complies with UL Listed, SEV, RoHS, and CSA certification standards. The connector features twist lock mechanism with screw and spring clamp contacts already included.

Crimp contacts are ordered separately and compatible crimping tools are recommended for installation. Explore our selection of high-quality power connectors and heavy duty connector inserts at EnvMart for reliable industrial connectivity solutions.
