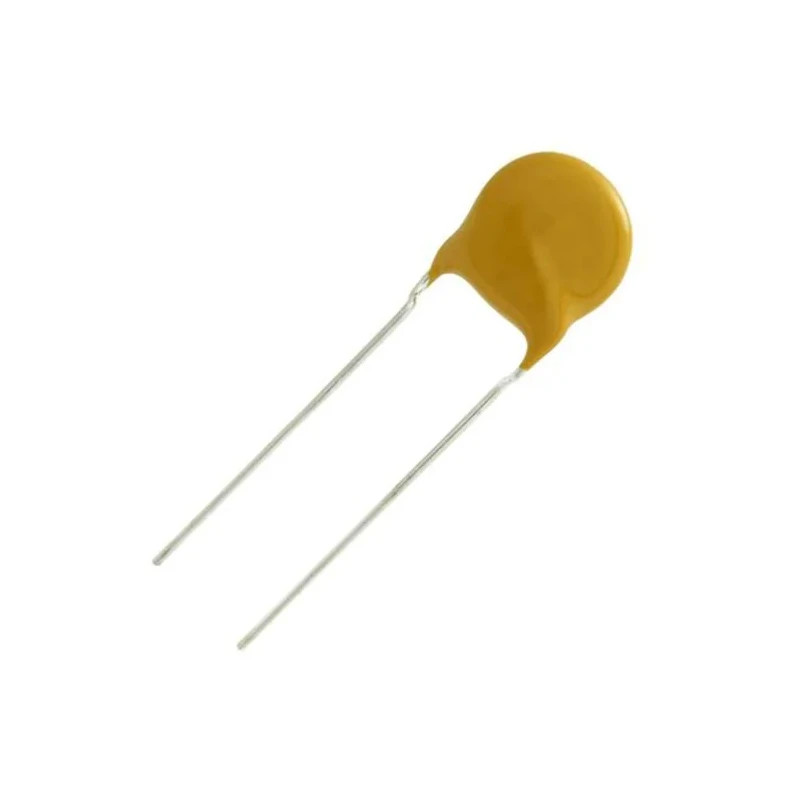

Vishay Single Layer Ceramic Capacitor 3.3 pF 1kV DC ±5% C0G Dielectric Through Hole Radial Terminal 561R10TCCV33
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV dc |
| Diameter | 6.4mm |
| Brand | Vishay |
| Model | 561R10TCCV33 |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | 561R |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 3.3pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Pin Count | 2 |
| Dielectric | C0G |
| Suppression Class | Class I |
Key Features
- Designed for through hole mounting with radial terminal type.
- Supports a maximum operating temperature of 105 °C.
- Compliance with IEC 61249-2-21, RoHS, and 2002/95/EC standards.
- Offers high reliability and stable capacitance in electronic circuits.
- Packaging available in tape & reel format for automated assembly.
- Pin count of 2 facilitates standard connection requirements.
- Minimum operating temperature is -55 °C, suitable for diverse environments.
Product Description
Vishay 561R10TCCV33 single layer ceramic capacitor is a high-quality, reliable component designed for precision electronic applications. This capacitor offers a capacitance of 3.3 pF with a voltage rating of 1kV DC, making it suitable for circuits requiring stable and accurate capacitance at high voltages.
Featuring a C0G dielectric material category, it provides excellent temperature stability and low losses, rated for operation from -55 °C to a maximum of 105 °C. This makes it ideal for applications in industrial electronics, telecommunications, laboratory instrumentation, and automotive electronics where durability and performance consistency are critical.
The component employs a through hole mounting style with radial terminal type and is packaged in tape & reel for efficient automated assembly processes. Its compact form factor, with a diameter of 6.4 mm and width of 4 mm, allows integration into densely packed circuit boards.
Compliance with IEC 61249-2-21 and RoHS directives ensures that the capacitor meets international environmental and quality standards, reinforcing its suitability for modern electronic systems.
Designed for through hole mounting with radial leads for secure PCB installation. C0G dielectric for minimal capacitance variation with temperature. High voltage rating of 1kV DC for demanding electrical environments. Operates reliably under wide temperature ranges from -55 °C to 105 °C.
Package format tape & reel supports high-volume manufacturing. Meets IEC and RoHS standards guaranteeing compliance and quality. Compact dimensions aid in space-saving electronic designs. Pin count of 2 enables standard connection capability.
This capacitor is widely used in industrial controls, automotive electronics, aerospace, communication devices, medical instrumentation, and test equipment. It provides stability and reliability in circuits where capacitance precision is paramount.
Explore more Vishay capacitors and electronic components to optimize your designs with trusted industrial-grade products available at EnvMart.
Explore more products in our Single Layer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this capacitor is 3.3 pF.
It has a maximum voltage rating of 1kV DC.
This capacitor has a diameter of 6.4 mm and a width of 4 mm.
The operating temperature range is from -55 °C to a maximum of 105 °C.
It uses a C0G dielectric, which provides excellent temperature stability and low losses.
It is packaged in tape & reel format for efficient automated assembly processes.
This model supports through hole mounting with radial terminal type.
It has a pin count of 2, facilitating standard connection requirements.
It complies with IEC 61249-2-21 and RoHS standards.
This capacitor is commonly used in industrial controls, automotive electronics, aerospace, communication devices, medical instrumentation, and test equipment.
The tolerance of the capacitance is ±5%.
The country of origin for this capacitor is India.
