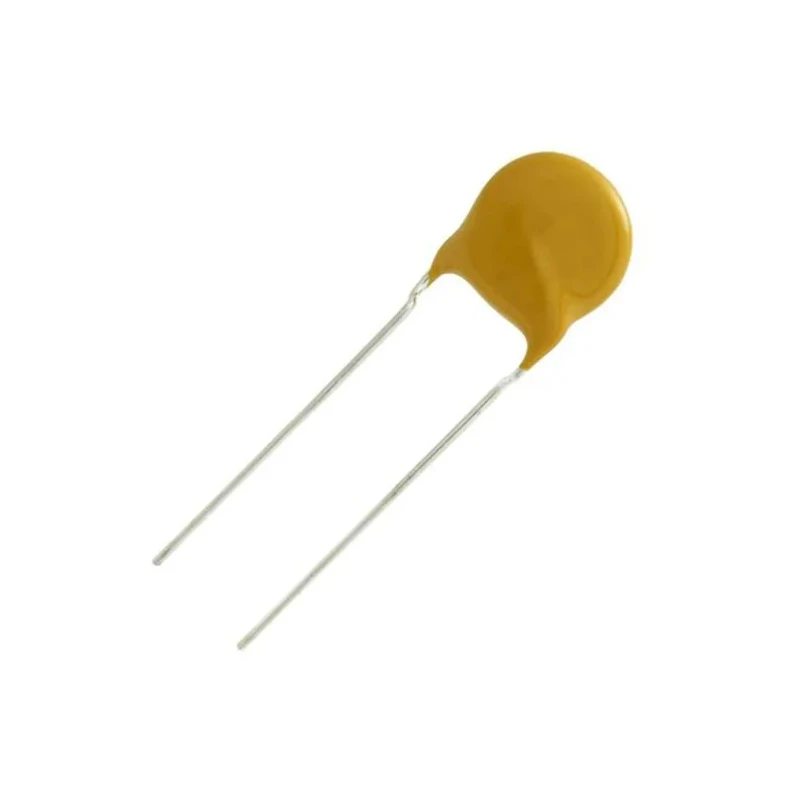

Vishay Single Layer Ceramic Capacitor 10 pF 6 kV DC ±20% Tolerance C0G Dielectric Disc Through Hole 105 °C 564R60GAQ10
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 6kV dc |
| Diameter | 10.2mm |
| Brand | Vishay |
| Model | 564R60GAQ10 |
| Packaging | Tape & Reel |
| Width | 5.6mm |
| Mount Type | Through Hole |
| Series | 564R |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 10pF |
| Minimum Operating Temperature | -25°C |
| Terminal type | Radial |
| Dissipation Factor | 0.1% |
| Standards/Approvals | RoHS |
| Package/Case | Disc |
| Pin Count | 2 |
| Dielectric | C0G |
Key Features
- Constructed with C0G dielectric for high stability and low losses.
- Disc-shaped through hole mount capacitor suitable for demanding DC applications.
- Radial terminal type with a maximum operating temperature of 105 °C.
- Manufactured with flame retardant epoxy resin coating ensuring durability and safety.
- Features tinned copper radial leads enhancing reliability and solderability.
- Certified RoHS compliant and made in the Czech Republic.
- Designed for use in lighting ballasts, switch mode power supplies, and other precision circuits.
Product Description
Vishay 564R60GAQ10 single layer ceramic capacitor is a high-quality electronic component designed for applications requiring high stability and reliability. This capacitor features a capacitance value of 10 pF and a voltage rating of 6 kV DC, with a tolerance of ±20%. It utilizes the C0G dielectric material known for its low losses and excellent temperature stability, making it ideal for precision electronics.
The capacitor has a disc package shape with through hole mounting, featuring radial terminals that simplify PCB assembly while ensuring robust mechanical and electrical connection. The component is coated with flame retardant epoxy resin, enhancing its safety in industrial environments.
Its maximum operating temperature is rated at 105 °C, which makes it suitable for a wide range of industrial and commercial electronic applications, including lighting ballasts and switched-mode power supplies (SMPS). The 564R series capacitors from Vishay are known for their high reliability and long service life under continuous operation.
With a diameter of 10.2 mm and width of 5.6 mm, it fits efficiently in compact circuit layouts. The capacitors come packaged in tape and reel format suitable for automated assembly processes.
The product complies with RoHS standards and is manufactured in the Czech Republic, ensuring compliance with environmental and quality regulations. Constructed with C0G dielectric for predictable and stable performance. ±20% tolerance ensures precise capacitance matching in critical circuits.
Coated with flame retardant epoxy resin for safety and durability. Through hole radial leads facilitate easy mounting and soldering. Suitable for industrial, laboratory, and commercial electronics applications.
This capacitor is an excellent component choice for engineers designing robust and reliable electronic circuits. Browse all Vishay capacitors and related components at EnvMart for industrial-grade passive components.
Explore more products in our Single Layer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay 564R60GAQ10 capacitor has a capacitance value of 10 pF.
This capacitor has a maximum voltage rating of 6 kV DC.
It utilizes a C0G dielectric, which is known for its low losses and excellent temperature stability.
The capacitor has a diameter of 10.2 mm and a width of 5.6 mm.
The maximum operating temperature is rated at 105 °C.
It has a tolerance of ±20%.
This model features radial terminals, which facilitate easy mounting and soldering.
It is packaged in tape and reel format, suitable for automated assembly processes.
The capacitor is certified RoHS compliant, ensuring it meets environmental regulations.
It is designed for use in lighting ballasts, switch mode power supplies, and other precision circuits.
This capacitor is manufactured in the Czech Republic.
The dissipation factor is 0.1%.
