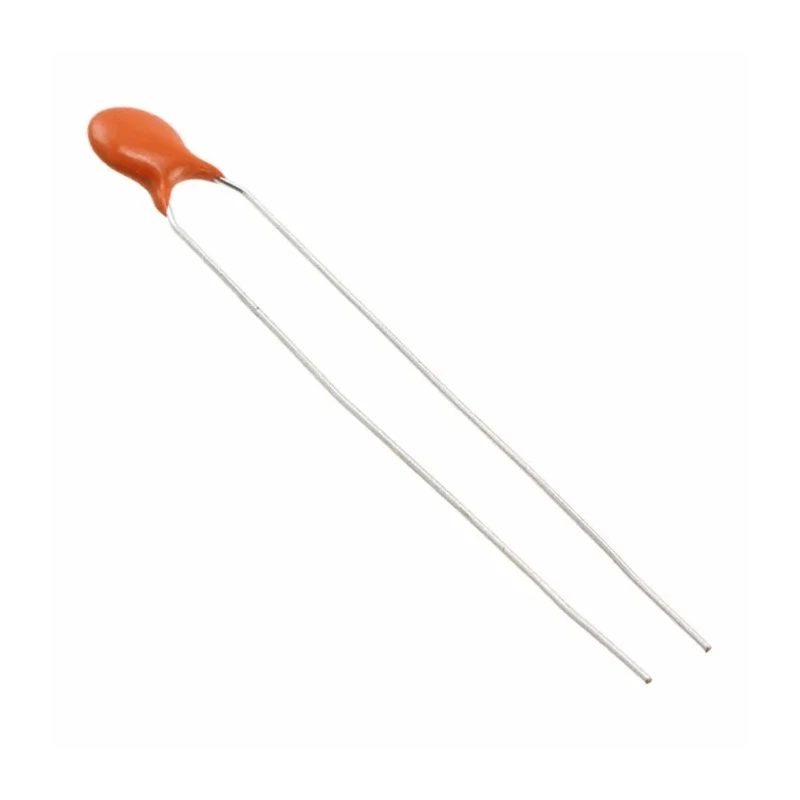

Vishay Single Layer Ceramic Capacitor 10 nF 1kV DC ±20 % Z5U Dielectric Radial Through Hole 105°C Max Op. Temp. 562R5GAS10

Vishay 562R5GAS10 is a single layer ceramic capacitor designed to provide stable electrical performance in demanding conditions with a capacitance of 10 nF and a voltage rating of 1 kV DC.

This capacitor uses a Z5U dielectric material, offering high capacitance values with low losses, making it suitable for bypassing, resonant circuits, and coupling applications in DC electronic circuits.

Its radial terminal type and through hole mounting style ensure robust mechanical and electrical connectivity on printed circuit boards. The capacitor features a compact disc package with precise dimensions of 12.4 mm diameter and 4 mm width, ideal for space-constrained layouts.

Rated for operation in extreme temperature ranges from -55°C to 105°C, it maintains performance reliability in harsh environments. Delivered in tape & reel packaging, it facilitates efficient high-volume automated PCB assembly processes.

With a dissipation factor of only 0.1 %, the capacitor reduces energy losses and enhances overall circuit efficiency. Manufactured in the Czech Republic, it complies with RoHS standards, ensuring environmentally friendly production and use.

Operates reliably at temperatures from -55°C to 105°C. Radial terminal type with through hole mounting for secure PCB attachment. Compact disc package with 12.4 mm diameter and 4 mm width dimensions. Delivered in tape & reel packaging optimized for automated assembly.

Features a dissipation factor of 0.1 % ensuring low energy loss. Compliant with RoHS standards for hazardous substance restriction. Manufactured in the Czech Republic with high-quality silver-plated ceramic disc construction.

Designed for bypassing, resonant circuits, and coupling in DC applications.

This capacitor is ideal for industrial electronics manufacturing, laboratory equipment, telecommunications, automotive electronic systems (non-automotive standard), and consumer electronics.
