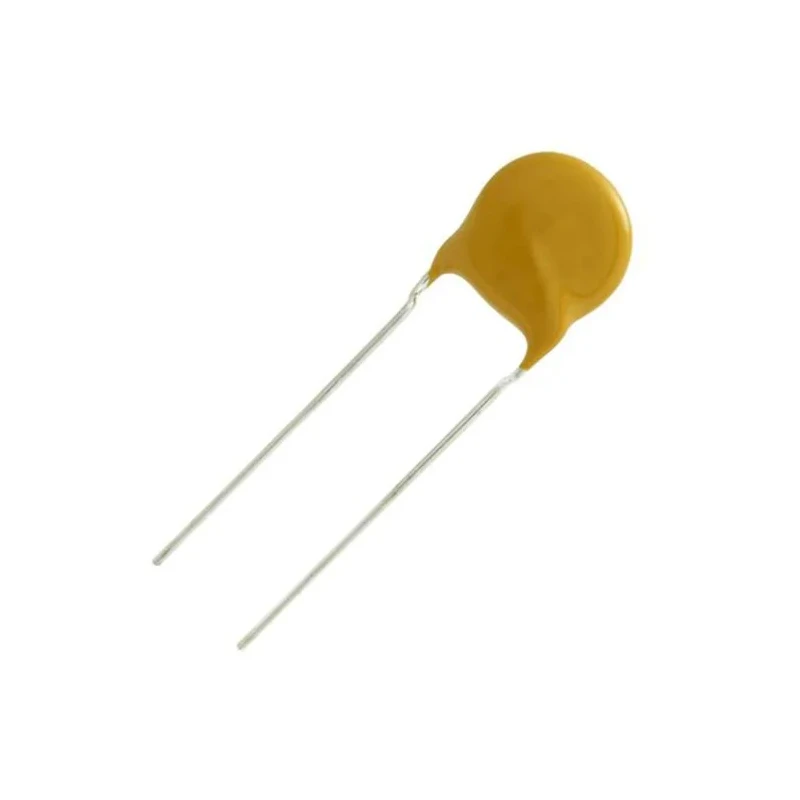

Vishay Single Layer Ceramic Capacitor 47 pF 1kV DC ±5% C0G Dielectric Through Hole Radial Terminal 561R10TCCQ47
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV dc |
| Diameter | 11.2mm |
| Brand | Vishay |
| Model | 561R10TCCQ47 |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | 561R |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 47pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.1% |
| Pin Count | 2 |
| Dielectric | C0G |
| Suppression Class | Class I |
Key Features
- Capacitance of 47 pF ensuring precise electrical characteristics.
- Through hole mounting type with radial terminal design for robust PCB integration.
- Uses stable C0G Class I dielectric with low dissipation factor of 0.1%.
- Operates reliably at temperatures from -55°C up to 105°C maximum.
- Packaged in tape and reel format enabling automated assembly.
- Complies with RoHS and IEC 61249-2-21 standards for quality and environmental safety.
- 561R series known for excellent quality and high reliability in electronic circuits.
- Ideal for industrial, electronic components, power and control applications.
Product Description
Vishay 561R10TCCQ47 Single Layer Ceramic Capacitor is designed for high precision electronic circuits requiring stable capacitance and durability. This capacitor has a capacitance of 47 pF and supports a high DC voltage rating of 1kV, making it suitable for demanding environments where voltage surges are possible.
The device features a through hole mounting type with radial terminals, enhancing mechanical stability on printed circuit boards. Its C0G dielectric material, classified as Class I, delivers excellent temperature stability and low dielectric loss with a dissipation factor of only 0.1%. This ensures minimal signal distortion and reliable long-term performance.
Operating temperature range from -55°C to a maximum of 105°C allows deployment in diverse industrial and commercial electronic systems. Packaged in tape and reel, this capacitor supports efficient automated pick-and-place assembly processes, making it compatible with modern manufacturing standards.
The 561R series capacitors from Vishay comply with international quality and environmental standards, including RoHS and IEC 61249-2-21, assuring users of their safety and regulatory adherence. With a diameter of 11.2mm and width of 4mm, the component offers a compact footprint for use in dense circuit designs.
47 pF capacitance delivers precise electrical performance. 1kV DC voltage rating suitable for high-voltage circuits. Through hole mounting with radial terminals for secure PCB mounting. C0G dielectric ensures temperature stability and low losses.
Wide operating temperature range from -55°C to 105°C. Compliant with RoHS and IEC standards for safety and environmental protection. Tape & reel packaging supports automated manufacturing. 561R series known for quality and reliability in passive components.
Compact dimensions of 11.2mm diameter and 4mm width.
Ideal for industrial electronics, power supplies, and precision applications, this Vishay single layer ceramic capacitor supports stable and high-performance circuit designs. Explore more capacitors and electronic components on EnvMart to optimize your projects.
Explore more products in our Single Layer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 47 pF, ensuring precise electrical characteristics for high-performance applications.
It has a maximum voltage rating of 1kV DC, making it suitable for high-voltage circuits.
This capacitor uses a C0G dielectric, classified as Class I, which provides excellent temperature stability and low dielectric loss.
The capacitor has a diameter of 11.2mm and a width of 4mm, providing a compact footprint for circuit designs.
It operates reliably within a temperature range from -55°C to a maximum of 105°C.
It is packaged in tape and reel format, which supports efficient automated pick-and-place assembly processes.
This model features through hole mounting with radial terminals, enhancing mechanical stability on printed circuit boards.
The tolerance rating for this capacitor is ±5%, allowing for some variation in capacitance.
It has a low dissipation factor of 0.1%, which helps minimize signal distortion and ensures reliable performance.
This capacitor belongs to the 561R series, known for its quality and reliability in electronic circuits.
Yes, it complies with RoHS and IEC 61249-2-21 standards for quality and environmental safety.
It is ideal for industrial electronics, power supplies, and precision applications, supporting stable and high-performance circuit designs.
