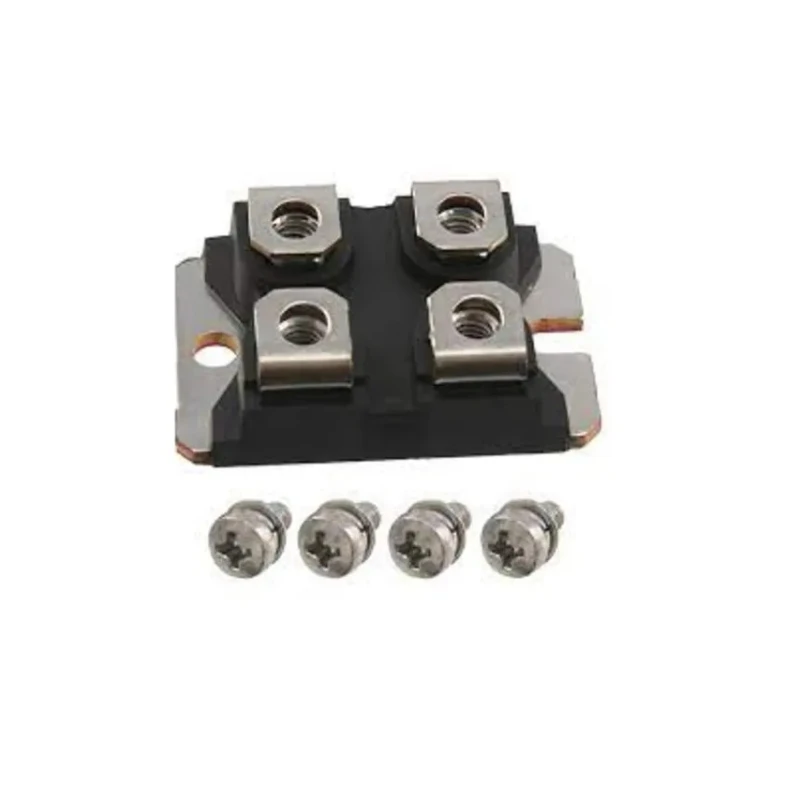

STMicroelectronics 45 V 240 A Dual Schottky Diode, 4-Pin ISOTOP STPS24045TV

STMicroelectronics STPS24045TV is a dual power Schottky rectifier packaged in a 4-pin ISOTOP configuration, engineered for demanding industrial and electronic applications.

Operating at a maximum continuous forward current of 240 A and a peak reverse voltage rating of 45 V, this diode is specifically designed for high-frequency, low-voltage switched-mode power supplies and DC to DC converters.

The device exhibits very low conduction losses due to its low forward voltage drop, making it highly efficient for power electronics where thermal performance is critical. Its compact dimensions (38.2mm length, 25.5mm width, 9.1mm height) and panel mounting type allow easy integration into power modules and assemblies.

Additional features include avalanche capability, low thermal resistance, and a broad operating temperature range from -65°C to 150°C, ensuring reliability under harsh conditions. With a peak non-repetitive forward surge current rating of 1.5 kA, it can withstand transient surges commonly encountered in power electronics systems.

The diode features very low forward voltage drop for reduced conduction losses. Designed for use in switched mode power supplies and high-frequency DC-DC converters. Contains avalanche capability with low thermal resistance ensuring durability.

Designed to operate within a temperature range of -65°C to 150°C. Ideal for free-wheeling, polarity protection, and low voltage inverter applications. Compact package dimensions of 38.2mm length, 25.5mm width, and 9.1mm height.

The device provides isolated diode configuration with 4 pins for easy mounting on panels. Peak non-repetitive forward surge current of 1.5 kA for transient conditions. Maximum forward voltage is 910 mV, supporting efficient power rectification.

Comes with a peak reverse current of 300 mA and a peak reverse repetitive voltage of 45 V.

This diode is suitable for industrial power rectification, electronics manufacturing, automotive electronics (non-automotive standard), and other applications requiring high efficiency and thermal stability.
