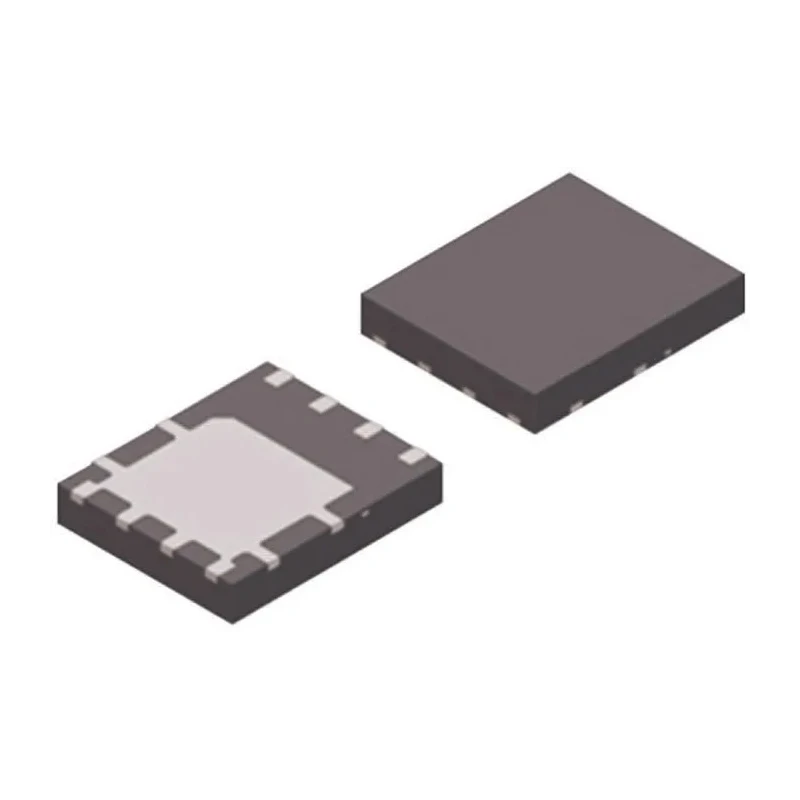

STMicroelectronics 30 V 30 A Surface Mount Schottky Barrier Diode PowerFLAT 8-Pin STPS30L30DJF-TR

STMicroelectronics STPS30L30DJF-TR is a high-performance surface mount Schottky Barrier Diode designed to deliver superior electrical characteristics under demanding conditions. Rated at 30 V reverse voltage and 30 A continuous forward current, this diode offers excellent conduction and fast recovery performance for power management in electronic circuits.

The PowerFLAT 8-pin package ensures reliable surface mounting along with efficient thermal dissipation beneficial for industrial and commercial electronic applications. With a low forward voltage drop of 510 mV, this diode enhances energy efficiency in switching power supplies, voltage clamping, and freewheeling diode roles.

This diode can withstand surge currents up to 250 A, making it suitable for transient load conditions common in power electronics and automotive circuits. The operational temperature span from -65°C to 150°C makes it adaptable to a broad range of environments including harsh industrial and automotive applications.

The compact physical footprint (6.15 mm length, 5.2 mm width, 0.95 mm height) supports dense PCB designs without compromising performance.

Common applications include power rectification in power supplies, inverters, motor control, and renewable energy systems. The stable electrical ratings and package form factor ease the design integration process.

The diode features a PowerFLAT 8-pin package suitable for surface mounting. Maximum continuous forward current is rated at 30 amperes for robust current handling. Offers a peak reverse repetitive voltage of 30 volts ensuring operational safety.

Peak non-repetitive forward surge current of 250 amperes supports transient currents. Low maximum forward voltage drop of 510 millivolts improves efficiency. Wide operating temperature range from -65°C to 150°C accommodates harsh environments.

Pin count of 8 facilitates stable mounting and electrical connections. Peak reverse current limited to 230 milliamperes reducing leakage losses. The diode has dimensions of 6.15 mm length, 5.2 mm width, and 0.95 mm height for compact PCB layouts.
