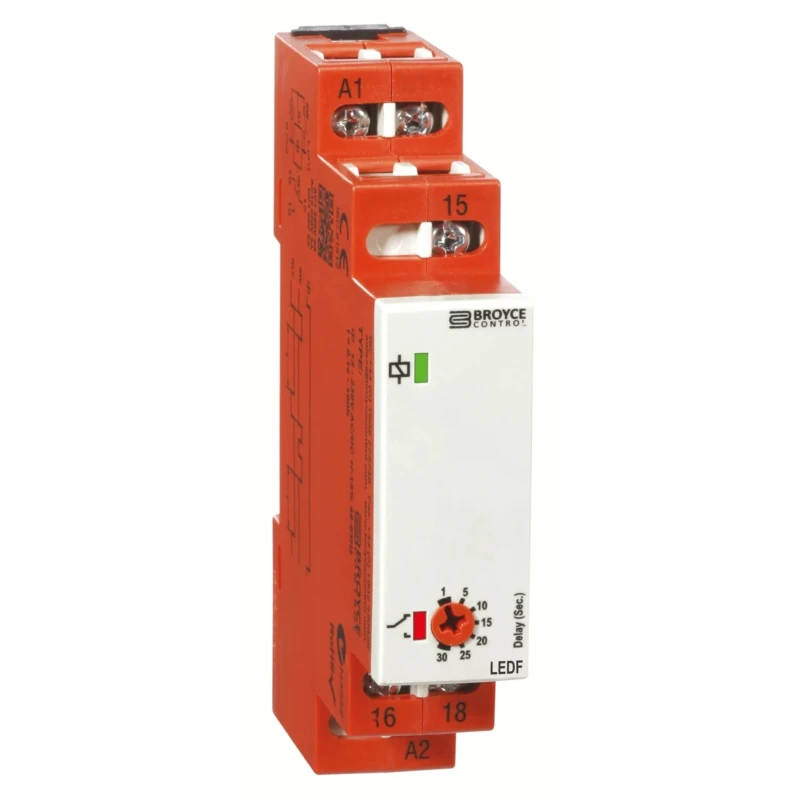

Broyce Control LEDF Series DIN Rail Timer Relay, 1-Contact, SPDT, 24 V DC/110 V AC/24 V AC LEDF 24VAC/DC/110VAC. 0.5-10 Sec
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Broyce Control |
| Height | 66.5mm |
| Length | 89mm |
| Model | LEDF 24VAC/DC/110VAC. 0.5-10 Sec |
| Mode | Power-Off Delay |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | LEDF |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.5 to 10 s |
| Terminal type | Screw |
| Standards/Approvals | IEC, UL, CE |
| Number of Contacts | 1 |
| Number of Timer Functions | 1 |
| Contact Current | 8A |
| Supply DC Voltage | 24 V dc |
| Timing Adjustment | Screwdriver Slot |
| Supply AC Voltage | 110, 24V ac |
Key Features
- Equipped with a true off delay timing function for delayed deactivation.
- Dual voltage input supporting 24 V DC, 110 V AC, and 24 V AC supply.
- Compact 17.5 mm DIN rail mountable housing designed for efficient space utilization.
- Constructed with screw terminal connections for secure and reliable wiring.
- Operating temperature range from -20°C to 60°C ensures robust performance.
- Contact current rated at 8 Amperes for versatile load handling.
- Green LED indicator to display supply status clearly.
- Standards compliant with IEC, UL, and CE certifications for safety and quality assurance.
Product Description
Broyce Control LEDF 24VAC/DC/110VAC. 0.5-10 Sec DIN Rail Timer Relay is a reliable and compact timing device designed for industrial and automation applications. Featuring a true off delay timer with a timing range adjustable from 0.5 to 10 seconds, this relay ensures precise control for delayed switching off operations.
This timer relay supports dual voltage inputs including 24 V DC, 110 V AC, and 24 V AC, enabling versatile deployment in various electrical environments. Its 1 SPDT contact configuration with an 8 A contact current rating supports numerous control and switching needs.
The unit mounts easily on standard DIN rails with a slim 17.5 mm profile and secure screw terminal connections for ease of installation and maintenance. With operational temperature ranging from -20°C to 60°C and compliance with IEC, UL, and CE standards, the LEDF Series provides durable and safe operation in industrial and commercial setups.
The green LED supply indicator offers clear visual feedback on relay status, enhancing operational monitoring and troubleshooting. Dimensions of 89 mm length, 17.5 mm width, and 66.5 mm height facilitate compact panel integration.
True Off Delay timing function with adjustable range. Dual voltage input suitable for AC and DC supplies. 1 SPDT contact rated for 8 A loads. Screw terminals for secure electrical connections. Compact DIN rail mount design.
Operational temperature range from -20°C to 60°C. Green LED indicator to show supply status. Compliance with IEC, UL, and CE standards. Applications include industrial automation, HVAC, manufacturing, and process control.
This timer relay is manufactured in the United Kingdom and meets high-quality industrial standards. It is suitable for engineering, industrial automation systems, control gear, and electrical signaling devices.
Explore additional Broyce Control Timer Relays and automation components available in EnvMart’s extensive industrial electrical catalog for your specialized requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timing range of the LEDF 24VAC/DC/110VAC timer relay is adjustable from 0.5 to 10 seconds.
This timer relay supports dual voltage inputs of 24 V DC, 110 V AC, and 24 V AC.
The unit features a single SPDT (Single Pole Double Throw) contact configuration.
The contact current rating for this model is 8 Amperes.
The dimensions of the LEDF timer relay are 89 mm in length, 17.5 mm in width, and 66.5 mm in height.
The operating temperature range is from -20°C to 60°C.
This timer relay is designed for DIN rail mounting, featuring a compact 17.5 mm profile.
It is equipped with screw terminal connections for secure and reliable wiring.
The LEDF timer relay complies with IEC, UL, and CE standards for safety and quality assurance.
The green LED indicator displays the supply status, providing clear visual feedback on the relay's operational status.
It is suitable for applications in industrial automation, HVAC, manufacturing, and process control.
The timing adjustment is made using a screwdriver slot for precise control.
