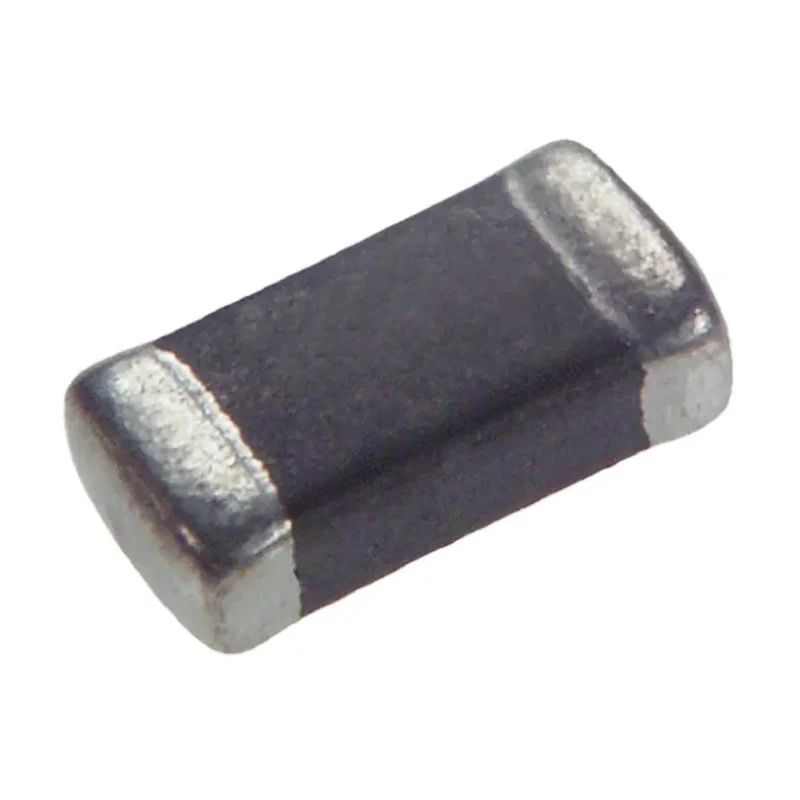

TDK Ferrite Bead 0.6 mm Surface Mount Chip Bead 0603 Package 120 Ω Impedance at 100 MHz MMZ1608B121CTAH0

Free Delivery in India | Lowest Global Shipping Charges

TDK Ferrite Bead 0.6 mm Surface Mount Chip Bead 0603 Package 120 Ω Impedance at 100 MHz MMZ1608B121CTAH0



Category Ferrite Bead Brand TDK Condition New

Specifications

Country of Origin	Japan
Brand	TDK
Height	0.6mm
Length	1.6mm
Model	MMZ1608B121CTAH0
Depth	0.8mm
Packaging	Taping
Mount Type	Surface
Current Rating	600mA
Series	MMZ
Maximum Operating Temperature	125°C
Package Type	0603
Sub Type	Chip Bead
Minimum Operating Temperature	-55°C
Standards/Approvals	Compatible with lead-free solders, Halogen-Free, RoHS Directive
Maximum DC Resistance	0.15Ω
Impedance at 100 MHz	120Ω

Key Features

This 0603 package multilayer chip bead enhances high frequency noise suppression.
Its compact size (1.6 mm length, 0.6 mm height, 0.8 mm depth) enables dense mounting on PCBs.
Rated for a maximum current of 600 mA with a low DC resistance of 0.15 Ω.
Suitable for lead-free soldering and meets RoHS and halogen-free standards.
Operates over a temperature range from -55°C to 125°C for reliable performance.
Magnetically shielded design reduces interference among components.
Ideal for EMI noise filtering in cellular phones, audio devices, and portable electronics.

Product Description

TDK MMZ1608B121CTAH0 Ferrite Bead is a high-performance 0.6 mm surface mount chip bead in the 0603 package, providing 120 Ω impedance at 100 MHz for effective EMI noise suppression. It is a multilayered, magnetically shielded component designed to allow high density mounting on printed circuit boards.

The bead's internal conductor design minimizes floating capacitance and improves high-frequency characteristics, making it suitable for applications requiring noise reduction in the GHz range.

With a compact size of 1.6 mm length, 0.6 mm height, and 0.8 mm depth, this chip bead ensures space efficiency in densely packed electronic assemblies. It supports a current rating of 600 mA and demonstrates a low maximum DC resistance of 0.15 Ω, assuring minimal signal loss.

Compliant with lead-free soldering, RoHS directive, and halogen-free standards, it supports environmentally responsible manufacturing processes. The operating temperature range from -55°C to 125°C allows it to function reliably in harsh industrial and consumer electronics environments.

Typical applications include suppression of signal line noise in cellular phones, portable audio players, digital still cameras, and other portable electronic devices, improving overall electromagnetic compatibility.

This multilayer chip bead is magnetically shielded for improved EMI suppression. Compact 0603 package supports dense mounting on PCBs. Effective impedance of 120 Ω at 100 MHz ensures high-frequency noise reduction. Current rating of 600 mA and low DC resistance reduce signal degradation.

Wide operating temperature range from -55°C to 125°C for diverse applications. Compatible with lead-free soldering and meets RoHS and halogen-free compliance. Commonly used in signal line noise suppression in portable and mobile electronics.

Applications cover industrial, commercial, and telecommunications equipment manufacturing, ensuring improved signal integrity and compliance with EMI regulations. Explore more electronic components and passive devices suitable for EMI filtering at EnvMart.
