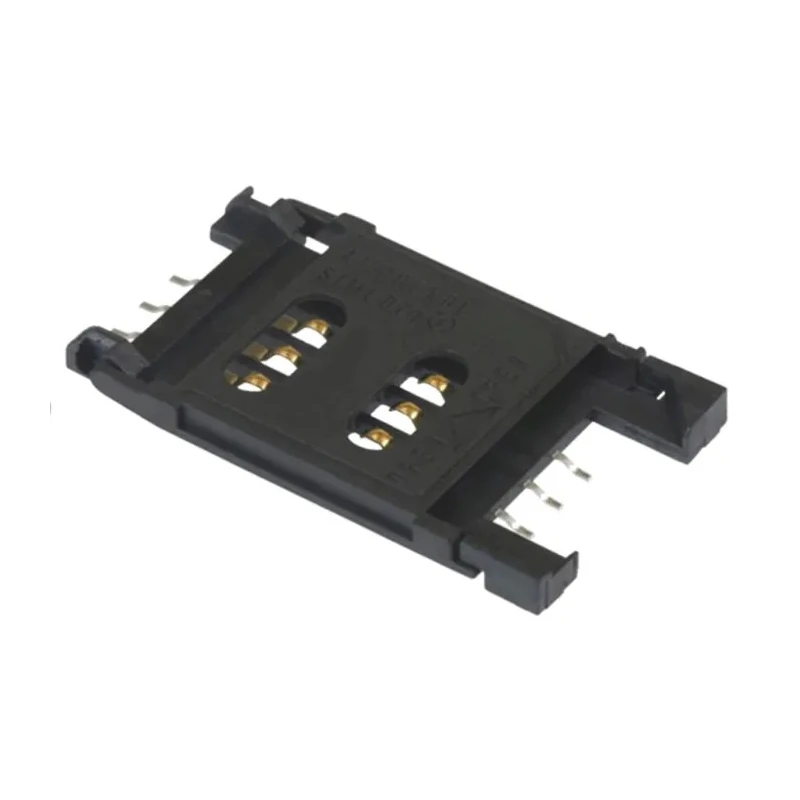

Hirose ID1 Series 6 Way Right Angle SIM Memory Card Connector, Surface Mount, Solder Termination ID1A-6S-2.54SFB(81)

Hirose ID1A-6S-2.54SFB(81) is a Memory Card Connector belonging to the ID1 series, designed primarily for SIM cards. This connector features a compact and miniature design with a 6-contact layout arranged in one row and a contact pitch of 2.54 mm. It has a right angle orientation, making it ideal for space-constrained applications in portable terminals and GSM devices that use standard SIM cards.

The connector's contacts are made of phosphor bronze and are plated with gold to ensure excellent conductivity and resistance to wear and corrosion. The housing is made from synthetic resin, providing durability and insulation, while accommodating operating temperatures ranging from -30°C to 80°C.

The surface mount type with solder terminations allows for easy and secure mounting on printed circuit boards, enhancing manufacturing efficiency. A slide lock feature securely locks the SIM card in place, preventing dislodgement or incorrect insertion thanks to a polarizing boss design.

This Hirose Memory Card Connector is suitable for industrial, electronics manufacturing, communication devices, and portable equipment applications requiring reliable SIM card interfacing.

This connector has 6 contacts arranged in a single row suitable for SIM card applications. The pitch between contacts is 2.54 mm, ensuring precise contact placement. It uses phosphor bronze contacts with gold plating for durability and corrosion resistance.

A synthetic resin housing offers good insulation and thermal stability up to 80°C maximum operating temperature. The right angle orientation enables space-saving PCB layouts in electronic devices. Designed with a slide lock system to securely hold the SIM card and prevent incorrect insertion.

Terminations are solder-type to facilitate surface mounting on printed circuit boards. Operating temperature range is -30°C to 80°C, making it suitable for various environments.

This connector is manufactured in Japan and represents high-quality engineering conforming to modern electronic component standards. It is recommended for deployment in electronics components inventory for applications involving GSM standards, memory card connections, and compact electronic modules.
