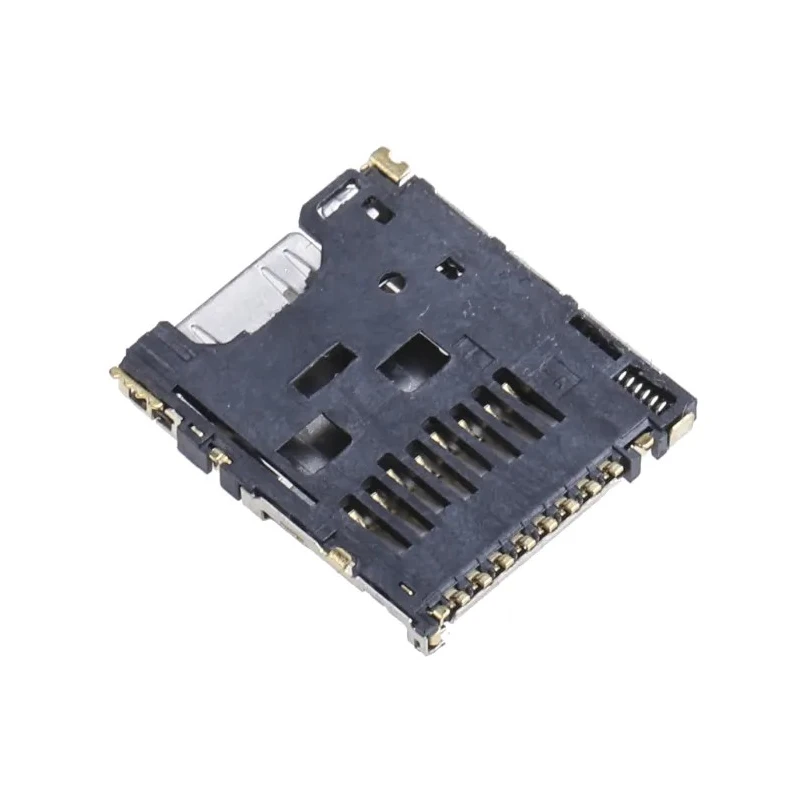

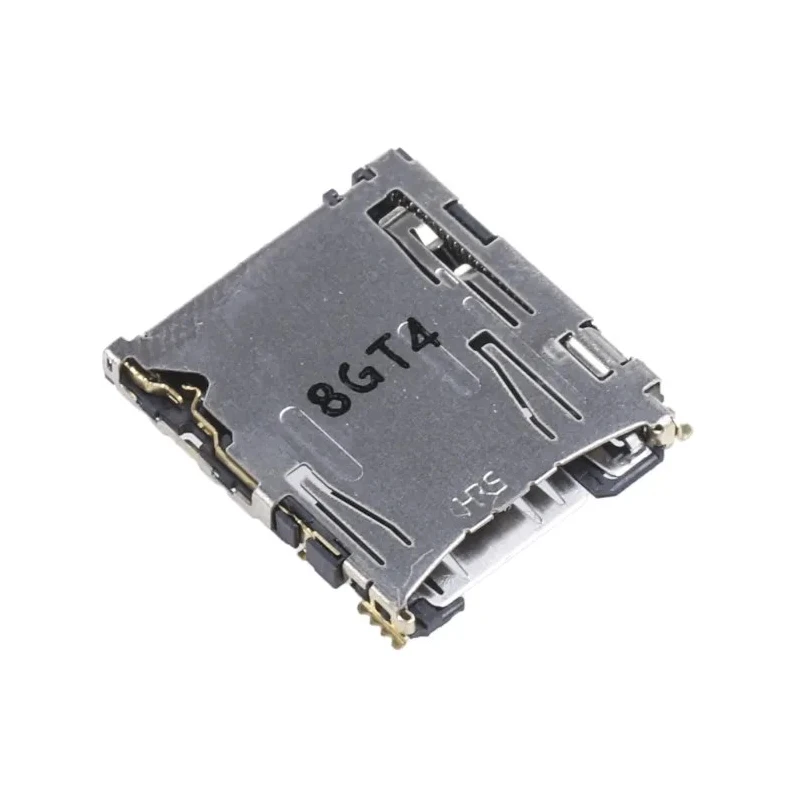

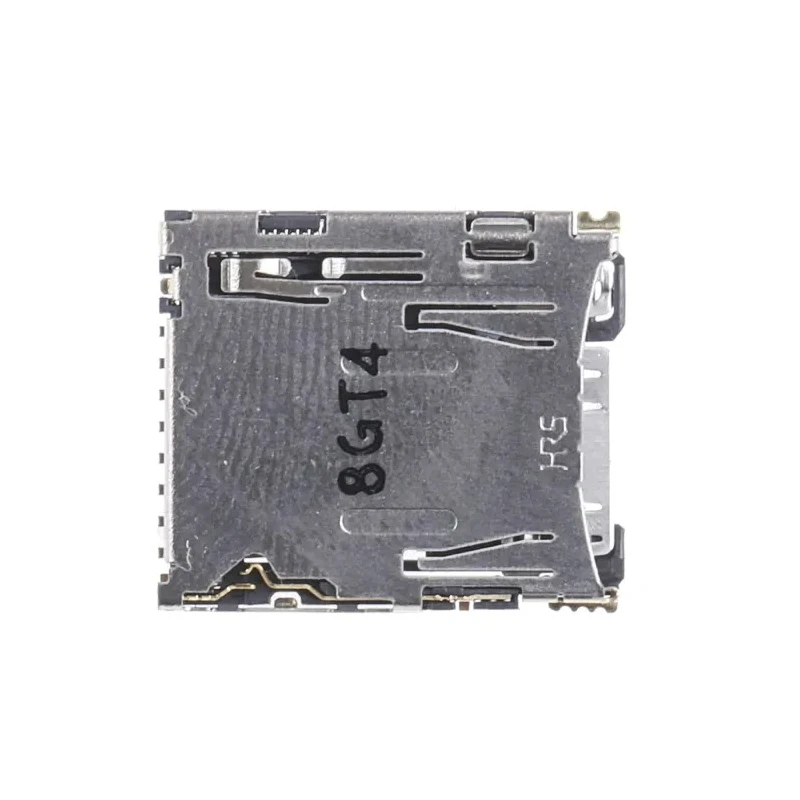

Hirose 8 Way Right Angle Push-Push MicroSD Memory Card Connector, Solder DM3AT-SF-PEJM5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hirose |
| Orientation | Right Angle |
| Model | DM3AT-SF-PEJM5 |
| Gender | Female |
| Mount Type | Surface |
| Housing Material | Stainless Steel |
| Contact Material | Copper Alloy |
| Series | DM3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1.1mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Card Type | MicroSD |
| Insertion/Removal Method | Push-Push |
Key Features
- Features a gold-plated copper alloy contact material for reliable signal transmission.
- Includes 8 contacts arranged in a single row with a 1.1 mm pitch.
- Strong and rigid stainless steel housing provides robust protection and EMI shielding.
- Operates reliably in temperatures from -25°C to 85°C.
- Incorporates reverse card insertion protection and a normally open card detection switch for safety and functionality.
- Termination type is solder compatible for SMT assembly.
- Right angle orientation optimizes PCB space usage.
- Manufactured in China adhering to the Hirose DM3 series standard.
Product Description
Hirose DM3AT-SF-PEJM5 is an 8 way right angle push-push MicroSD memory card connector designed for surface mount technology (SMT) applications. It provides a robust connection interface for MicroSD cards with its strong stainless steel housing and gold-plated copper alloy contacts that ensure excellent signal integrity and corrosion resistance.
The connector’s push-push mechanism allows secure insertion and removal of MicroSD cards with user-friendly ejection capabilities while preventing reverse card insertion to avoid damage.
It features 8 electrical contacts arranged in a single row with a 1.1mm pitch, designed to mate reliably with female MicroSD cards. The stainless steel housing not only offers enhanced mechanical durability but also secures the ground connection through four metal cover contact points, providing EMI protection for sensitive electronic systems.
Operating temperature range from -25°C to 85°C makes this connector suitable for use in various industrial, electronic, and embedded applications requiring reliable memory card interfaces under diverse environmental conditions.
The connector also includes a normally open card detection switch that helps in detecting the card’s presence, aiding automated device functions. Gold-plated copper alloy contacts improve conductivity and prevent oxidation.
Push-push ejection mechanism facilitates easy card handling. Surface mount termination compatible with automated PCB assembly. Rigid stainless steel housing enhances durability and EMI protection. Compact right angle orientation fits space-constrained circuit boards.
Designed for industrial and commercial electronics requiring secure memory card interfaces. It is ideal for use in electronics manufacturing, embedded systems, and communication devices requiring reliable memory card connectivity.
Explore more Memory Card Connectors and electronic components at EnvMart to find the perfect fit for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose DM3AT-SF-PEJM5 operates reliably in temperatures ranging from -25°C to 85°C.
This model features 8 electrical contacts arranged in a single row with a 1.1 mm pitch.
It is designed to support MicroSD cards, providing a reliable connection interface for them.
The termination type is solder, making it compatible with surface mount technology (SMT) assembly.
The housing is made from stainless steel, which provides robust protection and EMI shielding.
Yes, it incorporates reverse card insertion protection to avoid damage to the connector and the card.
It features a push-push mechanism that allows for secure insertion and easy removal of MicroSD cards.
The contacts are made from gold-plated copper alloy, which enhances conductivity and prevents oxidation.
This connector has a right angle orientation, optimizing PCB space usage.
It is suitable for industrial, electronic, and embedded applications requiring reliable memory card interfaces.
It includes a normally open card detection switch that helps in detecting the card’s presence, aiding automated device functions.
This connector is manufactured in China, adhering to the Hirose DM3 series standard.
