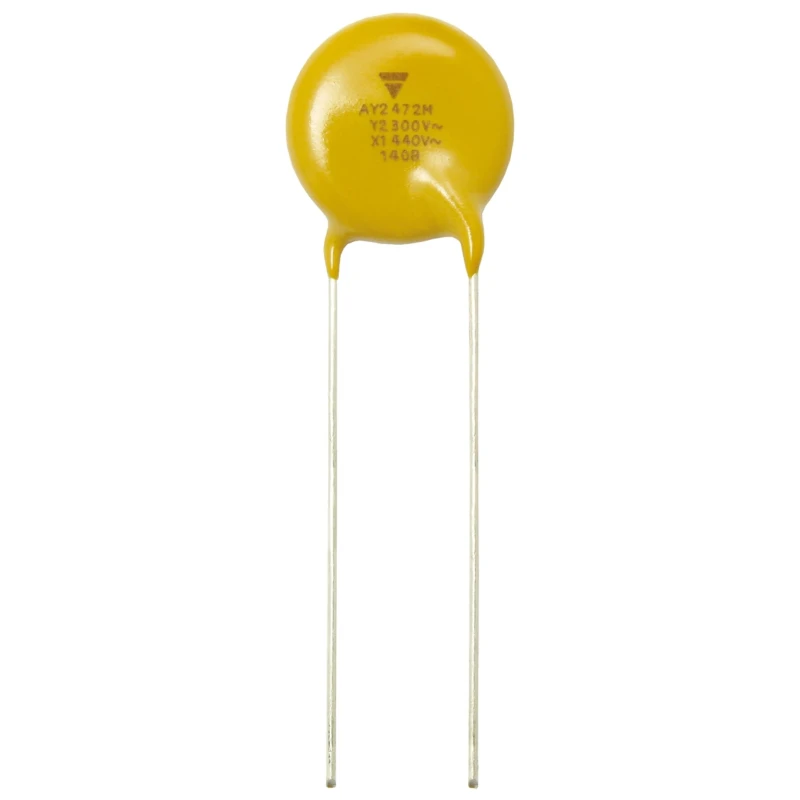

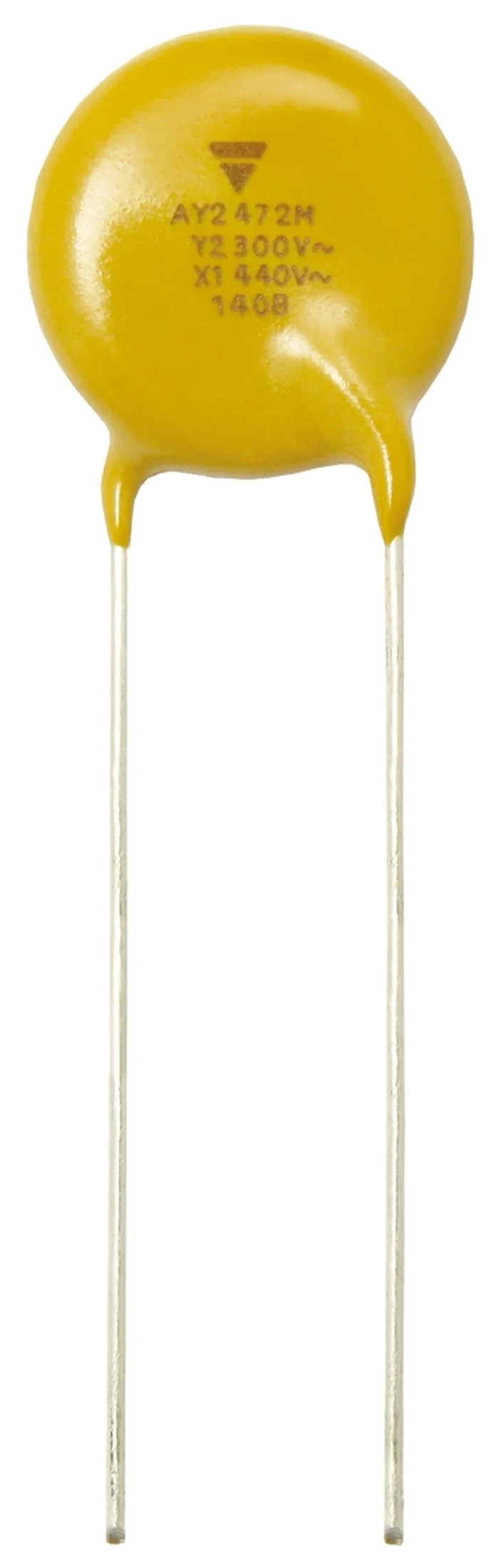

Vishay Single Layer Ceramic Capacitor 680 pF 440V AC ±20% Y5U Dielectric AY2 Series Through Hole Radial AY2681M29Y5US63L7
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 440V ac |
| Diameter | 7.5mm |
| Brand | Vishay |
| Height | 10.5mm |
| Length | 5mm |
| Model | AY2681M29Y5US63L7 |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | AY2 |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±20 % |
| Capacitance | 680pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 2.5% |
| Standards/Approvals | EC, RoHS |
| Pin Count | 2 |
| Dielectric | Y5U |
| Suppression Class | Y2/X1 |
Key Features
- This capacitor is rated for AC applications with a maximum operating temperature of 125°C.
- Features through hole mount type with radial terminal pins for secure connection.
- Capacitance tolerance is ±20%, suitable for various industrial and automotive applications.
- Diameter measures 7.5mm with a height of 10.5mm and width and length of 5mm each.
- Complies with IEC 60384-14 safety standard and certified EC and RoHS compliant for quality assurance.
- Dissipation factor is 2.5%, supporting stable performance under AC line conditions.
- Capacitor is designed for use in AC line filtering, on-board chargers, battery management in electric vehicles, and high-quality industrial electronics.
- Pin count is 2, enabling easy installation in electronic circuits.
Product Description
Vishay AY2681M29Y5US63L7 single layer ceramic capacitor is engineered with a 680 pF capacitance and a 440V AC voltage rating. Part of the AY2 series, this capacitor utilizes a Y5U dielectric, providing stable performance at temperatures up to 125°C. Designed for through hole mounting with radial terminals, it ensures secure mechanical and electrical connections in electronic assemblies.
This capacitor meets IEC 60384-14 safety standards and is EC and RoHS compliant, guaranteeing automotive and industrial-grade quality. Its ±20% capacitance tolerance balances precision with cost-effectiveness, suitable for AC line filtering, on-board chargers, and battery management systems in both electric and hybrid vehicles.
Measured dimensions include a 7.5 mm diameter, 10.5 mm height, and a 5 mm width and length, fitting compact PCB footprints. The device has a dissipation factor of 2.5%, highlighting its efficiency in high-frequency AC applications.
Typical applications cover automotive electronics, industrial controls, and power electronics where reliable capacitive performance and prolonged lifetime are critical. The AY2 series is known for enduring over 2000 temperature cycles without failure, doubling the AEC-Q200 standard requirements.
This capacitor features a 2-pin radial terminal design for easy insertion and soldering. Its suppression class is Y2/X1 making it suitable for AC line voltage filtering and EMI suppression. Operating temperature ranges from -55°C minimum to 125°C maximum for versatile environmental performance.
Offers robust dielectric characteristics with high reliability and long service life for demanding applications. Typical uses include electronic power supplies, automotive battery management, and industrial machinery control circuits.
Explore the Vishay category on EnvMart for more quality Single Layer Ceramic Capacitors and related electronic components designed for precision and reliability in industrial and automotive environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitor has a capacitance of 680 pF, making it suitable for various applications.
It is rated for a maximum voltage of 440V AC, which is suitable for AC applications.
The operating temperature range is from -55°C to 125°C, allowing for versatile environmental performance.
The capacitor has a diameter of 7.5 mm, a height of 10.5 mm, and both width and length of 5 mm.
It features a through hole mount type with radial terminal pins for secure connection in electronic circuits.
The capacitance tolerance is ±20%, which balances precision with cost-effectiveness.
The dissipation factor is 2.5%, indicating its efficiency in high-frequency AC applications.
Yes, it complies with IEC 60384-14 safety standards and is certified EC and RoHS compliant.
It is suitable for AC line filtering, on-board chargers, battery management in electric vehicles, and industrial electronics.
This model has a pin count of 2, allowing for easy installation in electronic circuits.
It utilizes a Y5U dielectric, providing stable performance under specified conditions.
The suppression class is Y2/X1, making it suitable for AC line voltage filtering and EMI suppression.
