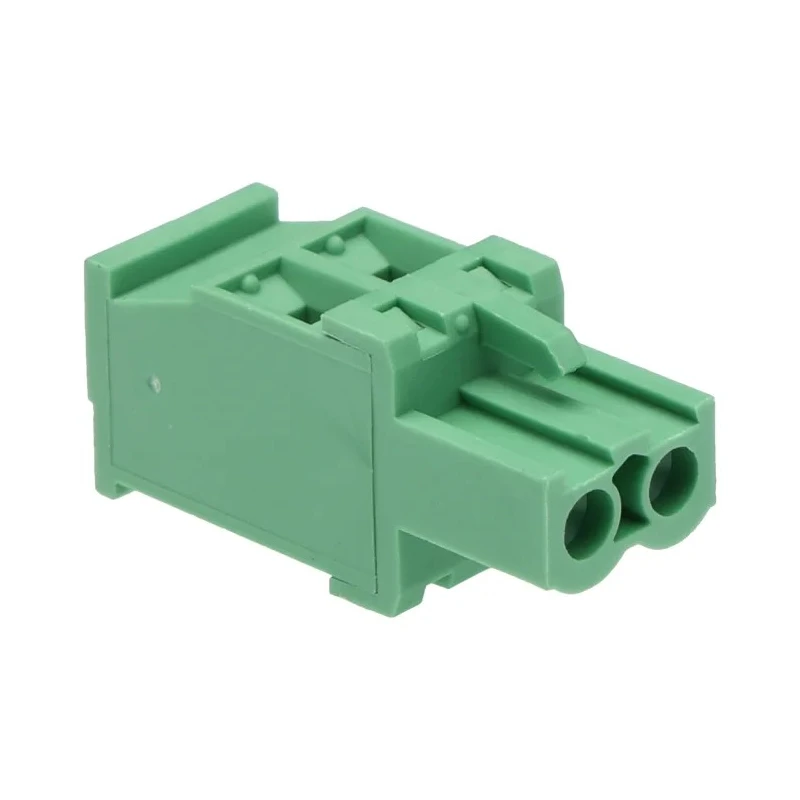

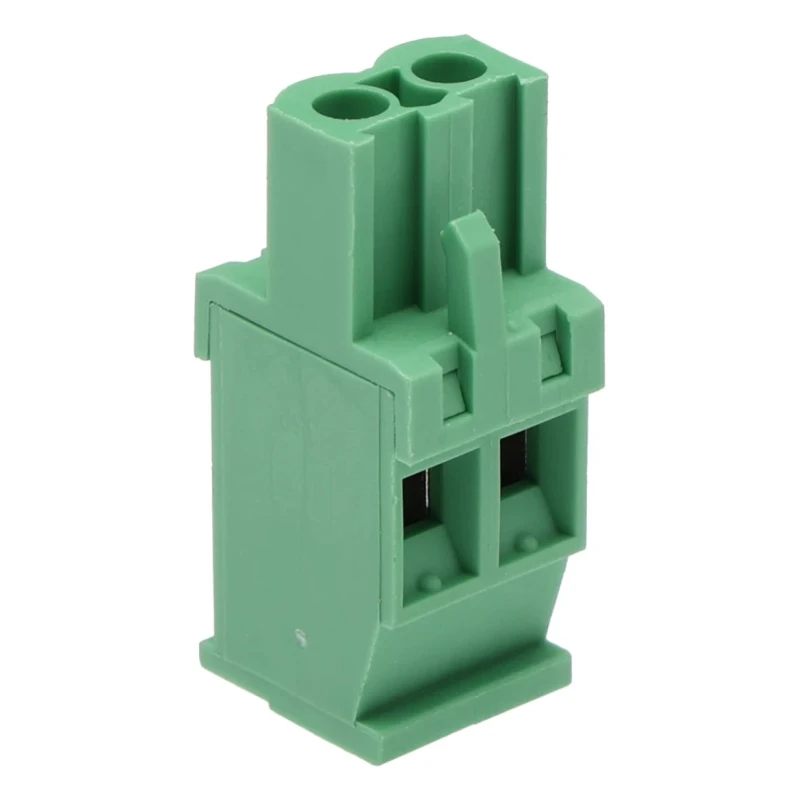

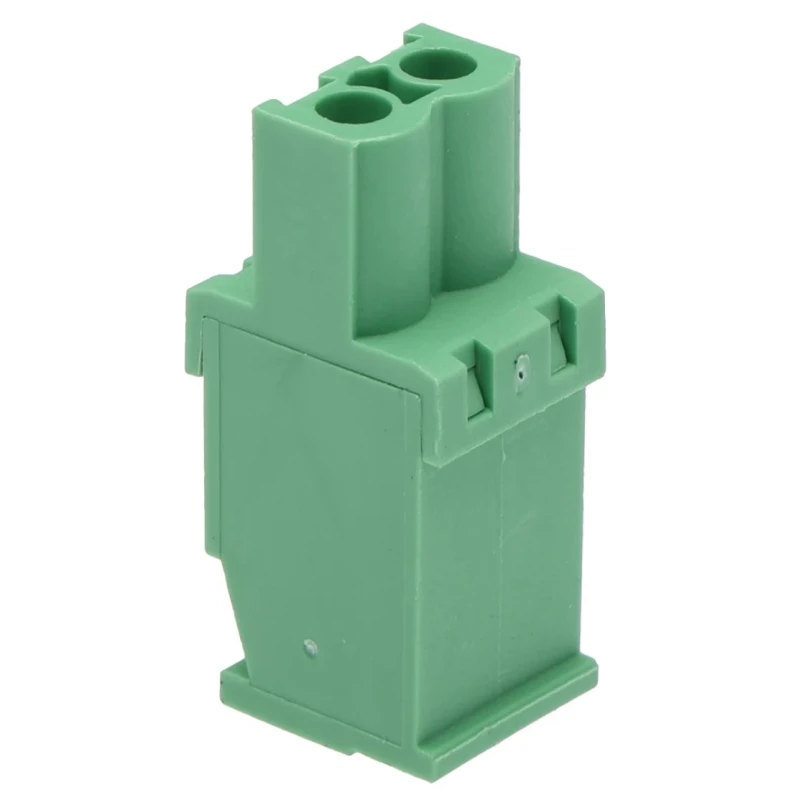

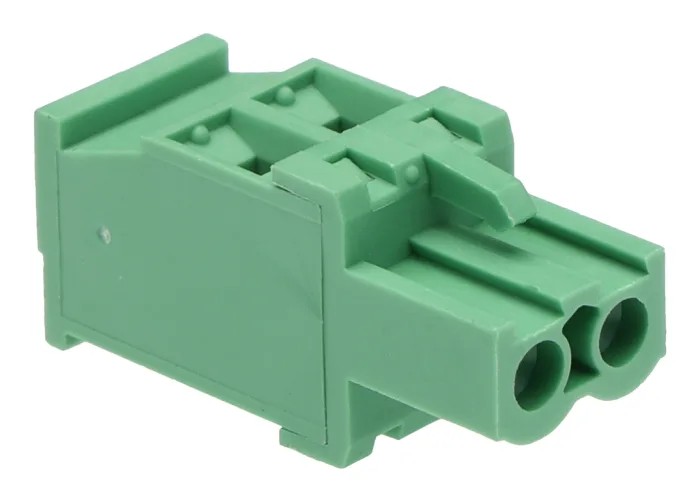

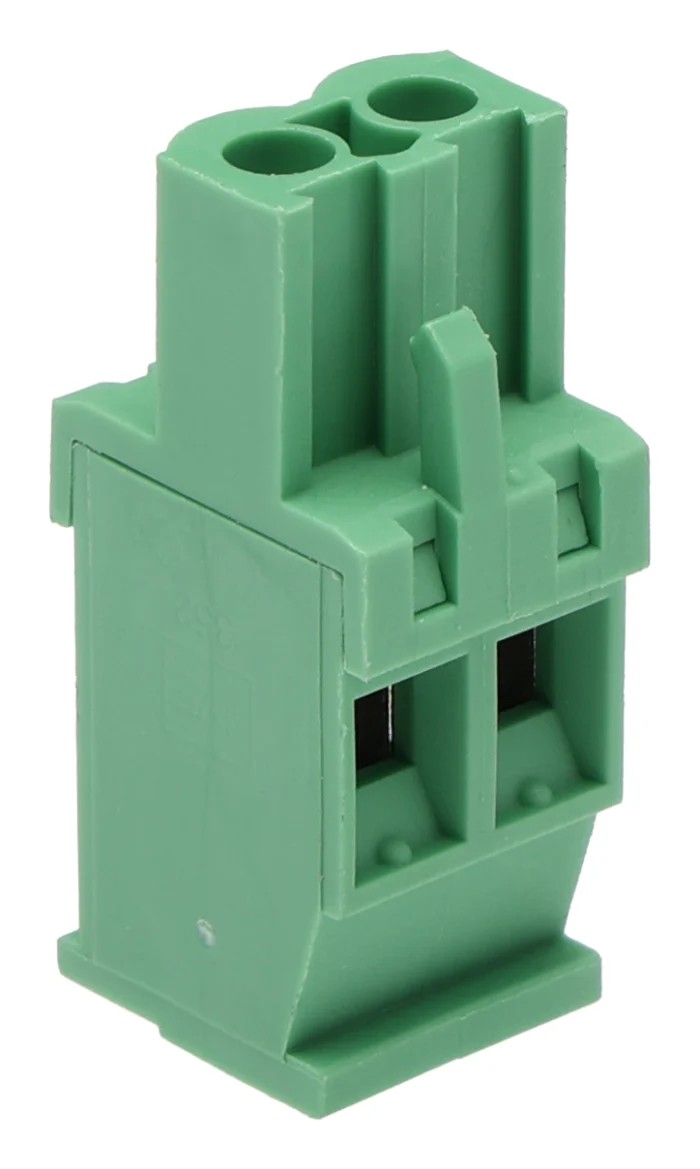

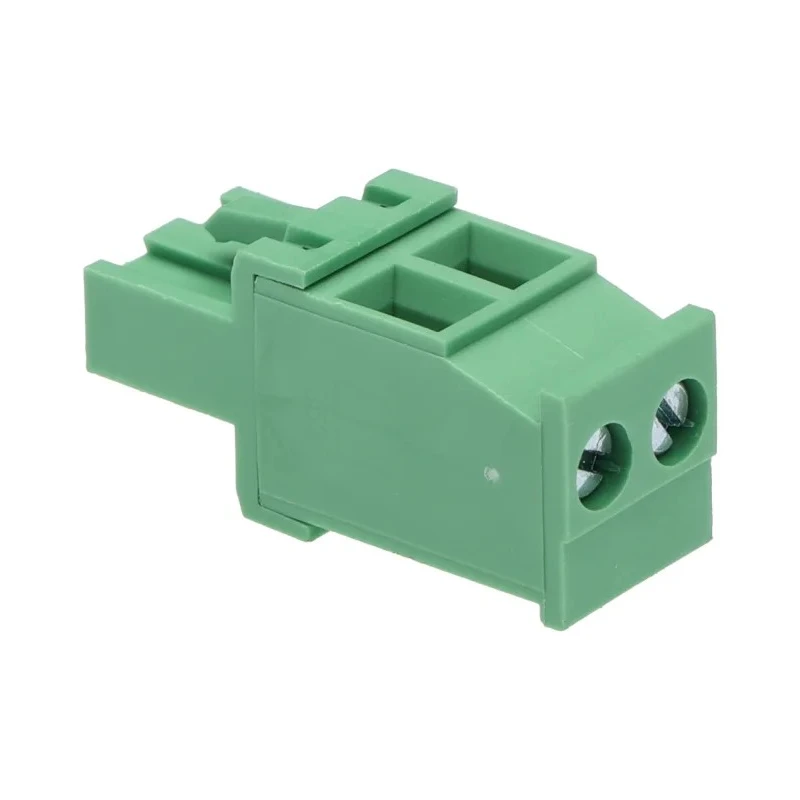

Wurth Elektronik 352 Series Pluggable Terminal Block 2-Contact 5.08 mm Pitch 1 Row 300V AC 17A 691352510002

Wurth Elektronik 691352510002 pluggable terminal block is a 2-contact, 5.08 mm pitch, 1 row connector designed for secure cable connections in electrical and electronic assemblies. Rated at 300V AC and 17A, this terminal block is ideal for power connector applications requiring reliable electrical contact and mechanical stability.

The product features a green polyamide housing that meets UL94-V0 flammability standards, providing excellent insulation and fire resistance. The wire connection method employs a cable entry with a slot-type M3 screw terminal, supporting wire sizes from 24 AWG (0.21 mm²) up to 12 AWG (3.31 mm²). This design enables flexible compatibility with various wire gauges used in industrial, manufacturing, and automation systems.

With compact dimensions of 10.16 mm in length, 12.6 mm in width, and 26 mm in depth, the terminal block is suitable for horizontal cable mounting applications. A retention latch on the wire side ensures a secure fit, while the tin-plated phosphor bronze wire guard improves electrical conductivity and resistance to corrosion, extending product life in demanding environments.

These Pluggable Terminal Blocks find extensive use in industrial automation, control panels, electronic devices, and power distribution systems where compact, high-quality electrical connections are necessary. The product's design emphasizes ease of installation, durability, and compliance with relevant safety standards.

Constructed with green polyamide housing compliant with UL94-V0 standards. Supports wire sizes from 24 AWG to 12 AWG, or 0.21 mm² to 3.31 mm². Features a straight orientation cable entry connection method for easy wiring.

Includes a retention latch and M3 screw terminal slot for secure wire fastening. Compact dimensions of 10.16 mm length, 12.6 mm width, and 26 mm depth. Wire guard made of tin-plated phosphor bronze enhances conductivity and durability.

Designed for horizontal cable mount with female sockets for reliable electrical contact. Manufactured in China with high-quality materials ensuring industrial-grade performance. Explore the wide range of Wurth Elektronik power connectors on EnvMart for quality and reliability in your electronic and electrical projects.
