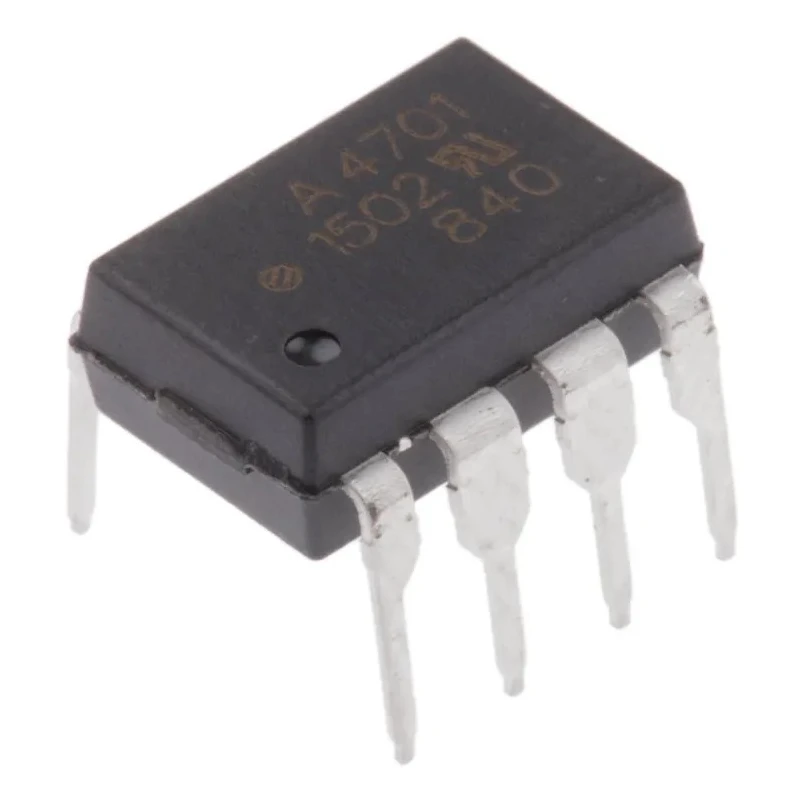

Broadcom AC/DC Input Optocoupler Through Hole, 8-Pin DIP HCPL-4701-000E

Broadcom HCPL-4701-000E is an AC/DC input optocoupler designed with a through-hole mounting style in an 8-pin DIP package. It features a Darlington transistor output which provides a high current transfer ratio with low input current requirements. The device employs light emitting diodes (LEDs) optically coupled with integrated high gain photodetectors, enabling excellent input-output common mode transient immunity. It guarantees reliable performance across a temperature range from -40°C to 85°C.

This optocoupler supports a maximum forward voltage of 1.5V and maximum input current of 10mA, making it efficient for various signal isolation applications. The device offers a high isolation voltage of 3750Vrms, ensuring safety and robust electrical isolation between input and output circuits.

Typical applications include ground isolation for most logic families, low input current line receivers, EIA RS-232C line receivers, telephone ring detection circuits, and line voltage status indicators. The product is compliant with international standards such as UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA for quality and safety assurance.

Features AC/DC input current compatibility for versatile applications. Open collector output type supporting 1 channel operation. Maximum forward voltage of 1.5V ensuring low power loss. High isolation voltage of 3750Vrms for effective circuit separation.

Wide operating temperature range from -40°C to 85°C. High current transfer ratio between 700% minimum and 8000% maximum. Packaged in tube or tape & reel suitable for automated assembly. Complies with UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA standards.

This optocoupler is ideal for industrial, electronic, telecommunications, and instrumentation applications requiring reliable electrical isolation and signal transmission. Explore more electronic components like Optocouplers and semiconductors in the Electronics & Electricals category at EnvMart.
