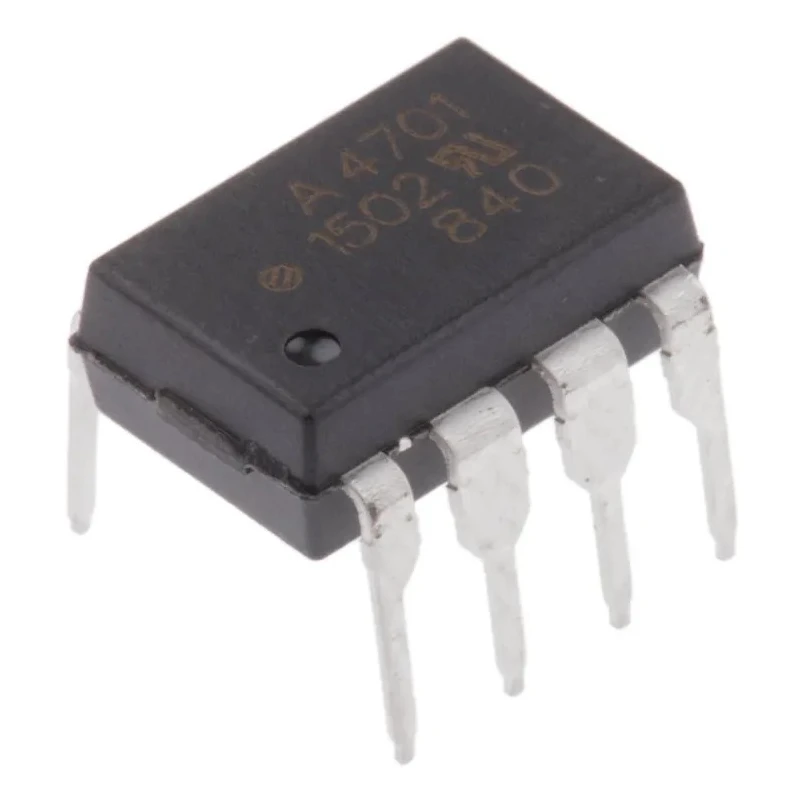

Broadcom AC/DC Input Optocoupler Through Hole 8-Pin DIP HCPL-4701-000E

Broadcom HCPL-4701-000E is an AC/DC input optocoupler designed with a through hole 8-pin DIP package suitable for industrial and electronic component applications. Featuring a Darlington transistor output, this component delivers high current transfer ratios with low input current requirements, making it ideal for precise electrical isolation and signal transmission.

The device incorporates LEDs optically coupled with integrated high gain photodetectors providing excellent input-output common mode transient immunity. It operates effectively across a temperature range from -40°C to 85°C, ensuring robust performance in diverse industrial, automation, and control systems.

Typical applications include ground isolation for logic families, low input current line receivers, RS-232C line receivers, telephone ring detectors, and line voltage status indicators with minimal input power dissipation. The open collector output supports interfacing with various logic levels and drivers.

Compliance with international safety and quality standards such as UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA further attests to the reliability of this optocoupler in demanding electrical environments. Packaging options include tube and tape & reel suitable for automated assembly lines.

Designed for AC and DC input current compatibility. Features an 8-pin DIP through hole mounting package for easy integration. Provides open collector output type with Darlington transistor configuration. Supports maximum forward voltage of 1.5V ensuring efficient LED operation.

Offers high current transfer ratio up to 8000% for superior signal amplification. Operates reliably within temperature range from -40°C to 85°C. Complies with UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA standards for safety and performance.

Packaging available in tube or tape & reel formats for bulk assembly.

This optocoupler is ideal for use in industrial automation, electronic instrumentation, telecommunications, and power supply systems requiring electrical isolation and signal integrity. Explore more Broadcom Optocouplers in our Electronics Components category for similar reliable components.
