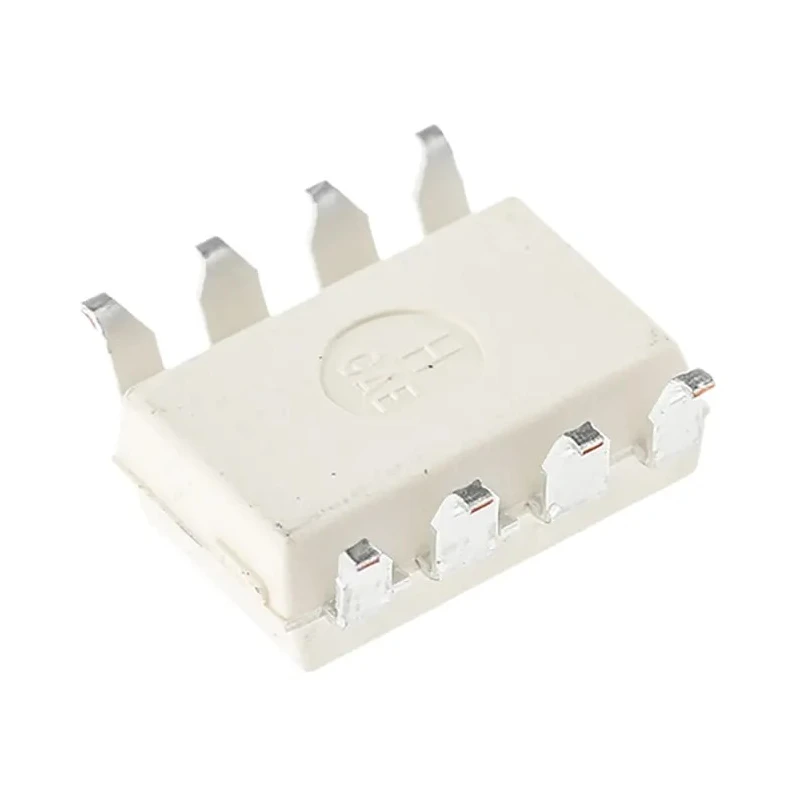

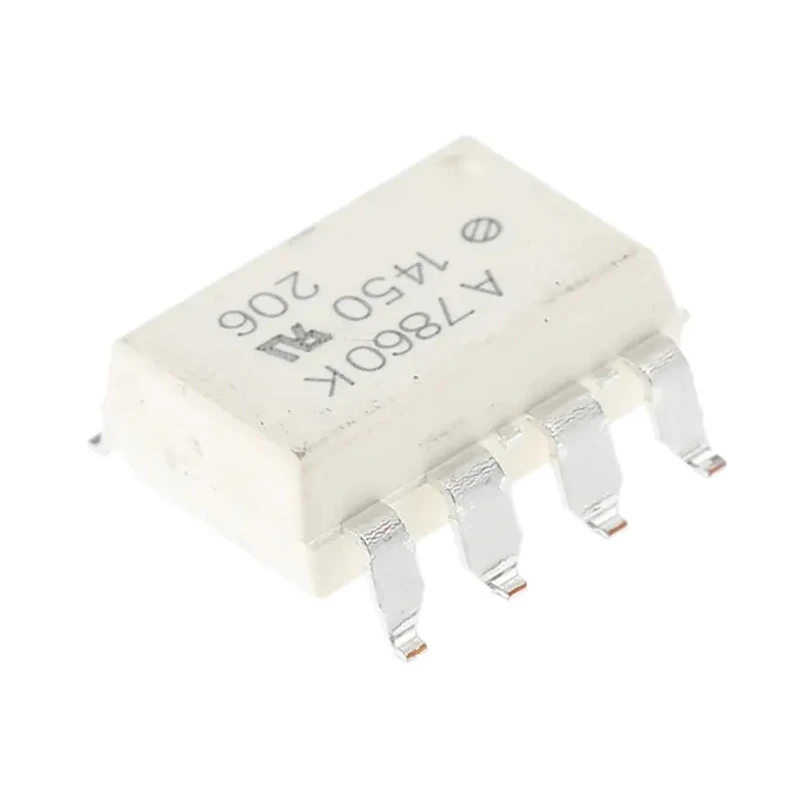

Broadcom DC Input Optocoupler Surface Mount 8-Pin DIP Transistor Output HCPL-7860-300E

Broadcom HCPL-7860-300E DC Input Optocoupler is a surface-mount electronic component housed in an 8-Pin DIP package. This device offers transistor-type output, enabling signal transfer with electrical isolation for high sensitivity and safety in industrial and power applications.

This optocoupler integrates advanced Sigma-Delta Modulator technology, designed for accurate phase current and bus voltage measurement, replacing traditional hall-effect sensors. It provides high common mode rejection and withstands isolation voltages up to 3.75kVrms, ensuring robust insulation in power converter circuits.

The maximum forward voltage is 0.2V, and it supports a maximum input current rating of 15mA under DC input. Operating temperature ranges from -40°C to 85°C, allowing use in demanding industrial environments.

The device is compliant with major international standards including IEC/EN/DIN EN 60747-5-5, CSA, and UL 1577, assuring reliability and certification for electronic designs. It is supplied in tube reel packaging for efficient insertion into automated manufacturing processes.

Applications include motor drive systems, power inverters, voltage signal isolation, and other industrial electronic converter circuits requiring precise and safe sensing elements.

Utilizes Sigma-Delta Modulator for current and voltage sensing. High isolation voltage withstand of 3.75kVrms protects circuitry. Wide operating temperature range from -40°C to 85°C supports diverse environments. Complies with IEC/EN/DIN EN 60747-5-5, CSA, and UL 1577 standards.

Delivered in tube reel packaging for manufacturing efficiency. Transistor output type for signal amplification and switching. Designed for industrial power, motor control, and isolation applications. Explore the full range of Broadcom optocouplers and related electronic components in the Optocoupler category at EnvMart for your industrial and electronic design needs.
