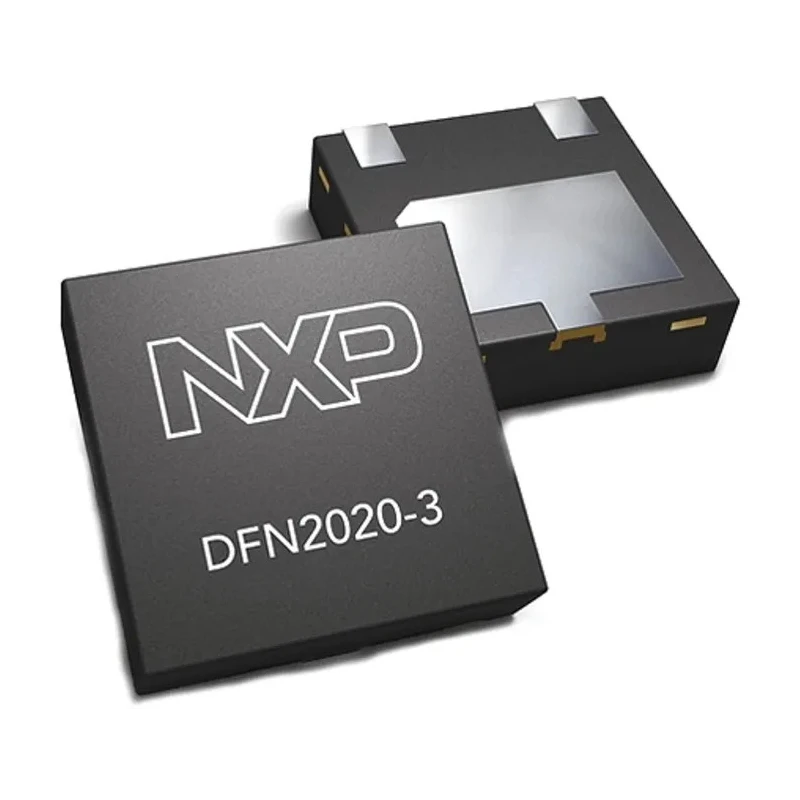

Nexperia Schottky Barrier Diode 60 V 2 A Surface Mount HUSON Package 3-Pin PMEG6020EPA,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.65mm |
| Length | 2.1mm |
| Model | PMEG6020EPA,115 |
| Width | 2.1mm |
| Mount Type | Surface |
| Series | PMEG6020EPA |
| Maximum Operating Temperature | 150°C |
| Package Type | HUSON |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 250μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 18A |
| Maximum Forward Voltage Vf | 575mV |
| Peak Reverse Recovery Time trr | 78ns |
Key Features
- The diode is configured as a single Schottky rectifier with low forward voltage drop.
- Mount type is surface with a compact HUSON 3-pin package.
- Features include low capacitance and negligible power switching losses.
- Maximum continuous forward current is 2 A, with peak non-repetitive forward surge current of 18 A.
- Maximum forward voltage drop is 575 mV, ensuring efficient operation.
- Peak reverse repetitive voltage rating of 60 V and low peak reverse current of 250 μA.
- Operational temperature range from -55°C to 150°C with automotive standard AEC-Q101 qualification.
Product Description
Nexperia PMEG6020EPA,115 Schottky Barrier Diode is a high efficiency semiconductor device designed for use in power and electronic applications requiring fast switching and low forward voltage drop. Its surface mount HUSON package with 3 pins suits automated PCB assembly, providing compactness and reliability.
This diode supports a maximum continuous forward current of 2 A and can withstand peak non-repetitive surge currents of up to 18 A. It features a low maximum forward voltage of 575 mV which reduces power loss and heat generation, enhancing efficiency in power rectification circuits.
The reversible peak voltage rating is 60 V with a low leakage current of 250 μA, supporting stable performance in switching power supplies, converters, and protection circuits. The device operates over a wide temperature range of -55°C to 150°C and complies with automotive quality standard AEC-Q101, indicating robustness and suitability for automotive electronics.
With a dimension of 2.1 mm by 2.1 mm footprint and 0.65 mm height, the diode is optimized for space-saving designs. It has a peak reverse recovery time of 78 ns, contributing to minimal switching losses in high-frequency applications.
The diode configuration is single, suitable for rectifying and freewheeling applications. It offers ultra-small, low-profile packaging with high junction temperature capability. Optimized for low forward voltage drop, low capacitance, and low leakage current to enhance circuit efficiency.
It is ideal for industrial, automotive, telecommunications, and power management uses. The product supports automated insertion with reel packaging for reliable manufacturing processes. Explore more Nexperia Schottky Diodes on EnvMart for your semiconductor component needs in electronics manufacturing and design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 2 A.
The peak reverse repetitive voltage rating is 60 V.
The maximum forward voltage drop is 575 mV.
It operates within a temperature range of -55°C to 150°C.
This diode comes in a surface mount HUSON package with 3 pins.
The peak non-repetitive forward surge current is 18 A.
The peak reverse current is 250 μA.
The peak reverse recovery time is 78 ns.
This model complies with the automotive standard AEC-Q101.
The dimensions are 2.1 mm in length and width, with a height of 0.65 mm.
It is configured as a single Schottky rectifier.
This diode is suitable for industrial, automotive, telecommunications, and power management applications.
