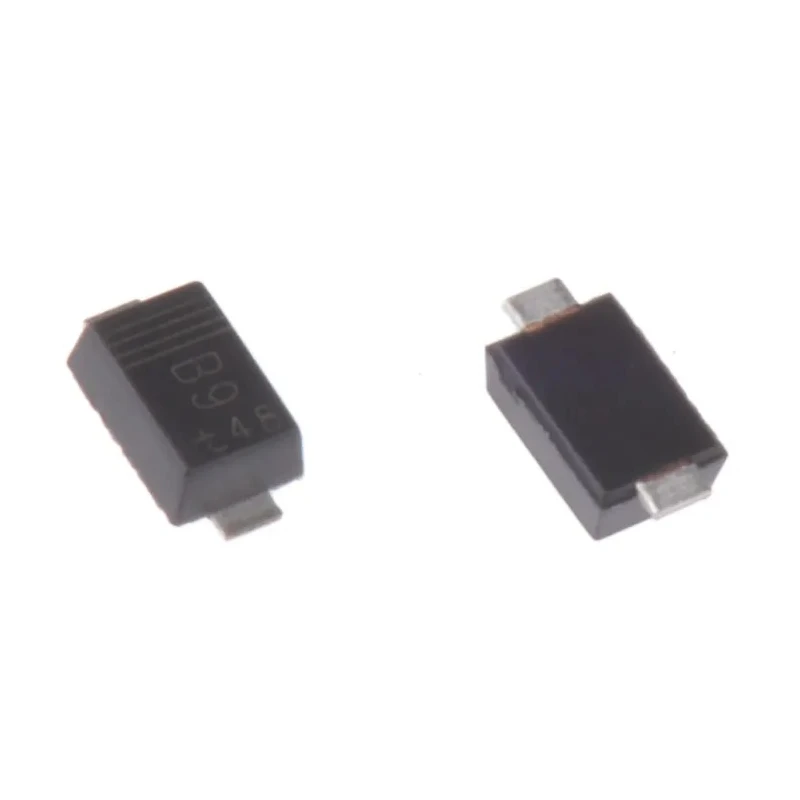

Nexperia Schottky Barrier Diode 30 V 2 A Surface Mount 2-Pin SOD-123 PMEG3020ER,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PMEG3020ER,115 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PMEG3020ER |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 420mV |
Key Features
- This diode features low forward voltage drop and high efficiency.
- The ultra-small, low-profile SOD-123 package enables space-saving PCB design.
- Rated for operation from -55°C up to 150°C, suitable for automotive and industrial applications.
- Low leakage current and negligible power switching losses improve performance.
- Compliance with automotive standard AEC-Q101 ensures reliability in critical environments.
- Peak non-repetitive forward surge current rating is 50 A for transient protection.
Product Description
Nexperia PMEG3020ER,115 is a high-performance Schottky Barrier Diode designed for surface mount applications with a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 30 V. This diode comes in an ultra-small SOD-123 package, measuring 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height, making it ideal for space-constrained electronic designs.
Featuring a low forward voltage drop of 420 mV, it offers high efficiency with low power dissipation, contributing to enhanced energy conservation in electronic circuits. Its operating temperature range from -55°C to 150°C and compliance with AEC-Q101 automotive standards make it well suited for automotive, industrial, and commercial electronic devices requiring high reliability and durability.
The PMEG3020ER,115 diode delivers negligible power switching losses and low leakage current, enhancing system efficiency. It supports a peak non-repetitive forward surge current of 50 A, ensuring protection against transient surges and spikes in demanding environments.
Applications include power rectification, voltage clamping, reverse polarity protection, and DC-DC conversion in automotive electronics, power supplies, telecommunications, consumer electronics, and industrial control systems.
This diode features low forward voltage drop and high efficiency. The ultra-small, low-profile SOD-123 package enables space-saving PCB design. Rated for operation from -55°C up to 150°C, suitable for automotive and industrial applications.
Low leakage current and negligible power switching losses improve performance. Compliance with automotive standard AEC-Q101 ensures reliability in critical environments. Peak non-repetitive forward surge current rating is 50 A for transient protection.
Pin count: 2 with single diode configuration optimized for rectification tasks. Dimensions LxWxH: 2.8 mm x 1.9 mm x 1.1 mm for compact mounting. Choose Nexperia Schottky Barrier Diodes from EnvMart for dependable and efficient semiconductor solutions tailored for advanced electronic applications and automotive use cases.
Explore more products in our Schottky Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 2 A.
The peak reverse repetitive voltage rating is 30 V.
It operates within a temperature range of -55°C to 150°C.
The diode comes in a SOD-123 package, measuring 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height.
The maximum forward voltage drop is 420 mV.
It features low leakage current, which enhances overall system efficiency.
The peak non-repetitive forward surge current rating is 50 A.
This model complies with the automotive standard AEC-Q101.
It is suitable for power rectification, voltage clamping, reverse polarity protection, and DC-DC conversion in various electronic devices.
The PMEG3020ER,115 has a single diode configuration optimized for rectification tasks.
The peak reverse current is rated at 1.5 mA.
This diode is designed for surface mounting applications.
