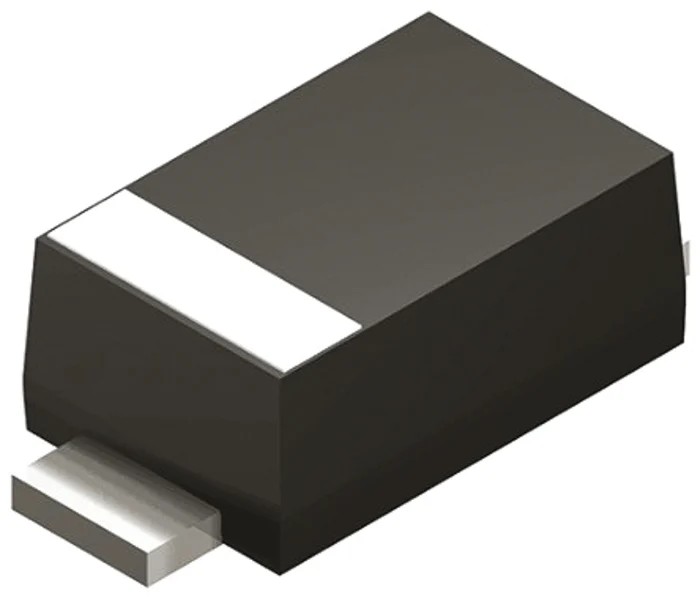

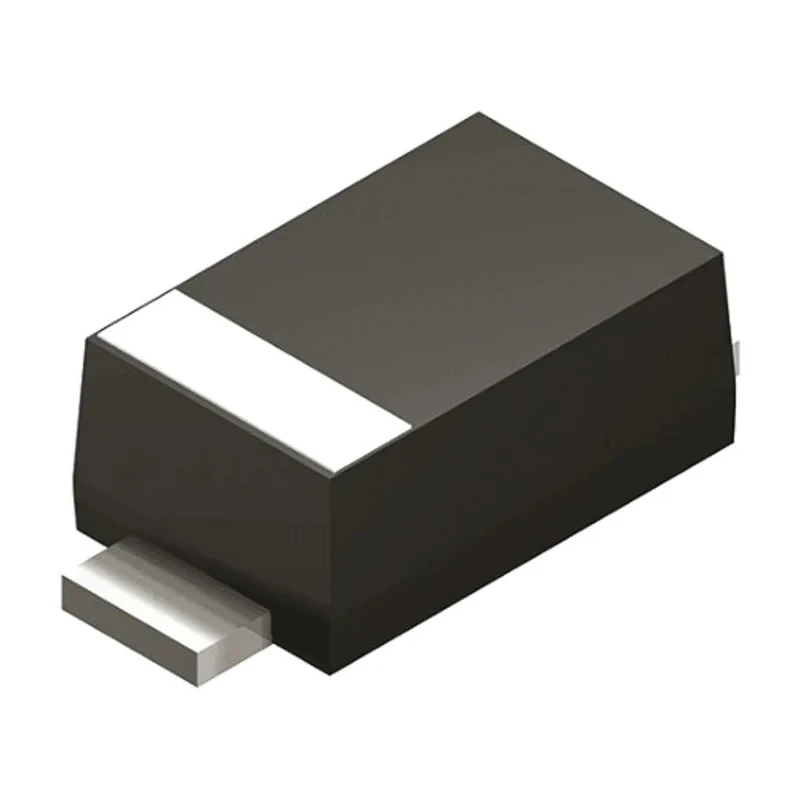

Nexperia Schottky Barrier Diode 30 V 1 A Surface Mount SOD-123 Package PMEG3010ER,115
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PMEG3010ER,115 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PMEG3010ER |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 360mV |
| onsemi 60V 2A, Schottky Diode, 2-Pin SOD-123FL NTS260SFGBrand | onsemi |
Key Features
- High efficiency with low forward voltage drop of 360 mV.
- Maximum continuous forward current rating of 1 ampere.
- Peak repetitive reverse voltage of 30 volts for reliable performance.
- Automotive standard AEC-Q101 compliant for enhanced reliability.
- Wide operating temperature range from -55°C to 150°C.
- Low leakage current fuelled by optimized semiconductor design.
- Capable of withstanding peak non-repetitive forward surge current up to 50 A.
- Dual pin, single diode configuration optimized for switching and rectifying operations.
Product Description
Nexperia PMEG3010ER,115 is a highly reliable Schottky Barrier Diode designed for efficient switching and rectification in electronic circuits. Featuring a 30 V peak repetitive reverse voltage and a maximum continuous forward current of 1 ampere, it is suitable for applications requiring low forward voltage drop and fast switching performance.
This diode comes in a compact 2-pin SOD-123 surface mount package with precise dimensions of 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height, supporting modern miniaturized electronic devices.
The device supports an extended operating temperature range from -55°C to 150°C and meets the automotive AEC-Q101 standard ensuring robustness and reliability in automotive and industrial environments.
Key electrical characteristics include a maximum forward voltage drop of 360 mV and a peak non-repetitive forward surge current of 50 A. The diode exhibits low leakage current and negligible power switching losses, making it highly efficient for power management and protection circuits.
The Nexperia PMEG3010ER,115 is manufactured in Malaysia with stringent quality controls and is ideal for industrial, automotive, and consumer electronics applications that require compact and efficient Schottky diodes.
High efficiency with low forward voltage drop of 360 mV. Maximum continuous forward current rating of 1 ampere. Peak repetitive reverse voltage of 30 volts for reliable performance. Ultra-small dimensions: length 2.8 mm, width 1.9 mm, height 1.1 mm.
Automotive standard AEC-Q101 compliant for enhanced reliability. Wide operating temperature range from -55°C to 150°C. Low leakage current fuelled by optimized semiconductor design. Capable of withstanding peak non-repetitive forward surge current up to 50 A.
Dual pin, single diode configuration optimized for switching and rectifying operations. Manufactured in Malaysia with quality and performance consistency. Explore more semiconductor components and Schottky Diodes at EnvMart for your industrial, automotive, and commercial electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 1 ampere.
This Schottky diode has a peak reverse repetitive voltage of 30 volts.
The dimensions of the SOD-123 package are 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height.
It operates within a wide temperature range from -55°C to 150°C.
The maximum forward voltage drop is 360 mV.
This diode can withstand a peak non-repetitive forward surge current of up to 50 A.
Yes, it is compliant with the automotive standard AEC-Q101, ensuring enhanced reliability.
It features a dual pin, single diode configuration optimized for switching and rectifying operations.
The peak reverse current is specified at 1.5 mA.
This diode is manufactured in Malaysia.
It supports surface mounting, suitable for modern electronic devices.
This model belongs to the PMEG3010ER series.
