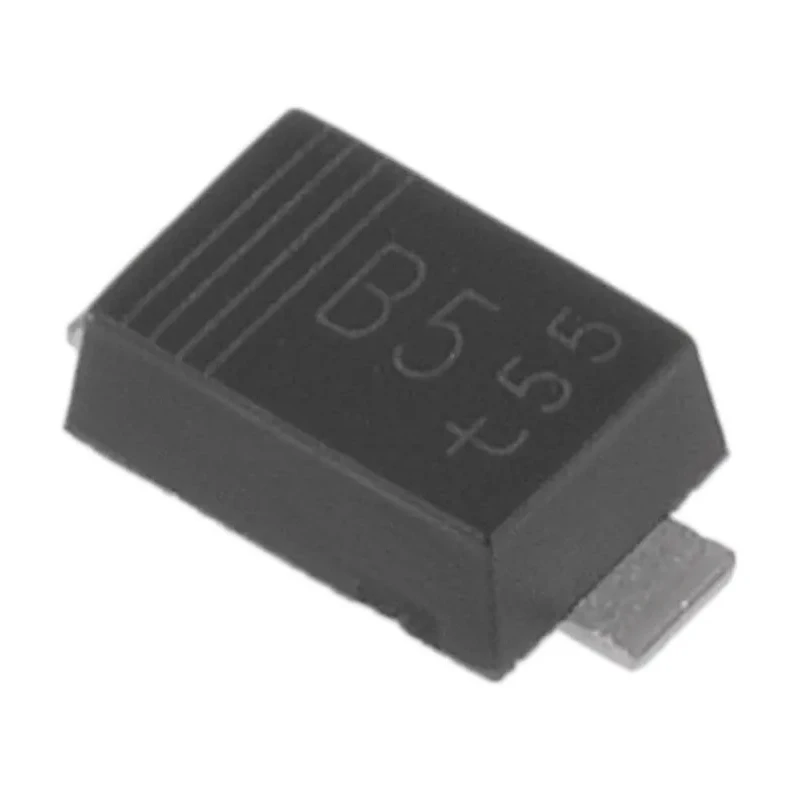

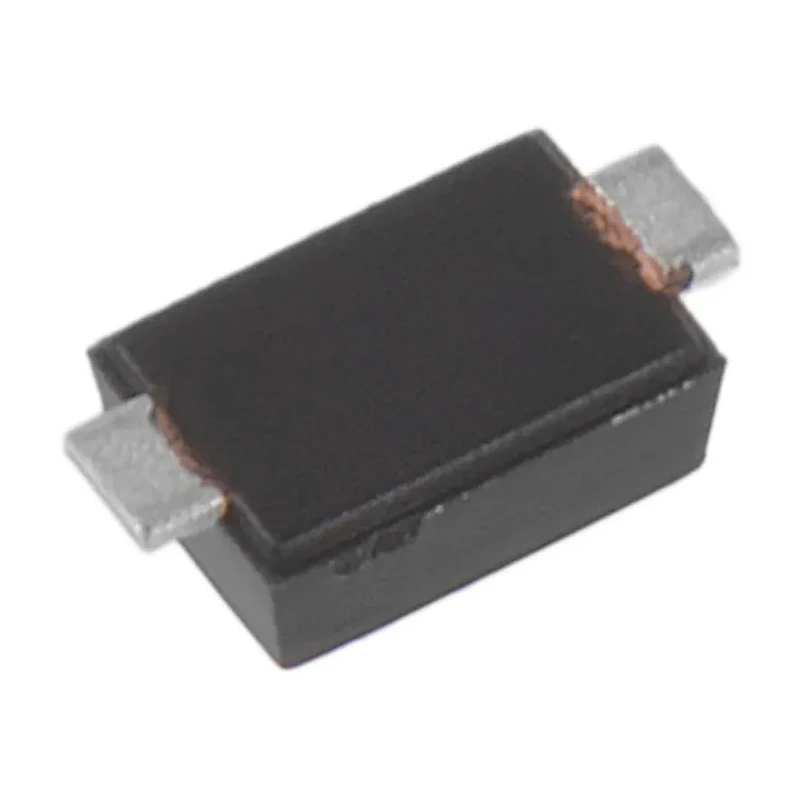

Nexperia 20 V 1 A Surface Mount Schottky Diode 2-Pin SOD-123 PMEG2010ER,115
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PMEG2010ER,115 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PMEG2010ER |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 340mV |
Key Features
- Compact 2-pin SOD-123 surface mount package optimized for space savings.
- Maximum continuous forward current of 1 ampere for efficient current handling.
- Peak reverse repetitive voltage rated at 20 volts ensures robust reverse blocking.
- Low forward voltage drop of 340 millivolts reduces power loss.
- High maximum operating temperature of 150°C suitable for harsh environments.
- Automotive-grade AEC-Q101 compliant for reliability in automotive applications.
- Low leakage current minimizing power dissipation in circuits.
- Negligible switching losses enhance diode efficiency in fast switching applications.
Product Description
The Nexperia PMEG2010ER,115 is a high-efficiency Schottky diode designed for surface mounting in a compact SOD-123 package. It supports a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 20 volts. This diode exhibits a low forward voltage drop of 340 millivolts, minimizing power loss and enhancing circuit efficiency.
Featuring a 2-pin configuration, the PMEG2010ER,115 is ideally suited for applications requiring low-profile components such as power supplies and converters. Its robust design supports high junction temperatures up to 150°C, making it reliable for demanding operating conditions. The diode also complies with the automotive standard AEC-Q101, underlining its suitability for use in automotive electronic circuits.
Low capacitance and negligible switching losses further optimize performance in high-frequency switching applications. The diode offers a wide temperature operating range from -55°C to 150°C, accommodating diverse industrial, automotive, and consumer electronics usage scenarios.
Compact two-pin SOD-123 surface mount package ensures minimal board space usage. Maximum continuous forward current of 1A supports moderate power applications. Peak reverse repetitive voltage at 20V ensures durability against voltage spikes.
Low forward voltage drop at 340mV reduces energy dissipation. High maximum operating temperature of 150°C provides reliable thermal performance. Compliance with automotive AEC-Q101 standard enhances reliability for vehicular electronics.
Low leakage current minimizes standby losses in circuits. Negligible power switching losses maximize efficiency in switching applications. Wide operating temperature range from -55°C to 150°C suits harsh environments.
This Schottky diode from Nexperia is suitable for industrial applications including power management, switching power supplies, battery charging, and automotive electronics. Its compact form factor and performance characteristics make it ideal for integration in compact and high-efficiency circuits requiring robust diode components.
Explore more semiconductor devices and reliable Schottky Diode solutions at EnvMart for your industrial and commercial electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Nexperia PMEG2010ER,115 is 1 ampere.
This diode has a peak reverse repetitive voltage rating of 20 volts.
The forward voltage drop of the PMEG2010ER,115 is 340 millivolts.
The operating temperature range for this model is from -55°C to 150°C.
It is packaged in a compact SOD-123 surface mount type.
The PMEG2010ER,115 complies with the automotive standard AEC-Q101.
The diode has a height of 1.1 mm and a width of 1.9 mm.
The maximum operating temperature for the Nexperia PMEG2010ER,115 is 150°C.
This model is a Schottky rectifier type diode.
The peak non-repetitive forward surge current for this diode is rated at 50A.
The PMEG2010ER,115 has a pin count of 2.
This diode is suitable for applications in power management, switching power supplies, battery charging, and automotive electronics.
