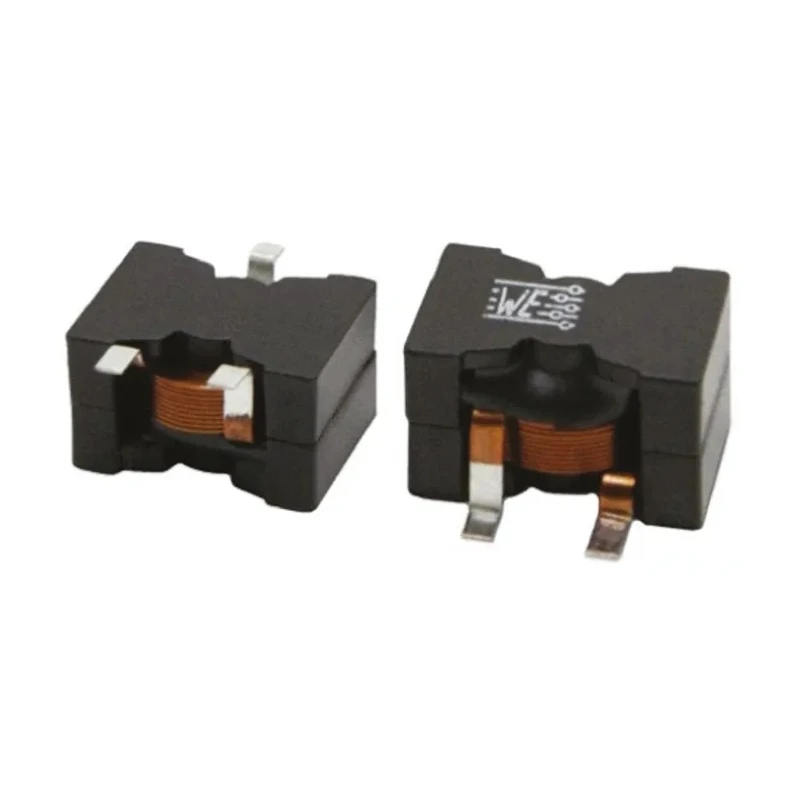

Wurth Elektronik 15 μH 30A Shielded Surface Mount Inductor with Manganese Zinc Ferrite Core 7443641500

Wurth Elektronik model 7443641500 is a shielded surface mount inductor featuring a manganese zinc ferrite core with 15 μH inductance and a flat wire winding construction. Designed for high current applications, this inductor supports a maximum DC current of 30A and offers low loss characteristics typical of MnZn cores, making it ideal for high efficiency DC/DC converters, single and polyphase buck converters, and audio filters.

The inductor is housed in a compact 2818 package with surface mount termination style, facilitating modern PCB assembly processes with support for reflow soldering. It operates effectively in a wide temperature range from -40°C to 125°C and meets the rigorous automotive standard AEC-Q200, ensuring reliability in demanding environments.

With a maximum DC resistance of only 2.4 mΩ and an inductance tolerance of ±15%, the 7443641500 model provides efficient energy storage and filtering capability while minimizing power loss. Its maximum self-resonant frequency of 11 MHz makes it suitable for power conversion and noise suppression in electronic circuits.

Manufactured in China, this inductor complies with RoHS and IEC 62024-2-2020 standards, addressing environmental and quality requirements. Its shielded design reduces electromagnetic interference, improving system stability and performance in electronic designs.

Constructed with a magnetically shielded manganese zinc ferrite core for low loss performance. Rated for a maximum DC current of 30A ensuring robust operation. Compact 2818 package suitable for surface mount technology with surface mount termination style.

Flat wire winding construction optimizes inductance stability and efficiency. Designed to operate within temperatures from -40°C to 125°C, compliant with automotive AEC-Q200 standards. Features a low maximum DC resistance of 2.4 mΩ to minimize power loss.

Inductance tolerance of ±15% ensuring reliable circuit performance. Maximum self-resonant frequency of 11 MHz suitable for power conversion applications. Manufactured in China with RoHS and IEC 62024-2-2020 standard approvals.

This Wurth Elektronik shielded Surface Mount Inductor is ideal for industrial electronics, automotive systems, power management, and audio filtering applications requiring high current capacity and stability. Its compact form factor and reliable construction support efficient electronic circuit designs.
