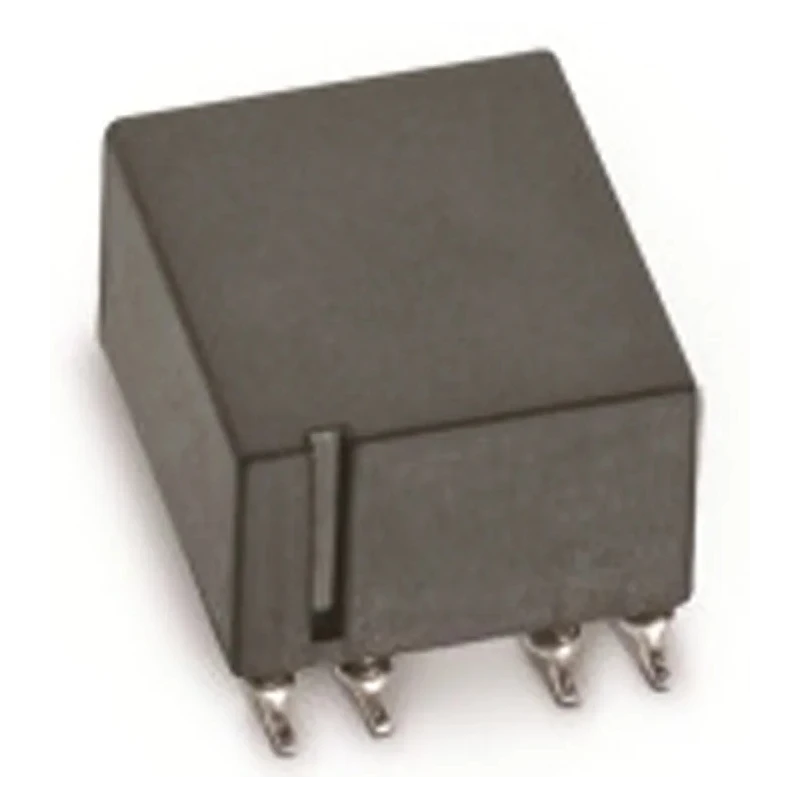

Wurth Elektronik WE-UCF 1712 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.24 μH 3.25A 29mΩ 125°C 744290321

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-UCF 1712 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.24 μH 3.25A 29mΩ 125°C 744290321

Name: Wurth Elektronik WE-UCF 1712 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.24 μH 3.25A 29mΩ 125°C 744290321
Brand: Wurth Elektronik
SKU: 376615
Price: 4.95 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	7.8mm
Length	14mm
Depth	12.5mm
Packaging	Tape & Reel
Series	WE-UCF
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	0.24μH
Standards/Approvals	REACH, RoHS
Package/Case	1712
Maximum DC Current	3.25A
Pin Count	8
Maximum DC Resistance	29mΩ
Inductance Tolerance	±30 %
Termination Style	Surface Mount
Inductor Construction	Sectional Winding

Key Features

Provides a maximum DC current capacity of 3.25 amperes.
Constructed with a ferrite core material for enhanced magnetic performance.
Features sectional winding construction for effective filtering.
Operates reliably between -40°C to 125°C temperature range.
Low DC resistance of 29 milliohms ensures minimal power loss.
Comes in a tape and reel packaging for automated assembly processes.
Includes 8 pins and a height of 7.8 mm for surface mount design flexibility.
Meets REACH and RoHS standards, ensuring compliance with environmental regulations.

Product Description

Wurth Elektronik 744290321 Shielded Wirewound Surface Mount Inductor is a high performance 1712 package component designed for electronic circuit filtering applications. With an inductance of 0.24 μH and maximum DC current rating of 3.25 A, it is ideal for power line filtering, buck/boost converter circuits, and data line noise suppression.

This inductor features a ferrite core combined with sectional winding construction to optimize electromagnetic compatibility and reduce electromagnetic interference. The compact surface mount design includes an 8-pin layout and a height of 7.8 mm, depth 12.5 mm, allowing for flexible PCB integration.

Operating from -40°C up to 125°C, this inductor maintains stable performance in varying industrial and commercial environments. Its low DC resistance of 29 mΩ minimizes power losses and increases efficiency in power electronics.

Packaging in tape and reel format supports automated pick-and-place assembly for high volume manufacturing. Compliance with REACH and RoHS standards ensures environmental safety and regulatory adherence.

The Wurth Elektronik WE-UCF series is a trusted choice in industrial, automotive, consumer electronic, telecommunications, and other applications requiring reliable EMI suppression and signal integrity.

Provides a maximum DC current capacity of 3.25 amperes. Constructed with a ferrite core material for enhanced magnetic performance. Features sectional winding construction for effective filtering. Operates reliably between -40°C to 125°C temperature range.

Low DC resistance of 29 milliohms ensures minimal power loss. Comes in a tape and reel packaging for automated assembly processes. Includes 8 pins and a height of 7.8 mm for surface mount design flexibility. Meets REACH and RoHS standards, ensuring compliance with environmental regulations.

Designed with shielding to reduce electromagnetic interference. Manufactured in China with high-quality standards. Explore more Surface Mount Inductors and components at EnvMart for your electronic design and manufacturing needs.
