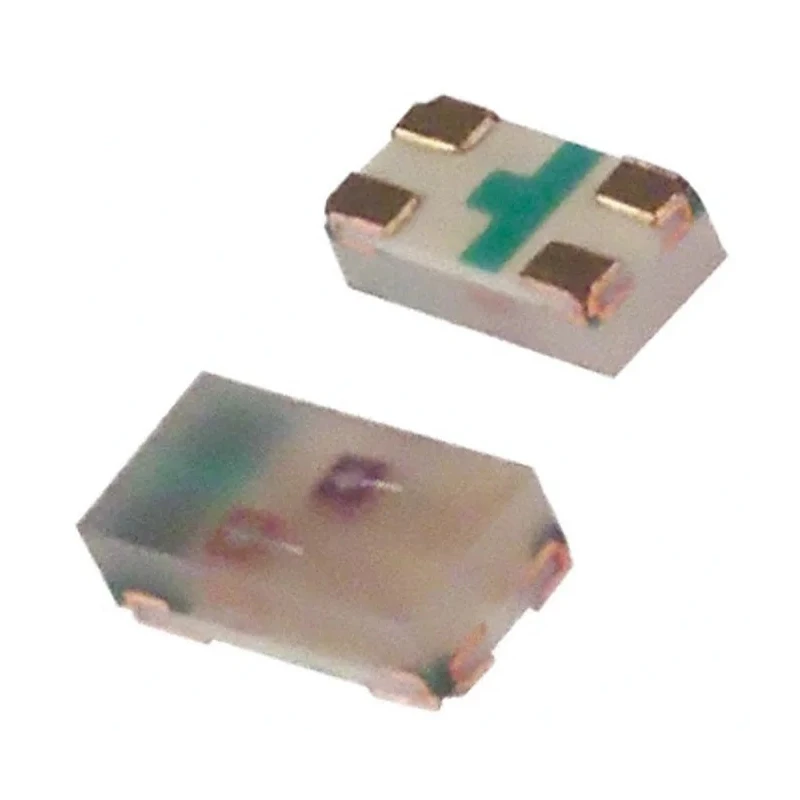

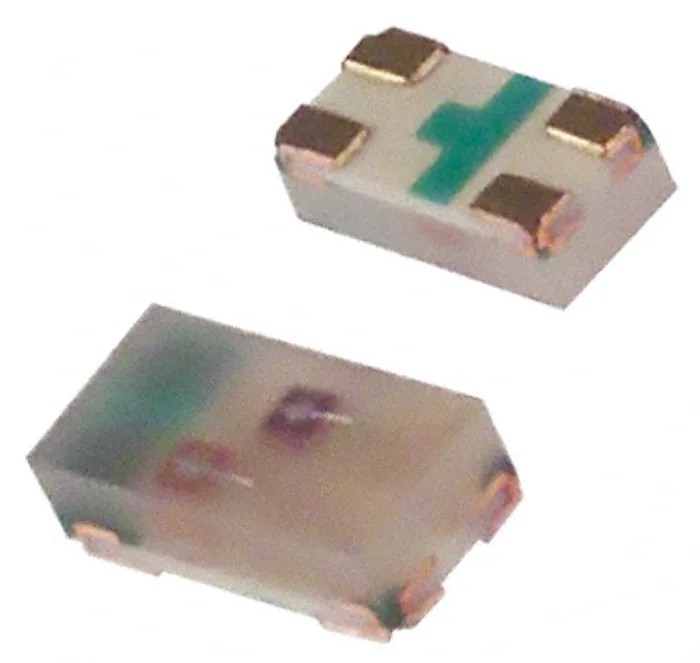

Broadcom Green, Red LED 1608 Surface Mount Bi-Colour ChipLED 20mA 52mW 120° Viewing Angle HSMF-C163
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMF-C163 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HSMF-C16x |
| Number Of Leds | 2 |
| Maximum forward current | 20mA |
| Viewing angle | 120 ° |
| Package Type | 1608 |
| LED Colour | Green, Red |
| Dominant Wavelength | 525nm |
| Number of Pins | 4 |
| LED Luminosity | 45 mcd |
| Maximum Power Dissipation | 52mW |
| Lens Dimensions | 1.6 x 0.8 x 0.5 mm |
| Lens Shape | Rectangular |
| - Operating temperature | -40°C to +85°C |
| - Small package | 1.6 x 0.8 x 0.5 mm (0603 package) |
Key Features
- Designed for high density board mounting with 1.6 x 0.8 x 0.5 mm dimensions.
- Operates reliably between -40°C and +85°C.
- Maximum forward current rating of 20mA and power dissipation of 52mW.
- Features a wide 120° viewing angle for excellent visibility.
- Compact rectangular lens with clear finish provides luminous intensity of 45 mcd.
- Suitable for keypad backlighting, front panel indicators and symbol displays.
- Bi-colour chip LED with 2 LEDs and 4 pins for versatile applications.
- Compatible with reflow soldering and tape & reel packaging for manufacturing efficiency.
Product Description
Broadcom HSMF-C163 is a miniature bi-colour surface mount ChipLED designed for compact electronic applications requiring clear green and red indication in a small footprint of 1.6 x 0.8 x 0.5 mm. This chip LED operates with a maximum forward current of 20mA and dissipates a power of 52mW, ensuring efficient performance within an operating temperature range of -40°C to +85°C.
The device features a rectangular clear lens with a wide 120-degree viewing angle and a luminous intensity of 45 millicandela, making it suitable for use in keypad backlighting, pushbutton backlighting, LCD backlighting, symbol indicators, and front panel indicators in industrial, electronic, and instrumentation equipment.
With a robust design that supports surface mounting, the HSMF-C163 is packaged in tape & reel format to enhance production efficiency during automated assembly and is compatible with standard reflow soldering processes.
This two-LED, four-pin bi-colour surface mount device offers versatility for applications requiring color-changing indications and visual alerts on compact panels and PCB designs. Designed for high density surface mounting on PCBs.
Bi-colour LEDs provide multiple indication states. Compact 1608 package optimizes space in electronic assemblies. Reliable operation over a wide temperature range. Efficient power dissipation suitable for continuous use.
Wide viewing angle enhances display readability. Clear rectangular lens ensures consistent light output. Ideal for industrial, laboratory, and consumer electronic devices. Explore our comprehensive selection of LEDs for all your electronic indication and lighting needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating for this model is 20mA.
It operates reliably within a temperature range of -40°C to +85°C.
The luminous intensity of this LED is 45 millicandela (mcd).
This model has dimensions of 1.6 x 0.8 x 0.5 mm.
It supports surface mounting, making it suitable for high-density board applications.
The viewing angle of this bi-colour LED is 120 degrees, providing excellent visibility.
It is packaged in tape & reel format for efficient automated assembly.
This model includes 2 LEDs, allowing for bi-colour functionality.
The maximum power dissipation for this LED is 52mW.
It is suitable for keypad backlighting, pushbutton backlighting, and symbol indicators.
The lens shape of this model is rectangular, which ensures consistent light output.
The dominant wavelength for the green LED is 525nm.
