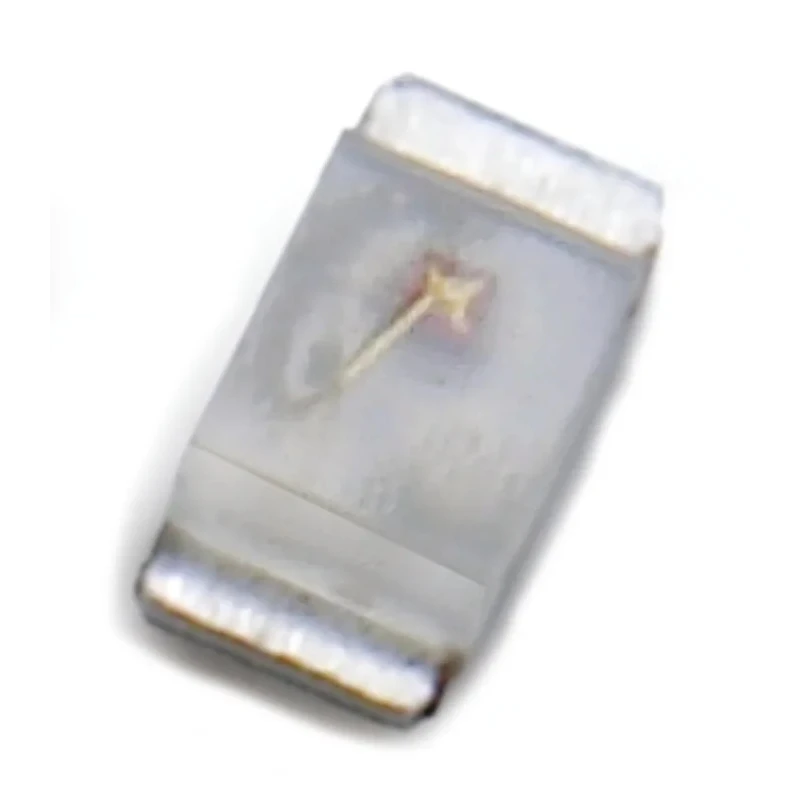

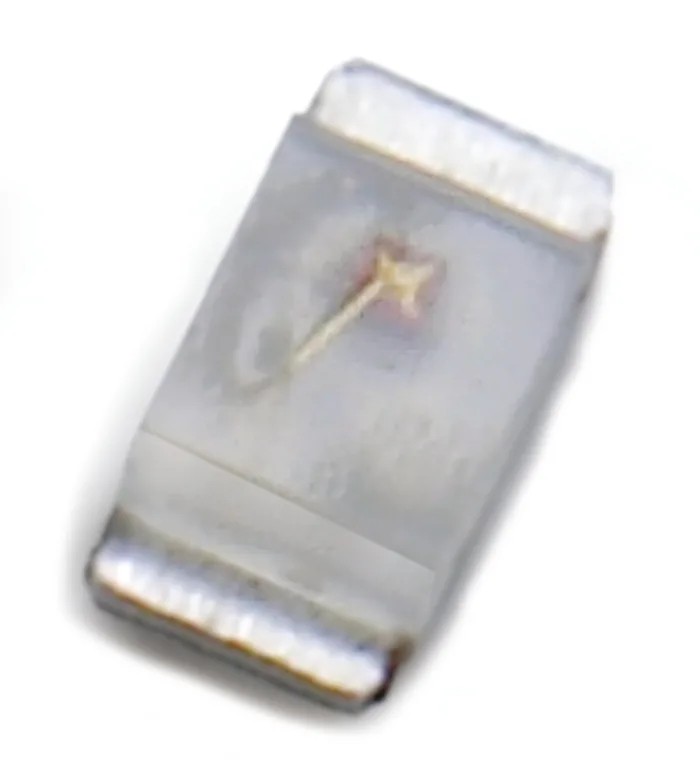

Broadcom 2.4 V Green, Yellow LED 0603 Surface Mount Indicator ASMT-RF45-AN002

Broadcom ASMT-RF45-AN002 is a compact 2.4 V green and yellow LED designed for surface mount applications in densely populated electronic assemblies. This LED operates efficiently with a forward current rating of 20 mA and outputs vibrant green or yellow light at a dominant wavelength of 573 nm.

The device’s 0603 package size allows for tight board spacing, while the rectangular diffused lens measuring 1.6 x 0.8 x 0.45 mm provides a soft, untinted light perfect for indicator and status applications. The 145° wide viewing angle ensures the LED is visibly clear from various angles, enhancing device usability.

With a low forward voltage of 2.4 V and a maximum power dissipation of 48 mW, the ASMT-RF45-AN002 minimizes thermal stress, supporting extended continuous use without reliability concerns. The LED features two electrical pins suited for surface mount solder attach, facilitating easy integration on automated pick-and-place production lines through its tape and reel packaging format.

This LED is suitable for front-panel status indicators on compact electronics and handheld devices that require visible signalling. It is a reliable choice for applications demanding efficient, clear visual indication with minimal power consumption.

Emits green or yellow light at a dominant wavelength of 573 nm. Maximum forward current of 20 mA supports standard indicator drive levels. Compact 0603 surface mount package suitable for high-density PCB placements. Wide 145° viewing angle ensures broad visibility from many off-axis positions.

Forward voltage of 2.4 V enables efficient low-voltage operation. Maximum power dissipation of 48 mW minimizes heat during continuous use. Rectangular diffused lens with dimensions 1.6 x 0.8 x 0.45 mm for soft, even light emission.

Supplied in tape and reel packaging for automated placement in manufacturing. Ideal for front-panel status indicators and handheld devices requiring visible signaling. Compliance with RoHS standards ensures environmental safety.

Designed for industrial, electronic manufacturing, and laboratory applications, this LED integrates seamlessly into compact devices needing efficient and reliable visual indicators. The package format also supports automated assembly processes, improving production efficiency.
