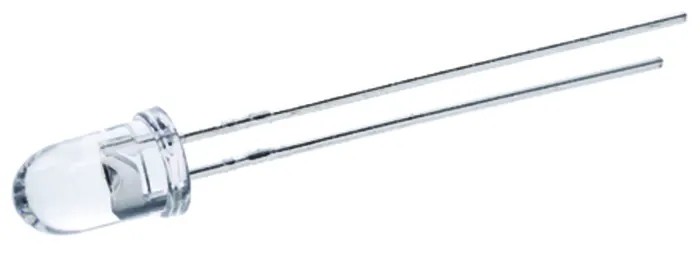

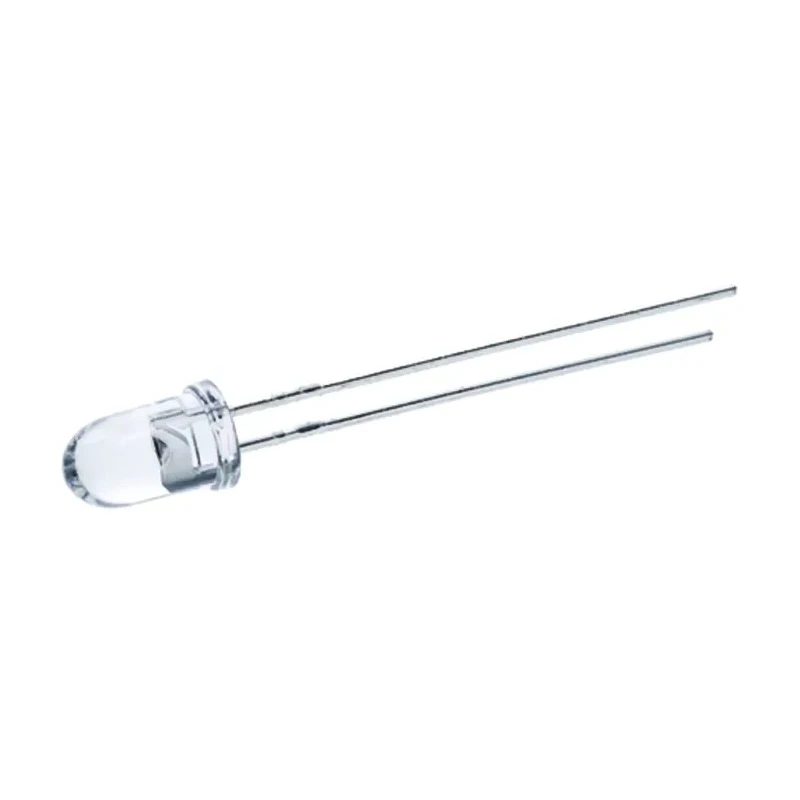

Broadcom Amber 5 mm (T-1 3/4) Through Hole LED 2.1 V Forward Voltage 50 mA Current HLMP-EL1A-Z1KDD

Broadcom HLMP-EL1A-Z1KDD is an amber LED with a 5 mm (T-1 3/4) package designed for through-hole mounting. It features a forward voltage of 2.1 V and supports a maximum forward current of 50 mA, providing reliable and bright illumination for various electronic applications.

This LED incorporates second-generation optics that produce a precise spatial radiation pattern with a 15-degree viewing angle, suitable for focused light delivery in signage, signals, and indicator panels.

The lens is made of durable optical grade epoxy with UV inhibitors, ensuring longevity and consistent light output even when exposed to outdoor elements such as sunlight and moisture. This makes it ideal for industrial, commercial, and outdoor use cases including traffic management, solar power signs, and advertising displays.

The HLMP series from Broadcom ensures high luminous efficiency with 16.5 cd luminous intensity and 2.1 lm luminous flux, delivering clear and consistent amber light output. It complies with RoHS standards, confirming its safety and environmental compliance.

Amber LED with 5 mm (T-1 3/4) package size for versatile usage. Through hole mount type providing sturdy installation options. Maximum power dissipation rated at 120 mW ensuring efficient operation. Viewing angle of 15 degrees for focused light output.

LED luminous flux of 2.1 lumens delivering bright illumination. High luminous intensity of 16.5 candela for clear visibility. Untinted round lens made from optical grade epoxy for durability. RoHS compliant ensuring environmental safety and quality standards.

Dominant wavelength of 590 nm, perfect for amber light applications.

This LED is suitable for use in industrial, laboratory, commercial, and manufacturing environments requiring reliable, high-intensity amber light sources. Explore the broad range of LED components at EnvMart for complementary electronic components and accessories.
