| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | BZX55B30-TR |
| Mount Type | Through Hole |
| Series | BZX55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 30V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 80Ω |

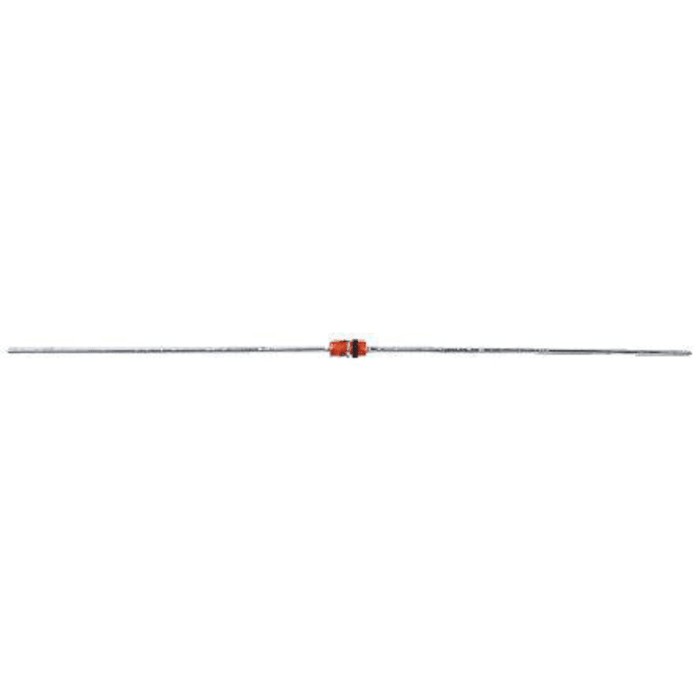

Vishay BZX55B30-TR is a high-reliability Zener Diode designed for voltage regulation in electronic circuits. This discrete semiconductor device offers a nominal Zener voltage of 30 V with a tolerance of ±2%, making it an ideal choice for precise voltage stabilization applications.
Encased in a compact SOD-27 through-hole package, the diode supports a maximum power dissipation of 500 mW, suitable for low to moderate power scenarios in power supplies, instrumentation, and automotive electronic systems. The 2-pin configuration simplifies PCB layout and mounting in through-hole assemblies.
Operational temperature range of -65°C to 175°C ensures performance in harsh environments, including automotive applications where it meets the AEC-Q101 standard for automotive grade components.
The device features a maximum Zener impedance of 80 ohms and a test current of 5 mA, maintaining stable voltage regulation with minimal leakage currents capped at 2 microamperes. Its compact dimensions (length 3.9 mm and height 1.7 mm) enable use in space-constrained designs.
It is widely used across industrial electronics, laboratory equipment, power supplies, and automotive systems requiring robust and precise voltage regulation. The diode features a 2% voltage tolerance providing precise voltage regulation.
It is constructed with a 2-pin configuration optimized for through-hole mounting. The device supports a test current of 5 mA and has a maximum zener impedance of 80 ohms. Designed for operation between -65°C and 175°C, suitable for automotive applications compliant with AEC-Q101 standard.
Maximum reverse leakage current is low at 2 microamperes, ensuring minimal leakage losses. The compact SOD-27 package measures 3.9 mm in length and 1.7 mm in height. This diode is RoHS compliant and manufactured in China.
