| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN1N3C10D |
| Depth | 0.6mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 0.013μH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 1.2A |
| Pin Count | 2 |
| Maximum DC Resistance | 17mΩ |
| Inductance Tolerance | ±0.2 nH |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 16GHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |

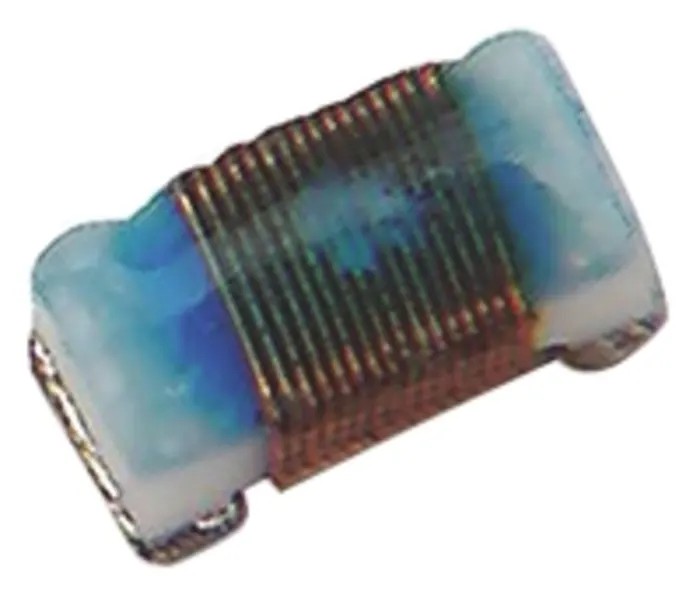

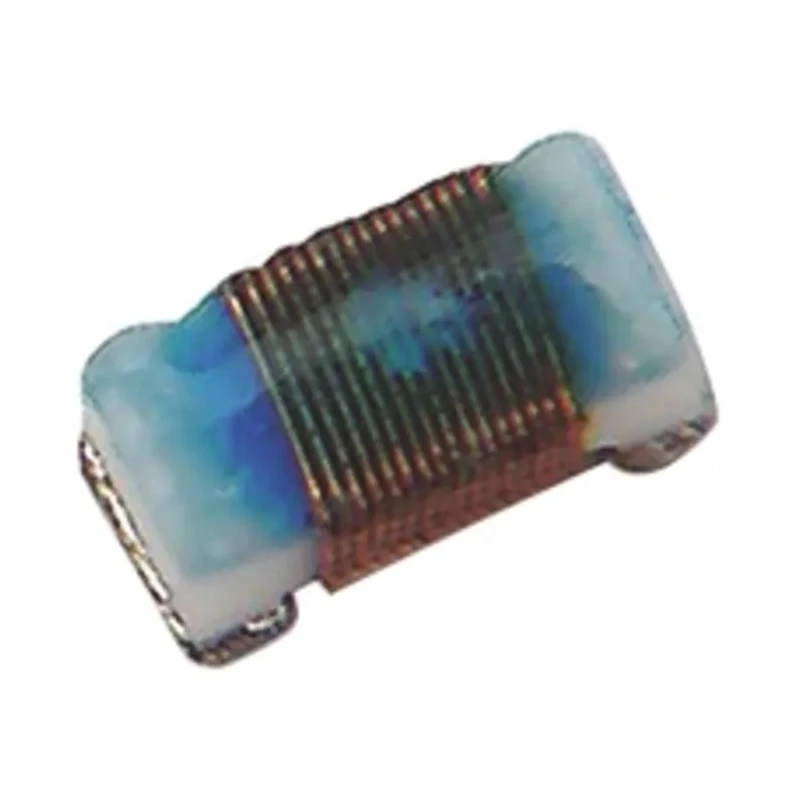

Murata LQW15AN1N3C10D is a 0402 series unshielded wirewound surface mount inductor featuring a ferrite core. With an inductance of 0.013 μH and a tight tolerance of ±0.2 nH, this inductor is designed for high frequency VHF and UHF applications requiring precision and stability. It supports a maximum DC current of 1.2 A and offers a minimum quality factor of 20, indicative of low energy loss.
The device’s compact 0402 package measures 1 mm in length, 0.5 mm in height, and 0.6 mm in depth, allowing for high-density PCB designs. Its ferrite core enhances magnetic properties while maintaining low DC resistance of 17 mΩ, contributing to higher efficiency in power circuits.
Operating temperature range from -55°C up to 125°C ensures robust performance in diverse industrial environments. The inductor features solder termination style, providing reliable and secure mounting on PCBs. Its moulded construction further reinforces mechanical stability.
With a maximum self-resonant frequency of 16 GHz, the product is suited for wireless communication applications including Bluetooth, GSM, and WLAN technologies, where high resonance frequency and component reliability are crucial.
Designed for VHF and UHF high frequency applications. Low DC resistance ensures minimal energy loss. Compact 0402 package supports dense PCB layouts. Ferrite core material optimizes inductance and performance. Wide operating temperature range for industrial use.
RoHS compliant for environmental safety. Moulded body enhances mechanical stability. Solder termination style for dependable PCB assembly. High self-resonant frequency suitable for wireless circuits. Ideal for Bluetooth, GSM, and WLAN telecommunication uses.
This Murata surface mount inductor is an essential component for modern electronic communication devices and industrial applications. Explore additional Murata inductors and other surface mount components on EnvMart for comprehensive industrial and electronic assembly needs.
