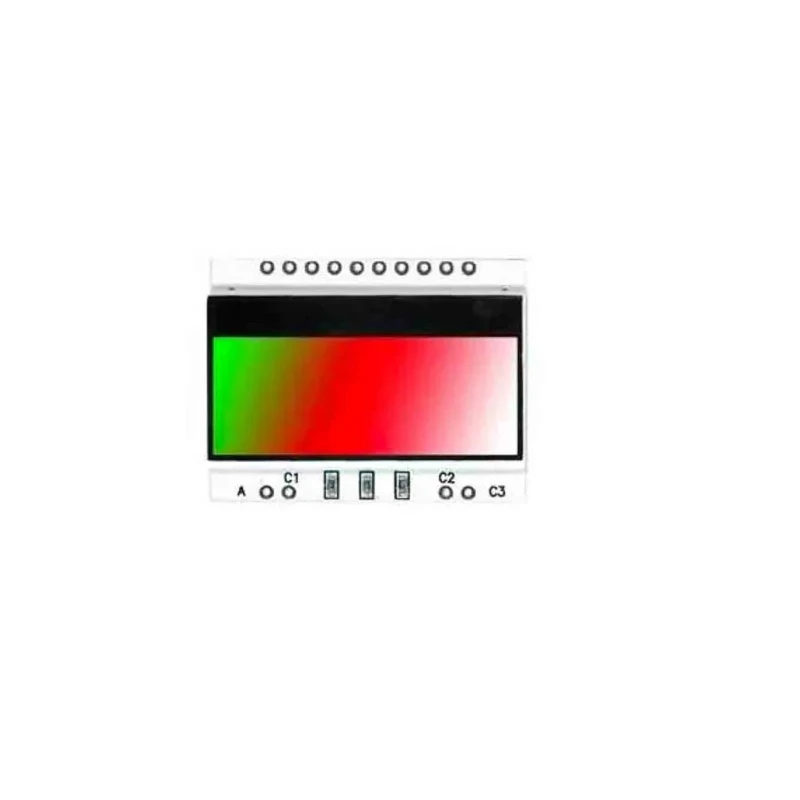

Display Visions LED Display Backlight White Green Red 20 Pins EA LED36x28-ERW

Display Visions EA LED36x28-ERW LED Display Backlight is a high-quality Display Backlighting solution designed for embedded electronics requiring multi-color LED illumination including white, green, and red. This display backlight module is equipped with 20 pins and is part of the EA DOGS104x-A series, supporting standard interfaces such as 4-bit, 8-bit SPI, and I²C, making it compatible with various embedded controllers.

The module features an ultra-flat form factor with a thickness of 2.0 mm without backlight and 5.8 mm including LED backlighting. The high contrast supertwist LCD design enhances visibility and display performance under diverse lighting conditions.

Equipped with the SSD1803A controller and integrated graphic RAM, this display backlight assures reliable operation and crisp display output. Its variable brightness feature allows adjustable illumination levels, providing excellent flexibility for different ambient lighting scenarios.

Installation is simplified because it can be directly soldered onto a PCB, eliminating the need for additional mounting hardware, which is ideal for compact and space-constrained designs.

This product is widely applicable across industrial automation, electronic assembly, medical instrumentation, instrumentation panels, HVAC controls, and other applications where multi-color LED backlighting and compact display modules are essential for clear visual feedback.

Equipped with 20 pins for seamless PCB soldering. LED backlight technology ensures clear and bright display illumination. Variable brightness feature allows precise control of backlight intensity. Compact width of 36 mm fits standard display modules.

Designed for EA DOGS104x-A series with integrated controller SSD1803A. Ultra-flat design with thickness of 2.0 mm without backlight, 5.8 mm including LED backlight. Supports 4-bit, 8-bit SPI and I²C interface communication.

High contrast LCD with supertwist display technology. No mounting required; can be directly soldered onto PCB board. Explore more industrial display modules and LED backlighting solutions to suit various electronics and automation requirements at EnvMart.
