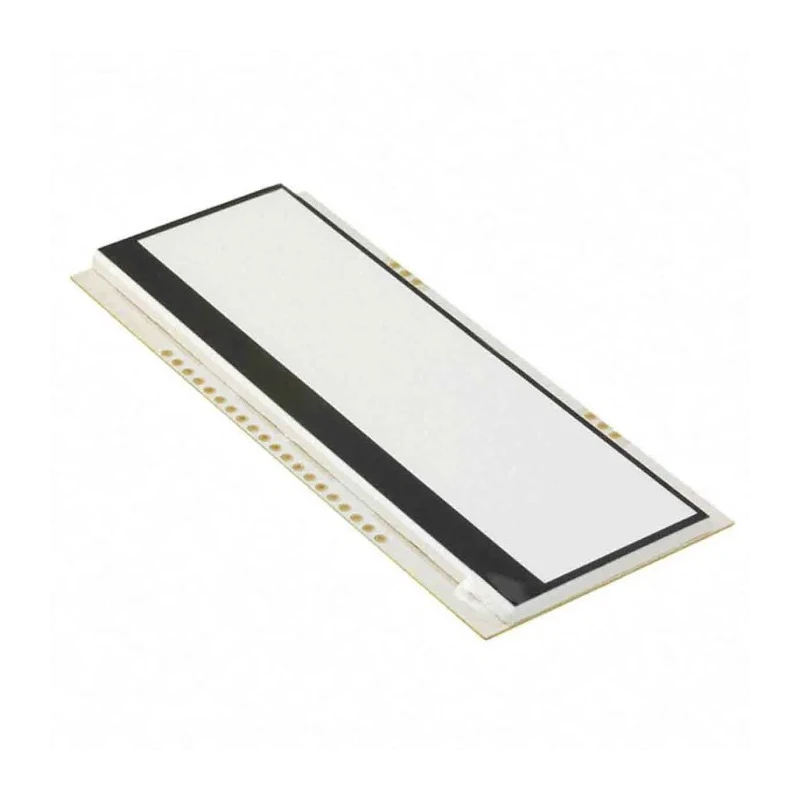

Display Visions White Display Backlight LED Display Backlight for EA DOGS104x-A Series EA LED94x40-W

Free Delivery in India | Lowest Global Shipping Charges

Display Visions White Display Backlight LED Display Backlight for EA DOGS104x-A Series EA LED94x40-W

Name: Display Visions White Display Backlight LED Display Backlight for EA DOGS104x-A Series EA LED94x40-W
Brand: Display Visions
SKU: 162291
Price: 52.67 USD
Availability: InStock



Category Display Backlighting Brand Display Visions Condition New

Specifications

Country of Origin	China
Brand	Display Visions
Height	40mm
Model	EA LED94x40-W
Width	3mm
Series	EA DOGS104x-A
Backlight Type	LED
Backlight Colours	White

Key Features

This module is designed for EA DOGS104x-A series displays and operates on 3.3 V systems.
Compact dimensions of 66 x 40 mm and height of 5.8 mm including the LED backlight.
Features high contrast LCD supertwist display technology with a 15 μm dot gap for crisp visuals.
Includes LED backlighting with intensity adjustable from 10 to 150 mA.
No additional mounting hardware required, can be directly soldered onto PCB for easy installation.
Supports 4-bit and 8-bit SPI and I²C interface for flexible control options.
Controller UC1611 integrated with graphic RAM enhances display functionality.
Manufactured in China ensuring quality and reliability of electronic components.

Product Description

Display Visions EA LED94x40-W is an advanced white LED display backlight designed specifically for the EA DOGS104x-A series. This backlight module features a compact and ultra-flat design measuring 66 x 40 mm with a maximum thickness of 5.8 mm including the LED illumination. It is engineered to operate efficiently on 3.3 V systems without the need for auxiliary power, making it highly suitable for embedded electronic applications.

The display includes high contrast LCD supertwist technology providing clear sharp images with a 15-micron dot gap. The LED backlight intensity can be adjusted across a range from 10 to 150 mA, enabling optimal brightness control suited for various environmental conditions. Integration is simplified as the unit can be soldered directly onto the printed circuit board, eliminating the need for additional mechanical mounting components.

Connectivity is versatile with support for 4-bit and 8-bit SPI and I²C interfaces, allowing easy integration with embedded controllers. The incorporated controller UC1611 comes with integrated graphic RAM, enhancing the display’s graphical capabilities and responsiveness.

These features make the EA LED94x40-W an ideal choice for electronic devices where display clarity and compact form factor are essential, such as industrial control panels, medical instruments, or portable devices. The module’s precise engineering and quality manufacturing in China ensure consistent performance and long-term durability.

This product is designed for industrial and embedded system applications requiring high reliability. Compact, ultra-flat size enhances device design flexibility. Integrated graphic RAM controller delivers enhanced display functionality.

Adjustable LED backlighting provides optimal visual comfort and readability. Direct PCB soldering simplifies assembly and reduces production costs. Explore more options in Display Backlighting and LED modules at EnvMart for your industrial and electronic component needs.
